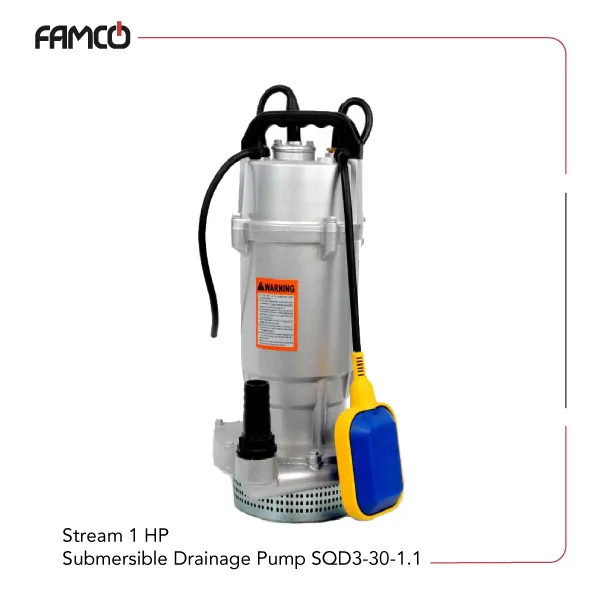

Stream 1 HP Submersible Drainage Pump SQD3-30-1.1 Specifications
This model is designed with an aluminum pump body, helping reduce overall weight while maintaining adequate strength for submerged operation. Hydraulic performance is supported by a cast iron impeller, selected for its ability to handle continuous water movement under load. The rotating components are stabilized by a stainless steel shaft, ensuring consistent operation over extended run times. Sealing is managed through a graphite and ceramic mechanical seal, intended to limit leakage and maintain performance in submerged conditions. The Stream submersible pump SQD3-30-1.1 is rated for liquid temperatures up to 40°C and operates on a single-phase electrical supply at 50 Hz, a compatible configuration for standard installations. With a maximum flow capacity of 10 m³/h and a delivery head of 24 meters, it supports steady drainage and water transfer tasks. The 1-inch discharge outlet of this Stream drainage pump provides controlled flow, while the 5 mm solid passage allows small particles to pass without disruption. The pump can be supplied with or without a float switch, allowing flexibility between automatic and manual operation.
| Specification | Value |
|---|---|
| Brand | Stream |
| Model | SQD3-30-1.1 |
| Power | 0.75 kW (1 HP) |
| Phase | Single-phase |
| Frequency | 50 Hz |
| Max Flow Rate | 10 m³/h (≈167 L/min) |
| Max Delivery Head | 24 m |
| Outlet Size | 1 inch |
| Solid Passage | 5 mm |
| Body Material | Aluminum |
| Impeller | Cast iron |
| Shaft | Stainless steel |
| Mechanical Seal | Graphite / Ceramic |
| Max Liquid Temperature | 40 °C |
| Float Switch | With or without |
Stream 1 HP Submersible Drainage Pump SQD3-30-1.1 Applications
- Drainage of clean and lightly contaminated water
- Water transfer from wells
- Garden and irrigation systems
- Tank and pool emptying
Stream 1 HP Submersible Drainage Pump SQD3-30-1.1 Benefits
- Aluminum body keeps the pump lightweight
- Cast iron impeller supports continuous hydraulic load
- Suitable flow capacity for drainage tasks
- Optional float switch enables automatic operation
