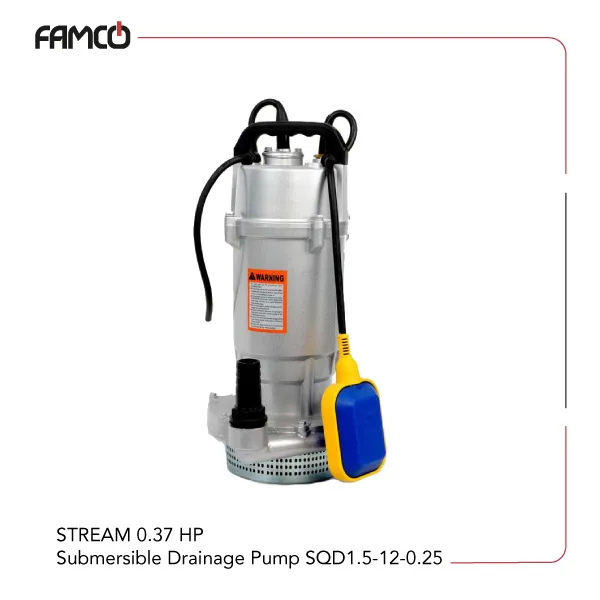

Stream 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25 Specifications
The STREAM SQD1.5-12-0.25 is a compact submersible drainage pump designed around a 0.25 kW (0.37 HP) single-phase motor operating at 220 V and 50 Hz. It delivers a maximum flow rate of 5 m³/h (≈83 L/min) with a head reaching 13 meters, making it suitable for light drainage and water transfer tasks where moderate pressure is required. The pump is fitted with a 1-inch outlet and allows a 5 mm solid passage, enabling it to handle lightly contaminated water without difficulty. Its construction focuses on durability and corrosion resistance. The pump body is made of aluminum, keeping the overall weight low while maintaining structural strength. A cast aluminum impeller supports stable hydraulic performance, while the stainless steel shaft placed inside this Stream submersible pump ensures mechanical stability during continuous operation. Sealing is handled by a graphite and ceramic mechanical seal, designed for submerged conditions and consistent performance.
The Stream drainage pump is rated for liquid temperatures up to 40°C and can be supplied with or without a float switch, allowing flexibility between manual control and automatic level-based operation.
| Specification | Value |
|---|---|
| Brand | STREAM |
| Model | SQD1.5-12-0.25 |
| Power | 0.25 kW (0.37 HP) |
| Voltage | 220 V |
| Phase | Single-phase |
| Frequency | 50 Hz |
| Max Flow Rate | 5 m³/h |
| Max Head | 13 m |
| Outlet Size | 1 inch |
| Solid Passage | 5 mm |
| Body Material | Aluminum |
| Impeller Material | Cast aluminum |
| Shaft | Stainless steel |
| Mechanical Seal | Graphite / Ceramic |
| Max Liquid Temperature | 40 °C |
| Float Switch | With or without |
Stream 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25 Applications
- Draining and circulating water in swimming pools
- Water extraction from shallow wells
- Garden watering and small irrigation systems
- Light domestic drainage tasks
Stream 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25 Benefits
- Lightweight aluminum construction simplifies handling and installation
- Suitable for clean water transfer with controlled flow requirements
- Compatible with standard single-phase power supply
- Optional float switch enables automatic level-based operation
Stream 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25 Price List
| No. | Name | Price |
| 1 | Stream 0.37 HP Submersible Drainage Pump SQD1.5-12-0.25 Price | Contact us |
