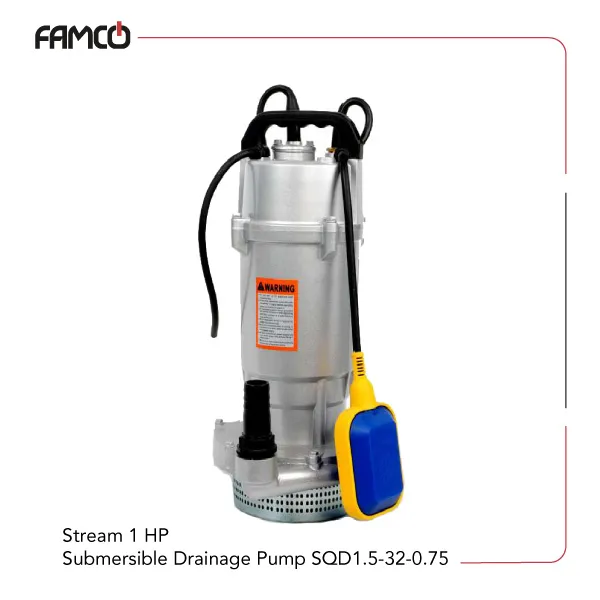

Stream 1 HP Submersible Drainage Pump SQD1.5-32-0.75 Specifications
This model is built around a compact aluminum body that keeps the pump lightweight while maintaining structural integrity for submerged operation. Water movement is handled by a cast iron impeller, selected for its resistance to wear under continuous hydraulic load. The rotating assembly is supported by a stainless steel shaft. Using all these unique materials contributes to the Stream submersible pumps’ lasting design. Sealing is provided by a graphite and ceramic mechanical seal, designed to withstand immersion and reduce leakage over time. The Stream drainage pump runs on a single-phase power supply at 50 Hz and is rated for liquid temperatures up to 40°C, aligning with standard drainage conditions. Hydraulic performance reaches 8 m³/h in flow capacity and 32 meters in delivery head. A 1-inch discharge supports stable output, while the 5 mm solid passage enables passage of small particles. The pump can be supplied with or without a float switch, offering flexibility between automatic and manual operation.
| Specification | Value |
|---|---|
| Brand | Stream |
| Model | SQD1.5-32-0.75 |
| Power | 0.75 kW (1 HP) |
| Phase | Single-phase |
| Frequency | 50 Hz |
| Max Flow Rate | 8 m³/h (≈133 L/min) |
| Max Delivery Head | 32 m |
| Outlet Size | 1 inch |
| Solid Passage | 5 mm |
| Body Material | Aluminum |
| Impeller | Cast iron |
| Shaft | Stainless steel |
| Mechanical Seal | Graphite / Ceramic |
| Max Liquid Temperature | 40 °C |
| Float Switch | With or without |
Stream 1 HP Submersible Drainage Pump SQD1.5-32-0.75 Applications
- Drainage of clean or lightly contaminated water
- Water extraction from wells
- Garden and landscape irrigation
- Pool and tank water removal
Stream 1 HP Submersible Drainage Pump SQD1.5-32-0.75 Benefits
- Aluminum body reduces overall pump weight
- Cast iron impeller supports stable hydraulic performance
- High delivery head for vertical water lifting
- Optional float switch allows automatic level control
Stream 1 HP Submersible Drainage Pump SQD1.5-32-0.75 Price List
| No. | Name | Price |
| 1 | Stream 1 HP Submersible Drainage Pump SQD1.5-32-0.75 Price | Contact us |
