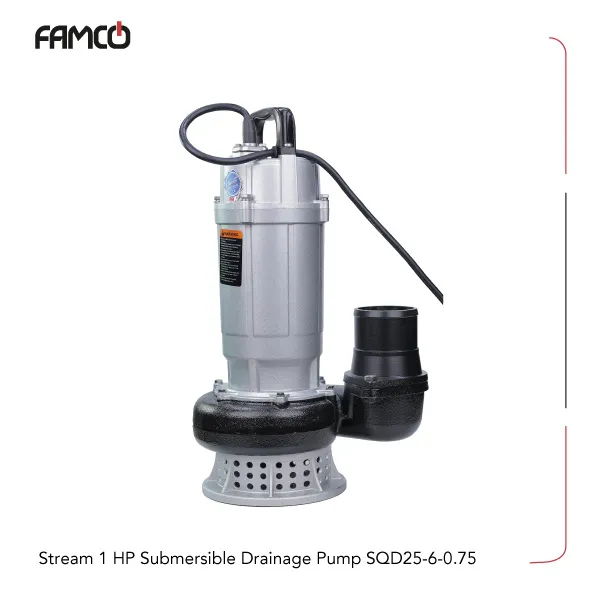

Stream 1 HP Submersible Drainage Pump SQD25-6-0.75 Specifications
This pump features a power output of 0.75 kW, equivalent to 1 HP, making it suitable for various water transfer tasks. It can handle a maximum flow rate of 35 cubic meters per hour, which is ideal for medium to large-scale applications. The maximum delivery head is 10 meters, allowing it to lift water efficiently over considerable heights. The outlet size is 3 inches, ensuring compatibility with standard piping systems. This Stream submersible pump has a solid passage of 5 mm, so it can easily pass small solids without clogging. Made of all sturdy materials, this Stream drainage pump has its body made from durable aluminum, providing a lightweight structure. The impeller is cast aluminum, designed for efficient water movement. Its mechanical seal is composed of graphite and ceramic materials, offering reliable sealing and longevity. The shaft is made of stainless steel, ensuring corrosion resistance and durability. It can operate with liquids up to 40°C, suitable for typical water applications. The pump is single-phase and runs at a frequency of 50 Hz, making it compatible with standard electrical supplies. Additionally, a float switch is included for automatic operation and water level control, enhancing convenience and safety during use.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Max. flow rate (m3/h) | 35 |
| Max. delivery head (m) | 10 |
| Outlet (inch) | 3 |
| Solid passage (mm) | 5 |
| Pump body | aluminum |
| Impeller | cast aluminum |
| Mechanical seal | graphite/ceramic |
| Shaft | stainless steel |
| Maximum liquid temperature (°C) | 40 |
| Single-phase | True |
| Frequency (Hz) | 50 |
| Float switch | included |
Stream 1 HP Submersible Drainage Pump SQD25-6-0.75 Applications
- Irrigation systems in agriculture
- Drainage of flooded areas
- Water transfer in industrial processes
- Domestic water supply and pumping
Stream 1 HP Submersible Drainage Pump SQD25-6-0.75 Benefits
- High efficiency with a powerful 1 HP motor
- Durable aluminum construction for long-lasting use
- Automatic operation with included float switch
- Capable of handling solids up to 5 mm
Stream 1 HP Submersible Drainage Pump SQD25-6-0.75 Price List
| No. | Name | Price |
| 1 | Stream 1 HP Submersible Drainage Pump SQD25-6-0.75 Price | Contact us |
