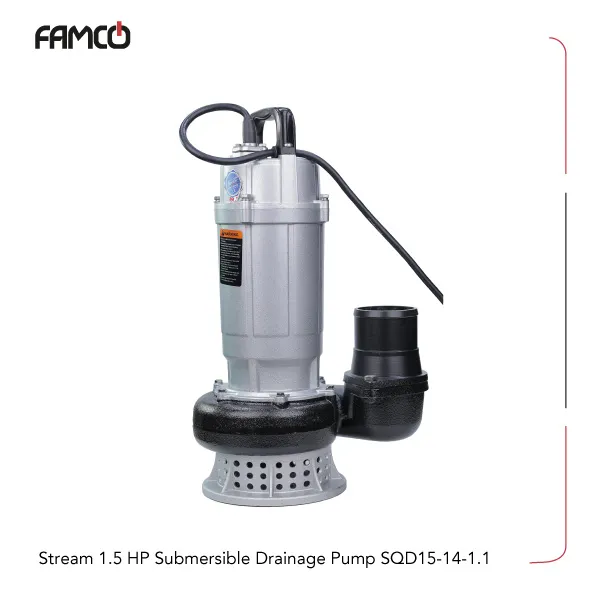

Stream 1.5 HP Submersible Drainage Pump SQD15-14-1.1 Specifications
This pump features a power output of 1.1 kW (1.5 HP), making it suitable for various water transfer tasks. It can handle a maximum flow rate of 29 cubic meters per hour, providing efficient water movement. The maximum delivery head is 17 meters, allowing it to lift water to considerable heights. The outlet size is 2 1/2 inches, compatible with standard piping. It has a solid passage of 5 mm, enabling it to pass small solids without clogging. Everything in this Stream submersible pump points to a single design goal, making a lightweight pump that performs even under heavy loads. The pump body is made of durable aluminum. The impeller is cast aluminum, designed for durability and smooth operation. The mechanical seal is made of graphite and ceramic, providing this Stream drainage pump with reliable sealing and longevity. The shaft is constructed from stainless steel, resistant to corrosion. It can operate with liquids up to 40°C and runs on a single-phase power supply at 50 Hz. A float switch is included for automatic operation and water level control.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. flow rate (m3/h) | 29 |
| Max. delivery head (m) | 17 |
| Outlet (inch) | 2 1/2 |
| Solid passage (mm) | 5 |
| Pump body | aluminum |
| Impeller | cast aluminum |
| Mechanical seal | graphite/ceramic |
| Shaft | stainless steel |
| Maximum liquid temperature | 40 C |
| Single-phase | Yes |
| Frequency | 50 Hz |
| Float switch | Included |
Stream 1.5 HP Submersible Drainage Pump SQD15-14-1.1 Applications
- Irrigation systems in agriculture
- Drainage and water removal
- Water supply for residential or commercial buildings
- Industrial fluid transfer tasks
Stream 1.5 HP Submersible Drainage Pump SQD15-14-1.1 Benefits
- Lightweight aluminum construction for easy handling
- High flow rate with efficient water movement
- Durable cast aluminum impeller and stainless steel shaft
- Automatic operation with included float switch
Stream 1.5 HP Submersible Drainage Pump SQD15-14-1.1 Price List
| No. | Name | Price |
| 1 | Stream 1.5 HP Submersible Drainage Pump SQD15-14-1.1 Price | Contact us |
