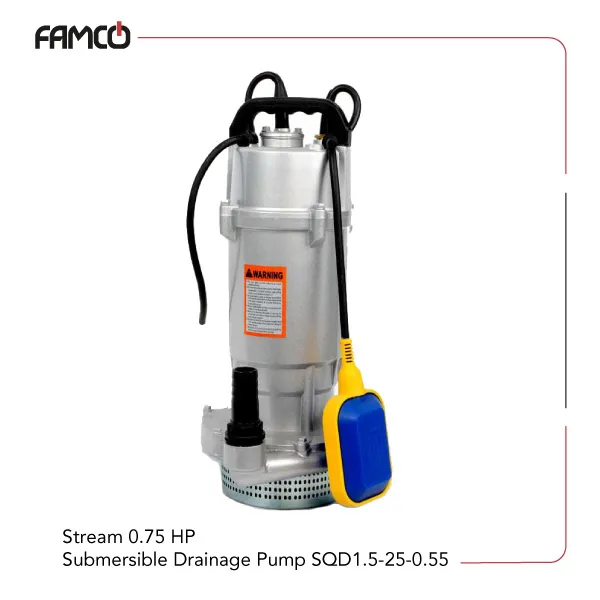

Stream 0.75 HP Submersible Drainage Pump SQD1.5-25-0.55 Specifications
This drainage pump is built with an aluminum body that keeps the unit lightweight while remaining suitable for continuous submersible use. Water movement of this Stream submersible pump is handled by a cast aluminum impeller, chosen to maintain consistent flow in clean and lightly filtered water applications. The shaft is manufactured from stainless steel, making it corrosion-resistant during prolonged exposure to moisture. Even under submerged conditions, its sealing integrity is maintained using graphite and ceramic mechanical seals. The Stream submersible pump operates on a single-phase power supply at 50 Hz and is designed to handle liquids with temperatures of up to 40°C. Performance is defined by a balance between flow and head, with 5 cubic meters per hour delivered up to 25 meters vertically. The 1-inch discharge supports controlled water delivery, while the 5 mm solid passage limits usage to clean drainage applications. An optional floater is available, enabling this Stream drainage pump to operate automatically based on water level when required.
| Specification | Value |
|---|---|
| Brand | STREAM |
| Model | SQD1.5-25-0.55 |
| Power | 0.55 kW (0.75 HP) |
| Phase | Single-phase |
| Frequency | 50 Hz |
| Max Flow Rate | 5 m³/h |
| Max Delivery Head | 25 m |
| Outlet Size | 1 inch |
| Solid Passage | 5 mm |
| Body Material | Aluminum |
| Impeller Material | Cast aluminum |
| Shaft | Stainless steel |
| Mechanical Seal | Graphite / Ceramic |
| Max Liquid Temperature | 40 °C |
| Floater | With or without |
Stream 0.75 HP Submersible Drainage Pump SQD1.5-25-0.55 Applications
- Water drainage and circulation in swimming pools
- Supplying water from shallow wells
- Garden irrigation and landscaping systems
- Clean water transfer in residential environments
Stream 0.75 HP Submersible Drainage Pump SQD1.5-25-0.55 Benefits
- Compact aluminum construction simplifies handling and installation
- Balanced flow and head for clean water drainage tasks
- Stainless steel shaft improves resistance to corrosion
- Optional floater allows automatic on/off operation
Stream 0.75 HP Submersible Drainage Pump SQD1.5-25-0.55 Price List
| No. | Name | Price |
| 1 | Stream 0.75 HP Submersible Drainage Pump SQD1.5-25-0.55 Price | Contact us |
