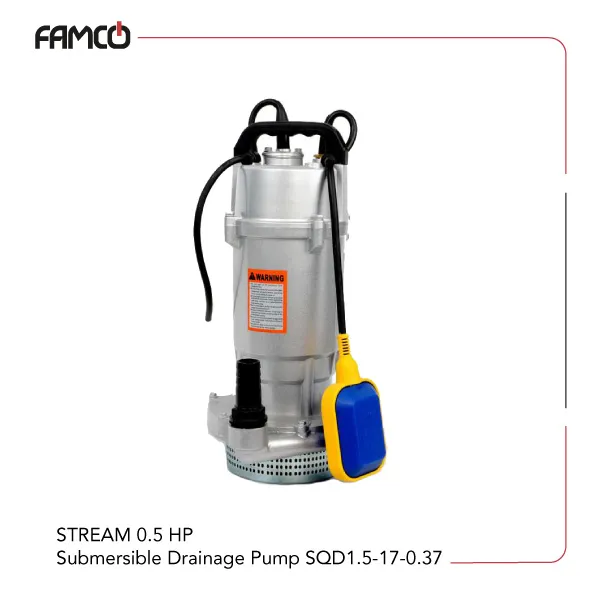

Stream 0.5 HP Submersible Drainage Pump SQD1.5-17-0.37 Specifications
Designed for controlled drainage and water supply duties, this pump features an aluminum body that keeps the overall structure lightweight while remaining suitable for submerged operation. Water movement is handled by a cast aluminum impeller, chosen to maintain steady flow in clean water conditions. The stainless steel shaft adds resistance to corrosion during continuous contact with water in this Stream drainage pump, while the graphite and ceramic mechanical seal helps maintain sealing integrity during operation. The pump is built to handle liquid temperatures of up to 40°C, which aligns with typical pool, well, and irrigation water conditions. It operates on a single-phase 220 V electrical supply at 50 Hz, allowing easy connection to standard power sources. Performance is defined by a maximum flow rate of 100 l/min and a delivery head of 18 meters, making a suitable Stream submersible pump out of this product for shallow wells, swimming pools, and garden irrigation systems. The 5 mm solid passage limits use to clean water applications. An optional float switch is available to enable automatic start and stop based on water level.
| Specification | Value |
|---|---|
| Brand | STREAM |
| Model | SQD1.5-17-0.37 |
| Power | 0.37 kW (0.5 HP) |
| Voltage | 220 V |
| Phase | Single-phase |
| Frequency | 50 Hz |
| Max Flow Rate | 6 m³/h |
| Max Flow Rate | 100 l/min |
| Max Head | 18 m |
| Outlet Size | 1 inch |
| Solid Passage | 5 mm |
| Body Material | Aluminum |
| Impeller Material | Cast aluminum |
| Shaft | Stainless steel |
| Mechanical Seal | Graphite / Ceramic |
| Max Liquid Temperature | 40 °C |
| Float Switch | With or without |
Stream 0.5 HP Submersible Drainage Pump SQD1.5-17-0.37 Applications
- Water circulation and drainage in swimming pools
- Supplying water from shallow wells
- Garden watering and small irrigation setups
- Domestic clean water drainage tasks
Stream 0.5 HP Submersible Drainage Pump SQD1.5-17-0.37 Benefits
- Lightweight aluminum body simplifies installation and handling
- Suitable for clean water transfer with moderate head requirements
- Operates on standard single-phase household power
- Optional float switch allows automatic water level control
Stream 0.5 HP Submersible Drainage Pump SQD1.5-17-0.37 Price List
| No. | Name | Price |
| 1 | Stream 0.5 HP Submersible Drainage Pump SQD1.5-17-0.37 Price | Contact us |
