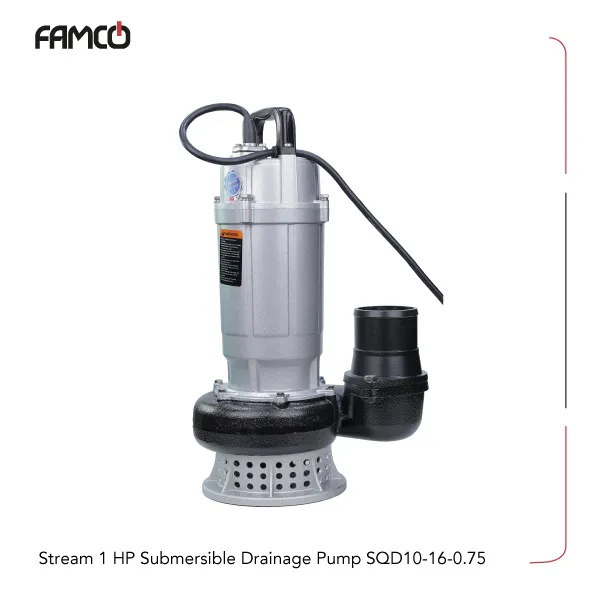

Stream 1 HP Submersible Drainage Pump SQD10-16-0.75 Specifications
This pump features a power output of 0.75 kW, equivalent to 1 HP, making the SQD10-16-0.75 suitable for various water transfer tasks. It can handle a maximum flow rate of 15 cubic meters per hour, providing efficient water movement. The maximum delivery head is 20 meters, allowing it to lift water over considerable heights. The outlet size is 1 1/2 inches, compatible with standard fittings. It has a solid passage of 5 mm, enabling it to pass small solids without clogging. The pump body is made of durable aluminum, ensuring lightweight yet sturdy construction. The impeller placed inside this Stream drainage pump is cast aluminum, designed for durability and smooth operation. The mechanical seal is made of graphite and ceramic, a sturdy choice of material in this scale. The shaft is crafted from stainless steel, resistant to corrosion. It operates at a maximum liquid temperature of 40°C, suitable for typical water applications. The pump is single-phase and runs on a 50 Hz frequency, making the presented SQD series Stream submersible pump compatible with standard electrical systems. Additionally, a float switch is included for automatic operation and water level control.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Max. flow rate (m³/h) | 15 |
| Max. delivery head (m) | 20 |
| Outlet (inch) | 1 1/2 |
| Solid passage (mm) | 5 |
| Pump body | aluminum |
| Impeller | cast aluminum |
| Mechanical seal | graphite/ceramic |
| Shaft | stainless steel |
| Maximum liquid temperature | 40 °C |
| Single-phase | Yes |
| Frequency | 50 Hz |
| Float switch | included |
Stream 1 HP Submersible Drainage Pump SQD10-16-0.75 Applications
- Water transfer in residential settings
- Irrigation for small farms or gardens
- Drainage of flooded areas
- Industrial fluid handling
Stream 1 HP Submersible Drainage Pump SQD10-16-0.75 Benefits
- Lightweight aluminum construction for easy handling
- Reliable mechanical seal for long-lasting performance
- Automatic operation with included float switch
- Capable of passing small solids up to 5 mm
Stream 1 HP Submersible Drainage Pump SQD10-16-0.75 Price List
| No. | Name | Price |
| 1 | Stream 1 HP Submersible Drainage Pump SQD10-16-0.75 Price | Contact us |
