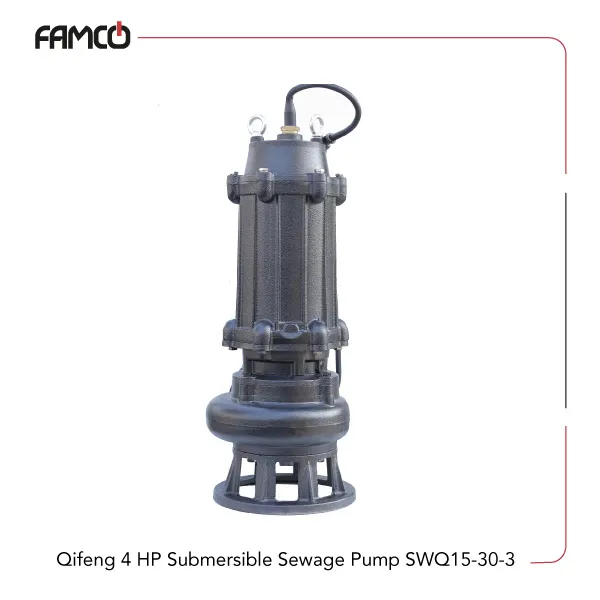

Qifeng 4 HP Submersible Sewage Pump SWQ15-30-3 Specifications
The Qifeng SWQ15-30-3 is a 4 HP (3 kW) three-phase submersible sewage pump has the capacity to send up wastewater to higher elevations. It provides a maximum flow of 15 m³/h while reaching a delivery head of 30 m, filling the gap between medium-lift and high-lift sewage applications. A 2-inch discharge and 30 mm solid passage allow wastewater with suspended solids to move through the pump without narrowing the flow path. The Qifeng sewage pump is built with cast iron pump and motor housings and a cast iron impeller, combined with a 304 stainless steel shaft and a graphite/ceramic mechanical seal. Compared to lower-head models with similar flow, this Qifeng submersible pump offers greater vertical reach while maintaining the same discharge capacity, which is useful in deeper pits or longer discharge lines.
| Specification | Value |
|---|---|
| Brand | Qifeng |
| Model | SWQ15-30-3 |
| Power | 3 kW (4 HP) |
| Phase | Three-phase |
| Frequency | 50 Hz |
| Max Flow Rate | 15 m³/h |
| Max Delivery Head | 30 m |
| Outlet Size | 2 inch |
| Solid Passage | 30 mm |
| Pump Housing | Cast iron |
| Motor Housing | Cast iron |
| Impeller | Cast iron |
| Shaft | Stainless steel 304 |
| Mechanical Seal | Graphite / Ceramic |
| Max Liquid Temperature | 40 °C |
| Float Switch | With or without |
Qifeng 4 HP Submersible Sewage Pump SWQ15-30-3 Applications
- Sewage pumping stations in hotels and large residential buildings
- Wastewater discharge systems in hospitals and public facilities
- Industrial sewage handling with moderate lift requirements
- Drainage and effluent removal in mining and underground sites
Qifeng 4 HP Submersible Sewage Pump SWQ15-30-3 Benefits
- Higher delivery head without sacrificing flow volume
- Three-phase motor suits continuous-duty sewage systems
- Wide solid passage supports wastewater with suspended particles
- Optional float switch allows automatic start and stop control
Qifeng 4 HP Submersible Sewage Pump SWQ15-30-3 Price List
| No. | Name | Price |
| 1 | Qifeng 4 HP Submersible Sewage Pump SWQ15-30-3 Price | Contact us |
