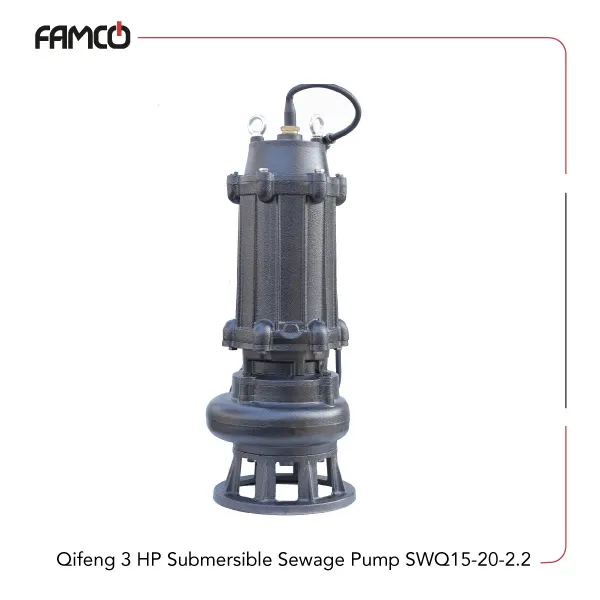

Qifeng 3 HP Submersible Sewage Pump SWQ15-20-2.2

Qifeng 3 HP Submersible Sewage Pump SWQ15-20-2.2 Specifications

Driven by a 2.2 kW (3 HP) three-phase motor at 50 Hz, this submersible pump can deliver a maximum flow rate of 15 m³/h with a maximum delivery head of 20 m. Its 2-inch outlet supports efficient discharge, while a 30 mm solid passage allows easy handling of wastewater containing suspended solids. This way the chances clogging during continuous operation reduces. The SWQ-series Qifeng submersible pump features a cast iron pump housing and motor housing, materials that give pumps the ability to withstand abrasive environments. A cast iron impeller ensures stable hydraulic performance over extended use, while the stainless steel 304 shaft adds resistance to corrosion and mechanical wear. Sealing is managed by a graphite/ceramic mechanical seal, a proven combination for sewage applications that demand consistent sealing under fluctuating loads. The Qifeng sewage pump SWQ15-20-2.2 is designed to handle liquids up to 40 °C, covering most standard sewage and wastewater transfer conditions.

Qifeng 3 HP Submersible Sewage Pump SWQ15-20-2.2 Applications

• Sewage transfer in hotels and residential buildings
• Wastewater systems in hospitals and institutional facilities
• Industrial effluent movement where higher flow is required
• Drainage and sewage handling in mining environments

Qifeng 3 HP Submersible Sewage Pump SWQ15-20-2.2 Benefits

• Higher flow rate supports faster wastewater removal
• Three-phase power supply improves consistency during extended operation
• All–cast iron construction suits abrasive sewage conditions
• Optional float switch allows automatic operation based on liquid level
