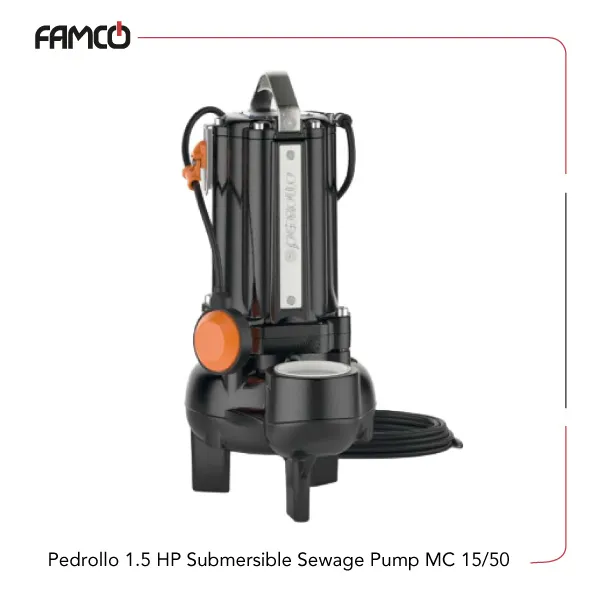

Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50 Specifications
This pump takes advantage of a durable cast iron body and a high-quality two-channel impeller made from micro-cast AISI 304 stainless steel, ensuring corrosion resistance and longevity. It is equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, ceramic, graphite, and NBR materials for reliable sealing and minimal leakage. Operating at approximately 2900 RPM, this Pedrollo submersible pump delivers a flow rate of 1100 liters per minute and a head of 16 meters. This way, you can use this Pedrollo submersible pump for different usages. The Pedrollo sewage pump MC series 15/50 supports both single-phase and three-phase power supplies, with voltages of 230V and 400V, respectively. Its weight is 42 kg for single-phase and 40 kg for three-phase models, making this Pedrollo sewage pump relatively lightweight for its capacity.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | Two-channel type in micro-cast AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide/Silicon carbide/NBR |
| Double mechanical seal on motor side | Ceramic / Graphite / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 16 |
| Flow rate (l/min) | 1100 |
| Voltage (V) | 230, 400 (single and three-phase) |
| Weight (kg) | 42 (single-phase), 40 (three-phase) |

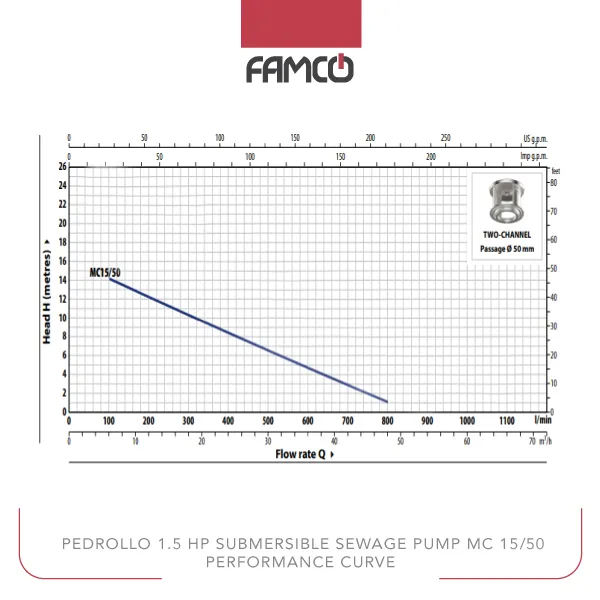

Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| H metres | 16 | 14 | 12.5 | 10.5 | 8.5 | 6.5 | 4.5 | 3 | 1 |
Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||||
| a | b | c | h | h1 | d | 1~ | 3~ |
| 162 | 119 | 212 | 487 | 167 | 242 | 42 | 40 |
Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50 Applications
- Irrigation systems in agriculture
- Industrial fluid transfer
- Water supply for commercial buildings
- Cooling systems in manufacturing plants
Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50 Benefits
- High corrosion resistance with stainless steel impeller
- Reliable double sealing system prevents leaks
- Flexible power options for various setups
- Durable cast iron construction ensures long life
Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50 Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50 Price | Contact us |
