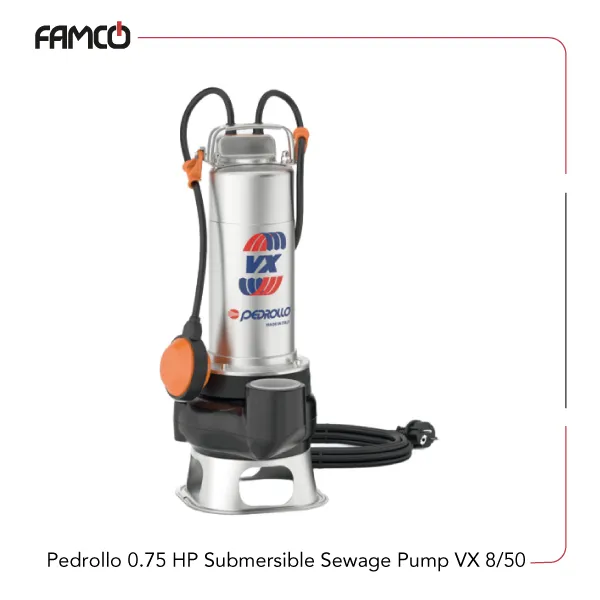

Pedrollo 0.75 HP Submersible Sewage Pump VX 8/50 Specifications
This pump features a durable cast iron body and a VORTEX impeller made from high-quality AISI 304 stainless steel, ensuring resistance to corrosion and efficient handling of various liquids. This pumping solution is well-equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, graphite, and NBR materials for enhanced durability and leak prevention. Operating at approximately 2900 rpm, this Pedrollo submersible pump delivers 0.55 kW (0.75 HP) of power, capable of generating a head of 6.5 meters and a flow rate of 450 liters per minute. The Pedrollo sewage pump VX 8/50S supports both single-phase and three-phase power supplies, with voltages of 230V and 400V respectively, and operates at a frequency of 50 Hz. Its weight varies slightly depending on the phase: 14.2 kg for single-phase and 13.1 kg for three-phase models. The pump can handle liquids at temperatures up to +40°C and can be immersed up to 5 meters deep. It features a Class F insulation system for safety and efficiency, along with an IP X8 protection rating, making it suitable for continuous submersion in water and harsh environments.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | VORTEX type in AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide / Graphite / NBR |
| Double mechanical seal on motor side | Silicon carbide / Silicon carbide / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 6.5 |
| Flow rate (l/min) | 450 |
| Voltage (V) | 230, 400 |
| Frequency (Hz) | 50 |
| Weight (kg) | Single-phase: 14.2, Three-phase: 13.1 |
| Max. Liquid temperature (°C) | +40 °C |
| Max. immersion depth (m) | 5 |
| Insulation | Class F |
| Protection | IP X8 |

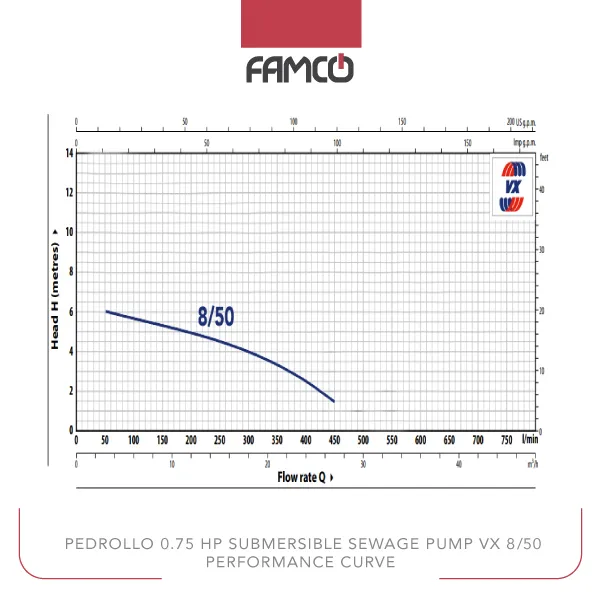

Pedrollo 0.75 HP Submersible Sewage Pump VX 8/50 Performance Curve
| m³/h | 0 | 3 | 6 | 12 | 18 | 24 | 27 |
| l/min | 0 | 50 | 100 | 200 | 300 | 400 | 450 |
| H metres | 6.5 | 6 | 5.8 | 5 | 4 | 2.5 | 1.5 |
Pedrollo 0.75 HP Submersible Sewage Pump VX 8/50 Applications
- Wastewater and sewage pumping
- Industrial water transfer
- Drainage systems
- Flood control and water removal
Pedrollo 0.75 HP Submersible Sewage Pump VX 8/50 Benefits
- Durable cast iron construction for long-lasting use
- Corrosion-resistant stainless steel impeller
- Double mechanical seals for leak prevention
- Suitable for continuous submersion and harsh environments
Pedrollo 0.75 HP Submersible Sewage Pump VX 8/50 Price List
| No. | Name | Price |
| 1 | Pedrollo 0.75 HP Submersible Sewage Pump VX 8/50 Price | Contact us |
