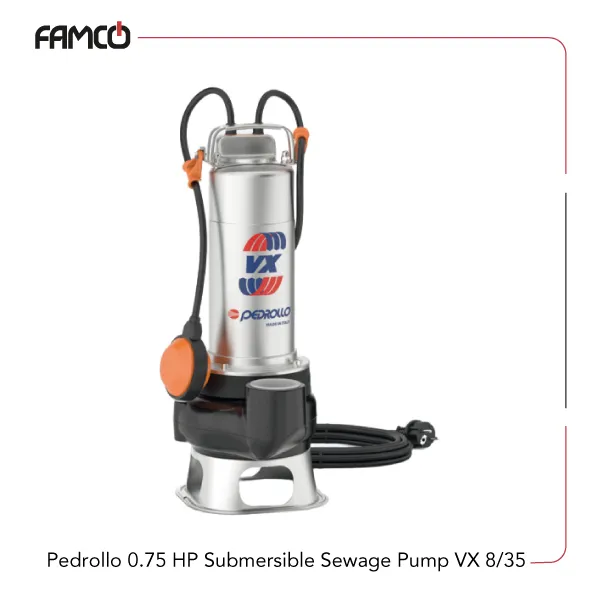

Pedrollo 0.75 HP Submersible Sewage Pump VX 8/35 Specifications
This pump features a durable cast iron body and a VORTEX impeller made from high-quality AISI 304 stainless steel, ensuring corrosion resistance and efficient handling of various liquids. It is equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, graphite, and NBR materials for enhanced durability and leak prevention. Operating at approximately 2900 rpm, the Pedrollo sewage pump delivers a flow rate of 600 liters per minute and a head of 9 meters, making it suitable for applications requiring moderate pressure and flow. It supports both single-phase and three-phase power supplies, with voltages of 230V and 400V, respectively, and operates at a frequency of 50Hz. The device weighs 13.7 kg in single-phase and 12.6 kg in three-phase configurations, offering portability and ease of installation. This Pedrollo submersible pump can handle liquids up to 40°C and can be immersed up to 5 meters deep. The pump’s insulation class is F, providing good thermal resistance, and it features an IP X8 protection rating, ensuring safety against water ingress in demanding environments.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | VORTEX type in AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide / Graphite / NBR |
| Double mechanical seal on motor side | Silicon carbide / Silicon carbide / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 9 |
| Flow rate (l/min) | 600 |
| Voltage (V) | 230, 400 |
| Frequency (Hz) | 50 |
| Weight (kg) | 13.7 (single-phase), 12.6 (three-phase) |
| Max Liquid temperature (°C) | +40 °C |
| Max immersion depth (m) | 5 |
| Insulation | Class F |
| Protection | IP X8 |

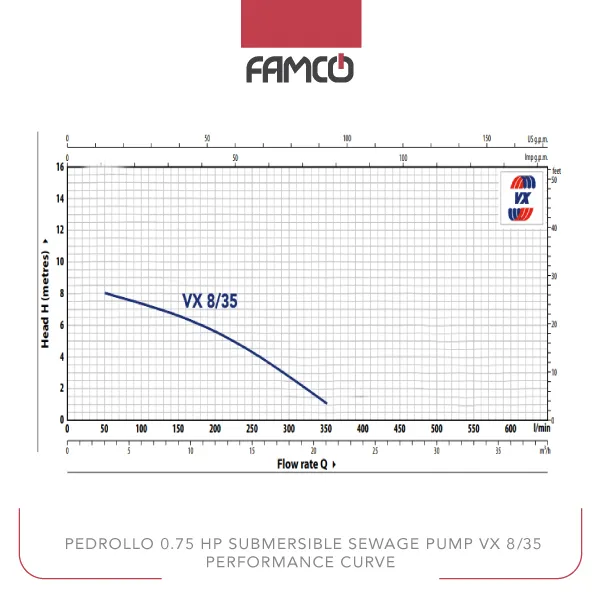

Pedrollo 0.75 HP Submersible Sewage Pump VX 8/35 Performance Data
| m³/h | 0 | 3 | 6 | 12 | 18 | 21 |
| l/min | 0 | 50 | 100 | 200 | 300 | 350 |
| H metres | 9 | 8 | 7.5 | 5.5 | 2.7 | 1 |
Pedrollo 0.75 HP Submersible Sewage Pump VX 8/35 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |||||||
| a | b | c | f | h | h1 | d | 1~ | 3~ |
| 115 | 95 | 148 | 200 | 425 | 158 | 55 | 13.7 | 12.6 |
Pedrollo 0.75 HP Submersible Sewage Pump VX 8/35 Applications
- Irrigation systems in agriculture
- Drainage and wastewater management
- Industrial fluid transfer
- Water supply and circulation
Pedrollo 0.75 HP Submersible Sewage Pump VX 8/35 Benefits
- Durable cast iron construction for long-lasting use
- Corrosion-resistant stainless steel impeller
- Double mechanical seals for leak prevention
- Supports both single and three-phase power supply
Pedrollo 0.75 HP Submersible Sewage Pump VX 8/35 Price List
| No. | Name | Price |
| 1 | Pedrollo 0.75 HP Submersible Sewage Pump VX 8/35 Price | Contact us |
