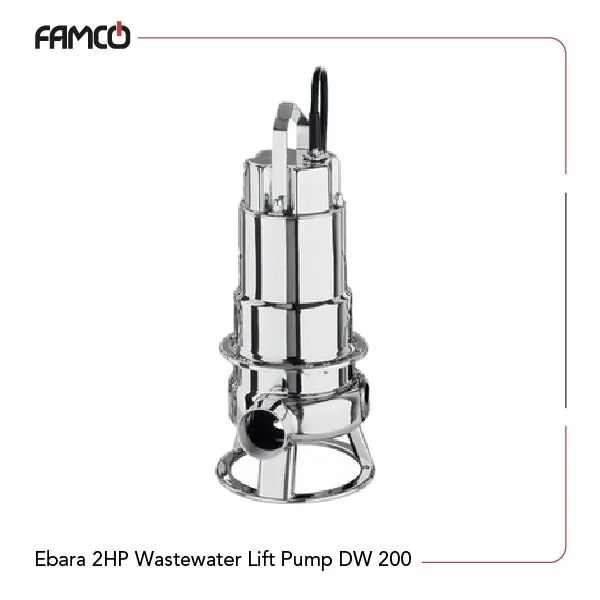

Ebara 2HP Wastewater Lift Pump DW 200 Specifications
Ebara 2HP wastewater lift pump DW 200 is designed to handle dirty and sewage water, making it ideal for various applications. This Ebara sewage pump can operate at a maximum temperature of 40°C and can handle solids up to 50 mm in size. A maximum immersion depth of 7 meters is suitable for deep installations. The pump features a rotation speed of approximately 2800 min-1 and has an insulation class of F, ensuring durability and safety. This Ebara pump has a protection degree of IP X8, which means it is well-protected against water ingress. The power output is 1.5 kW (2 HP), and it can achieve a maximum flow rate of 48 m³/h, with a head range of 3.3 to 18.2 meters. To comply with most present electrical setups, this pump operates on three-phase (400 ±10%) voltage systems.
| Specification | Value |
| Type of liquid | Dirty water, sewage water |
| Max temperature (°C) | 40 |
| Max solids size (mm) | 50 spherical |
| Maximum immersion (m) | 7 |
| No. of Poles | 2 |
| Rotation speed (min-1) | ≈ 2800 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. flow rate (m3/h) | 48 |
| Head (m) | 3.3-18.2 |
| Single-phase voltage (V) | 230 ±10% |
| Three-phase voltage (V) | 400 ±10% |
Ebara 2HP Wastewater Lift Pump DW 200 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Mechanical Shaft Seal on Pump Side : SiC/SiC/NBR
- Mechanical Shaft Seal on Motor side : Carbon/Ceramic/NBR
Ebara 2HP Wastewater Lift Pump DW 200 Technical Data
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| Head (m) | 18.2 | 16.6 | 15.0 | 13.3 | 11.4 | 9.5 | 7.5 | 5.4 | 3.3 |

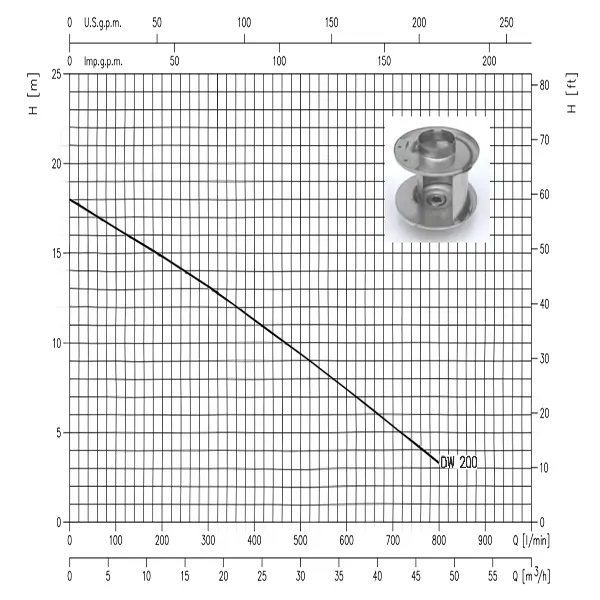

Ebara 2HP Wastewater Lift Pump DW 200 Performance Curve
Ebara 2HP Wastewater Lift Pump DW 200 Applications
- Construction site dewatering
- Wastewater treatment facilities
- Agricultural irrigation systems
- Flood control and drainage
Ebara 2HP Wastewater Lift Pump DW 200 Benefits
- Handles solids up to 50 mm, ensuring effective operation in dirty water.
- High flow rate of 48 m³/h for efficient water movement.
- Durable design with IP X8 protection for reliable use in harsh conditions.
- Versatile voltage options for compatibility with various electrical systems.
Ebara 2HP Wastewater Lift Pump DW 200 Price List
| No. | Name | Price |
| 1 | Ebara 2HP Wastewater Lift Pump DW 200 Price | Contact us |
There are no reviews yet.
