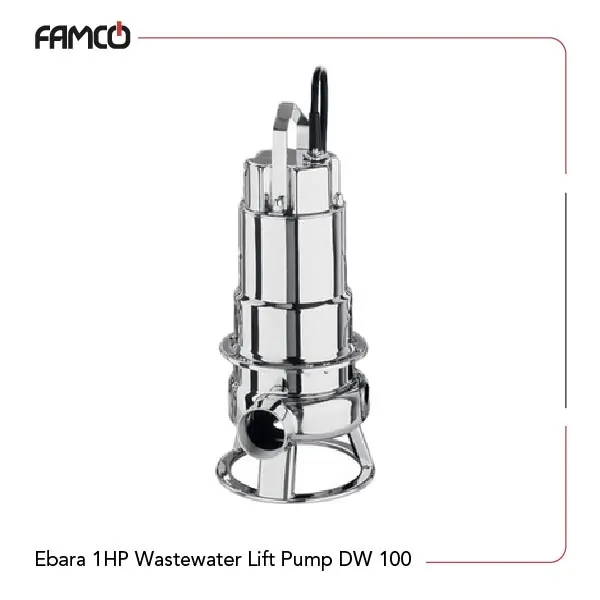

Ebara 1HP Wastewater Lift Pump DW 100 Specifications
Ebara 1HP wastewater lift pump DW 100 is designed to handle dirty and sewage water, making it ideal for various applications. It can operate at a maximum temperature of 40°C and can handle solids up to 50 mm in size. Relying on a maximum immersion depth of 7 meters, this series of Ebara sewage pumps is suitable for deep installations. The pump features a rotation speed of approximately 2800 min-1 and operates on a frequency of 50 Hz. It has a power output of 0.75 kW (1 HP) and can achieve a maximum flow rate of 36 m3/h. The head range is between 2.6 to 13.3 meters, which provides flexibility for different setups. The insulation class is rated F, ensuring durability and safety during operation. Additionally, to make this Ebara pump resistant to water ingress, this product has a protection degree of IP X8.
| Specification | Value |
| Type of liquid | Dirty water, sewage water |
| Max temperature (°C) | 40 |
| Max solids size (mm) | 50 spherical |
| Maximum immersion (m) | 7 |
| No. of Poles | 2 |
| Rotation speed (min-1) | ≈ 2800 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Max. flow rate (m3/h) | 36 |
| Head (m) | 2.6-13.3 |
| Single-phase voltage (V) | 230 ±10% |
| Three-phase voltage (V) | 400 ±10% |
Ebara 1HP Wastewater Lift Pump DW 100 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Mechanical Shaft Seal on Pump Side : SiC/SiC/NBR
- Mechanical Shaft Seal on Motor side : Carbon/Ceramic/NBR
Ebara 1HP Wastewater Lift Pump DW 100 Technical Data
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| Head (m) | 13.3 | 10.6 | 8.7 | 7.1 | 5.5 | 4.0 | 2.6 |

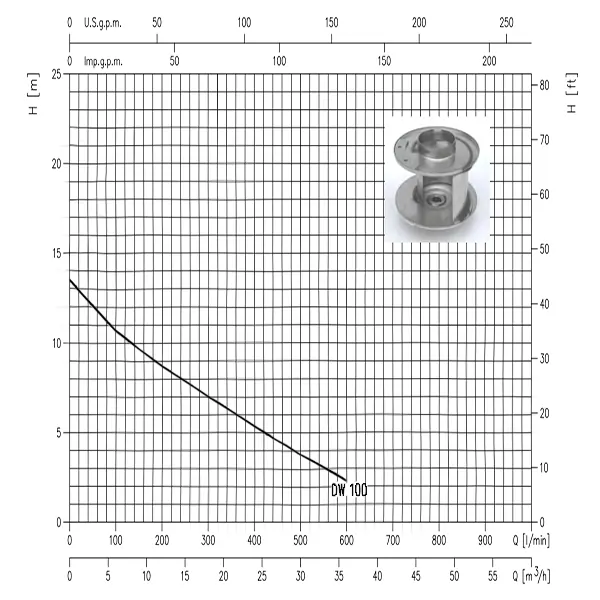

Ebara 1HP Wastewater Lift Pump DW 100 Performance Curve
Ebara 1HP Wastewater Lift Pump DW 100 Applications
- Residential sewage systems
- Commercial wastewater management
- Industrial drainage solutions
- Flood control and emergency pumping
Ebara 1HP Wastewater Lift Pump DW 100 Benefits
- Handles solids up to 50 mm for versatile use
- High flow rate of 36 m3/h for efficient drainage
- Durable construction with AISI 304 casing
- IP X8 rating ensures protection against water ingress
Ebara 1HP Wastewater Lift Pump DW 100 Price List
| No. | Name | Price |
| 1 | Ebara 1HP Wastewater Lift Pump DW 100 Price | Contact us |
