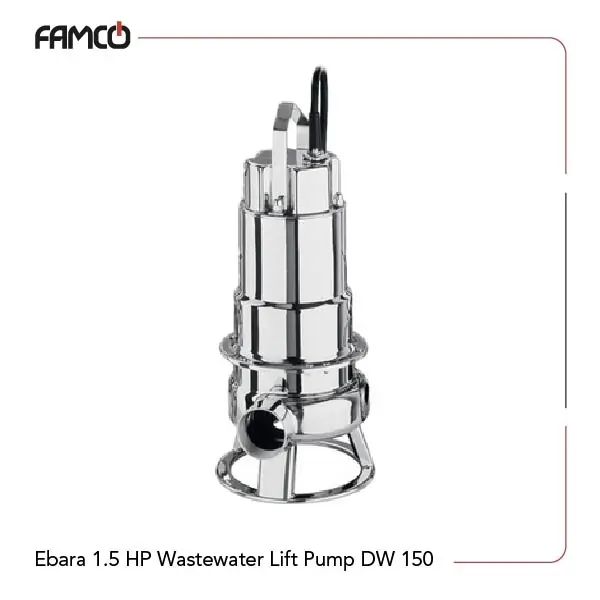

Ebara 1.5 HP Wastewater Lift Pump DW 150 Specifications
Ebara 1.5 HP wastewater lift pump DW 150 is designed to handle dirty and sewage water efficiently. This line of Ebara pumps operates at a maximum temperature of 40°C and can manage solids up to 50 mm in size. It is suitable for various applications with a maximum immersion depth of 7 meters. This Ebara sewage pump features a rotation speed of approximately 2800 min-1 and operates on a frequency of 50 Hz. This product has a power output of 1.1 kW (1.5 HP) and can achieve a maximum flow rate of 42 m3/h. The head range is between 2.4 to 15.0 meters, making it versatile for different setups. The insulation class is rated F to make operations safer. Additionally, it has a protection degree of IP X8, which means it is well-protected against water ingress.
| Specification | Value |
| Type of liquid | Dirty water, sewage water |
| Max temperature (°C) | 40 |
| Max solids size (mm) | 50 spherical |
| Maximum immersion (m) | 7 |
| No. of Poles | 2 |
| Rotation speed (min-1) | ≈ 2800 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. flow rate (m3/h) | 42 |
| Head (m) | 2.4-15.0 |
| Single-phase voltage (V) | 230 ±10% |
| Three-phase voltage (V) | 400 ±10% |
Ebara 1.5 HP Wastewater Lift Pump DW 150 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Mechanical Shaft Seal on Pump Side : SiC/SiC/NBR
- Mechanical Shaft Seal on Motor side : Carbon/Ceramic/NBR
Ebara 1.5 HP Wastewater Lift Pump DW 150 Technical Data
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 |
| Head (m) | 15.0 | 13.1 | 11.3 | 9.5 | 7.7 | 5.9 | 4.2 | 2.4 |

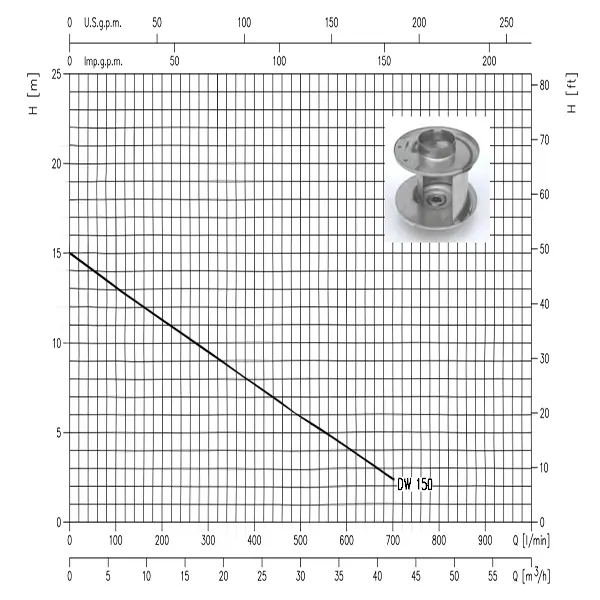

Ebara 1.5 HP Wastewater Lift Pump DW 150 Performance Curve
Ebara 1.5 HP Wastewater Lift Pump DW 150 Applications
- Construction site dewatering
- Wastewater treatment facilities
- Agricultural irrigation systems
- Flood control and drainage
Ebara 1.5 HP Wastewater Lift Pump DW 150 Benefits
- Handles solids up to 50 mm efficiently
- High flow rate of 42 m3/h for quick drainage
- Durable AISI 304 construction for longevity
- IP X8 rating ensures protection against water ingress
Ebara 1.5 HP Wastewater Lift Pump DW 150 Price List
| No. | Name | Price |
| 1 | Ebara 1.5 HP Wastewater Lift Pump DW 150 Price | Contact us |
