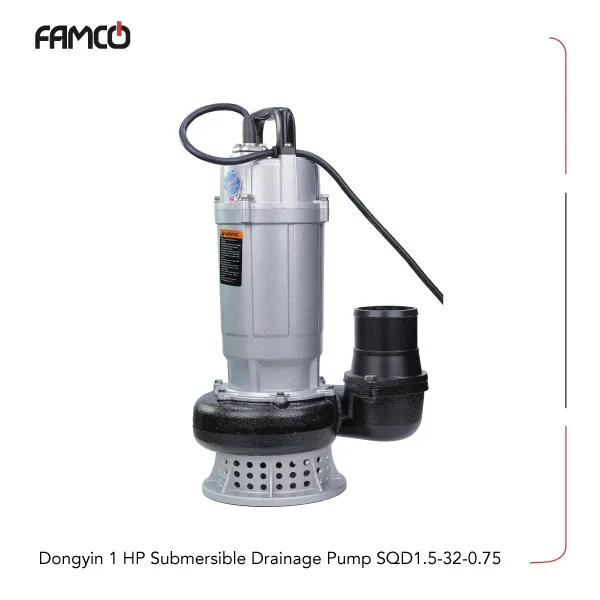

Dongyin 1 HP Submersible Drainage Electric Pump SQD1.5-32-0.75 Specifications
This pump operates with a power of 0.75 kW, equivalent to 1 HP, making it suitable for various water transfer tasks. It can handle a maximum flow rate of 8 cubic meters per hour, which is ideal for medium-sized applications. The maximum delivery head is 32 meters, allowing it to lift water efficiently over considerable heights. The outlet size is 1 inch, compatible with standard piping systems. The SQD1.5 series Dongyin pump features a solid passage of 5 mm, enabling it to pass small solids without clogging. The pump body is made from durable aluminum, providing strength while keeping the weight manageable. The impeller is cast aluminum, designed for durability and efficient water movement. The mechanical seal is made of graphite and ceramic, ensuring a reliable seal against leaks.
The shaft is constructed from stainless steel, offering corrosion resistance and longevity. It can operate with liquids up to 40°C, suitable for typical water and light fluid applications. The pump is single-phase and runs at a frequency of 50 Hz, compatible with standard electrical supplies. Additionally, it includes a float switch for automatic operation, enhancing convenience and safety during use.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Max. flow rate (m3/h) | 8 |
| Max. delivery head (m) | 32 |
| Outlet (inch) | 1 |
| Solid passage (mm) | 5 |
| Pump body | aluminum |
| Impeller | cast aluminum |
| Mechanical seal | graphite/ceramic |
| Shaft | stainless steel |
| Maximum liquid temperature (°C) | 40 |
| Single-phase | True |
| Frequency (Hz) | 50 |
| Float switch | included |
Dongyin 1 HP Submersible Drainage Electric Pump SQD1.5-32-0.75 Applications
- Irrigation systems in agriculture
- Water transfer in residential settings
- Light industrial fluid handling
- Drainage and flood control
Dongyin 1 HP Submersible Drainage Electric Pump SQD1.5-32-0.75 Benefits
- Durable aluminum construction for long-lasting use
- High efficiency with a maximum flow rate of 8 m3/h
- Automatic operation with included float switch
- Corrosion-resistant parts suitable for various liquids
Dongyin 1 HP Submersible Drainage Electric Pump SQD1.5-32-0.75 Price List
| No. | Name | Price |
| 1 | Dongyin 1 HP Submersible Drainage Electric Pump SQD1.5-32-0.75 Price | Contact us |
