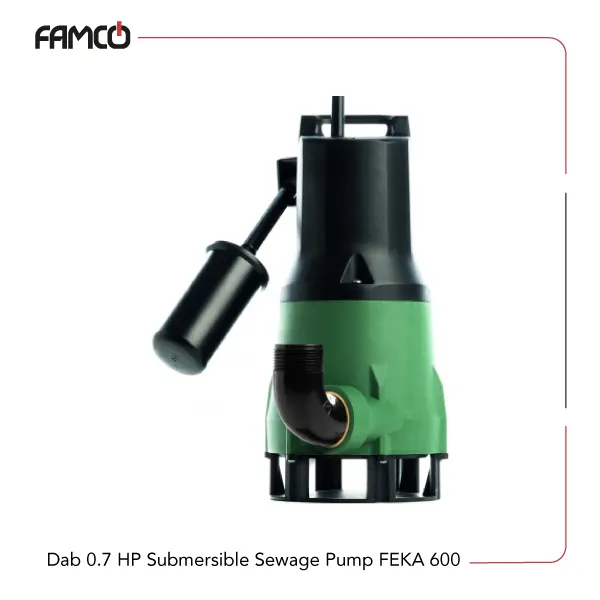

Dab 0.7 HP Submersible Sewage Pump FEKA 600 Specifications
This pump is designed for versatile applications with a maximum immersion depth of 7 meters. It supports a free passage of 25 mm and requires a minimum intake level of 38 mm to operate efficiently. The device can handle liquids within a temperature range from 0°C to 35°C for domestic use, and up to 50°C for other applications. It features an IP 68 protection class, making it highly resistant to dust and water ingress, suitable for demanding environments. The motor insulation is rated class F, ensuring durability and safety during operation. The impeller and pump body inside this Dab submersible pump are made from durable technopolymer, which provides strength and corrosion resistance. It can be powered by single-phase 230 V 50 Hz or three-phase power supplies of 3×230 V 50 Hz or 3×400 V 50 Hz. The Dab sewage pump can deliver a maximum flow rate of 250 liters per minute and a maximum head of 8.9 meters, making it suitable for various water transfer and drainage tasks. Its power consumption is 0.5 kW, equivalent to 0.7 HP, offering efficient performance for different operational needs.
| Specification | Value |
| Maximum immersion depth | 7 m |
| Free passage | 25 mm |
| Minimum intake level | 38 mm |
| Supported liquid temperature min. | +0°C |
| Supported liquid temperature max. | +35°C for domestic use, +50°C for other uses |
| Class of protection | IP 68 |
| Motor insulation class | F |
| Impeller | technopolymer |
| Pump body | technopolymer |
| Single phase power input | 230 V 50 Hz |
| Three phase power input | 3×230 V 50 Hz / 3×400 V 50 Hz |
| Max. flow rate | 250 l/min |
| Max. delivery head | 8.9 m |
| Power | 0.5 kW |
| Power (HP) | 0.7 HP |

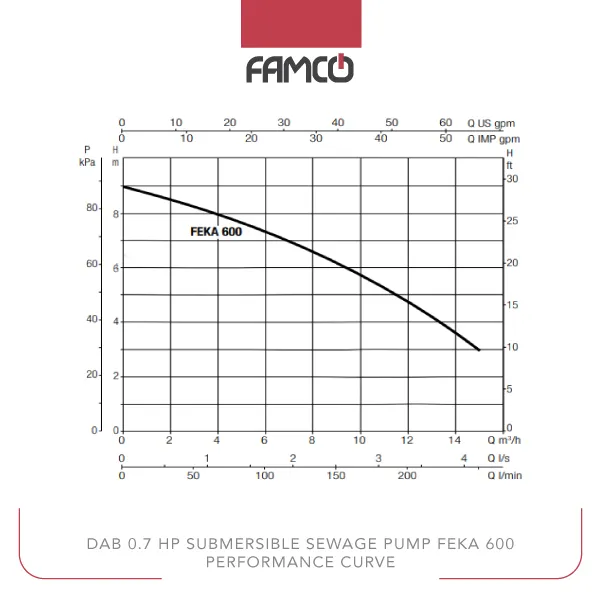

Dab 0.7 HP Submersible Sewage Pump FEKA 600 Performance Data
| m³h | 0 | 3 | 6 | 9 | 12 | 15 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 |
| head (m) | 8.9 | 8.2 | 7.2 | 6.1 | 4.7 | 2.9 |
Dab 0.7 HP Submersible Sewage Pump FEKA 600 Applications
- Water drainage in residential and commercial settings
- Irrigation and agricultural water transfer
- Industrial liquid handling and transfer
- Flood control and water level management
Dab 0.7 HP Submersible Sewage Pump FEKA 600 Benefits
- High durability with technopolymer construction
- Versatile power options for different setups
- Efficient flow rate and head for various tasks
- Excellent protection against dust and water ingress
Dab 0.7 HP Submersible Sewage Pump FEKA 600 Price List
| No. | Name | Price |
| 1 | Dab 0.7 HP Submersible Sewage Pump FEKA 600 Price | Contact us |
