Calpeda 7.5 HP Submersible Borehole Pump 6SDS 35/4I 6SM Specifications
You can use the 6SM motor flange coupled with this Calpeda submersible pump. The 6SDS 35/4I Calpeda pump features a maximum liquid temperature of 25°C, making it suitable for various water applications. It can handle up to 100 grams of sand per cubic meter of water, which is ideal for environments with some particulate matter. The motor has 2 poles and operates at a frequency of 50 Hz, with a speed of approximately 2900 RPM. It supports three-phase power supplies of 400 V or 400/690 V, providing flexibility for different electrical setups. The Calpeda submersible pump consumes 5.5 kilowatts (about 7.5 horsepower), offering a good balance of power and efficiency. It can deliver a maximum head of 54 meters, making it capable of lifting water to significant heights. The maximum flow rate is 767 liters per minute, ensuring high-volume water movement for various industrial or commercial needs.
| Specification | Value |
| Liquid temperature | up to 25 °C |
| Maximum amount of sand in the water | 100 g/m3 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Speed (rpm) | ≈ 2900 |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. delivery head (m) | 54 |
| Max. flow rate (l/min) | 767 |

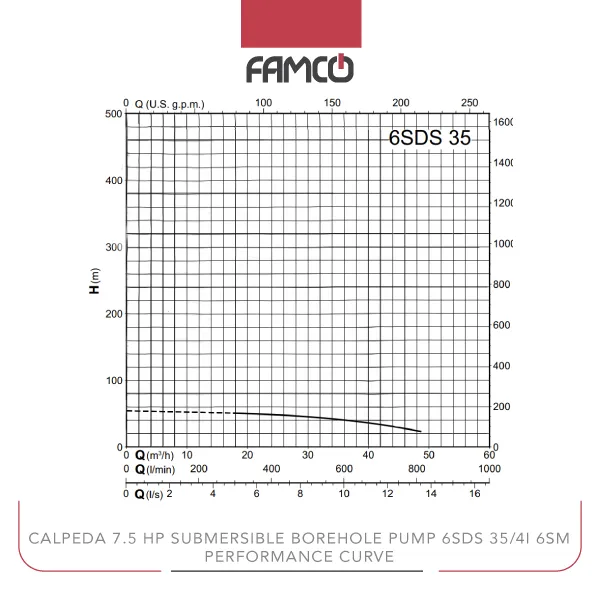

Calpeda 7.5 HP Submersible Borehole Pump 6SDS 35/4I 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 54 | 50.4 | 49.9 | 49.2 | 48.4 | 47.5 | 46.4 | 45.2 | 43.8 | 42.1 | 40.3 | 38.2 | 35.9 | 33.4 | 30.6 | 27.5 |
Calpeda 7.5 HP Submersible Borehole Pump 6SDS 35/4I 6SM Applications
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
- Flood control and drainage
Calpeda 7.5 HP Submersible Borehole Pump 6SDS 35/4I 6SM Benefits
- High flow rate for efficient water movement
- Capable of handling some sand content
- Flexible voltage options for various setups
- Reliable performance with a maximum head of 54 meters
Calpeda 7.5 HP Submersible Borehole Pump 6SDS 35/4I 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 7.5 HP Submersible Borehole Pump 6SDS 35/4I 6SM Price | Contact us |
