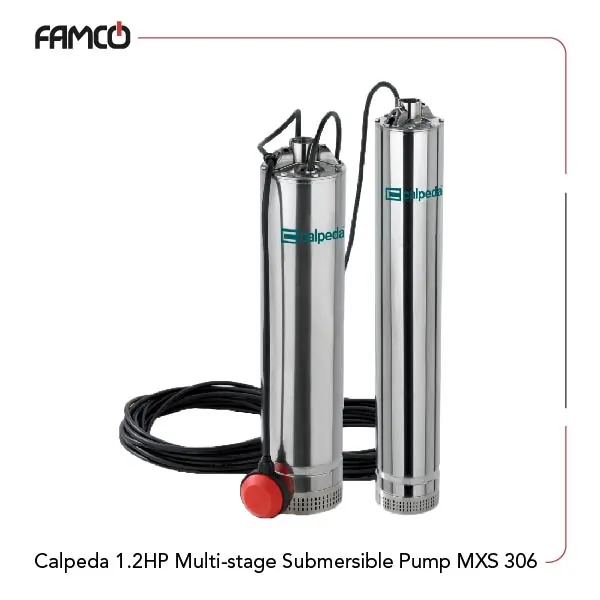

Calpeda 1.2HP Multi-stage Submersible Pump MXS 306 Specifications
Calpeda 1.2HP multi-stage submersible pump MXS 306 is designed for efficient liquid handling, transferring the maximum liquid temperature of 35° C. This Calpeda submersible pump features a minimum immersion depth of 100 mm for optimal performance and can operate at depths of up to 20 m, that is if the cable length is suitable. The product’s motor operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. It is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class in this product is rated as F to increase reliable performance in various conditions. This product has an IP X8 protection class which is suitable for continuous immersion in liquids. This pump has a total of 6 impellers made from PPO-GF20 (Noryl) and a shaft constructed from chrome-nickel steel (AISI 304). The mechanical seals in this sturdy pump are incorporated in its design for durability, using materials like steatite, carbon, and NBR. The lubrication oil used is the same as ones used for food machinery and pharmaceutical applications.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 6 | |
| Power (kW) | 1.2 | |
| Power (HP) | 0.9 | |
| Head (m) | 23-65 | |
Calpeda 1.2HP Multi-stage Submersible Pump MXS 306 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbone, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutic use Oil

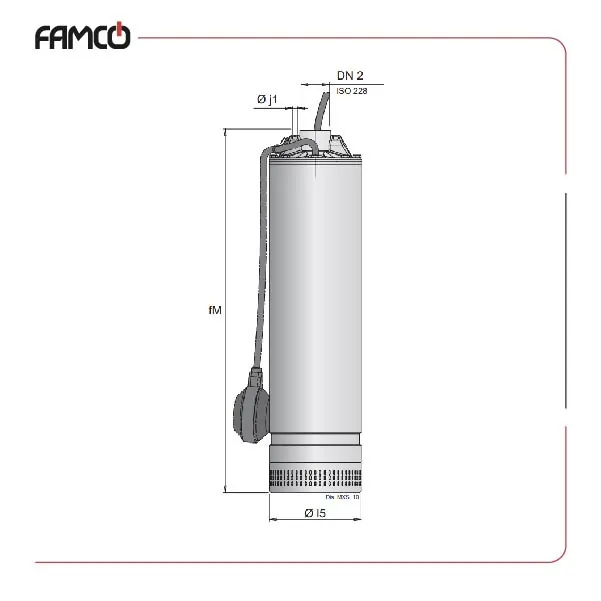

Calpeda 1.2HP Multi-stage Submersible Pump MXS 306 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 306 | G 1 1/4 | 601 | 7 | 133 | 15.7 |
| MXSM 306 | G 1 1/4 | 601 | 7 | 133 | 17.1 |

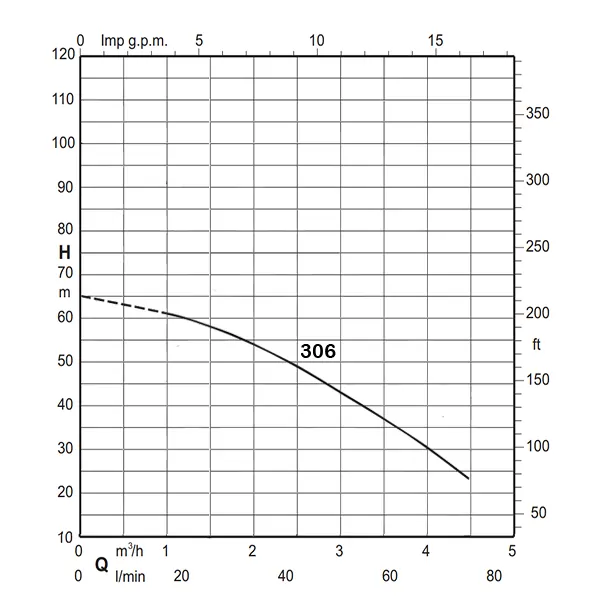

Calpeda 1.2HP Multi-stage Submersible Pump MXS 306 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| Q=l/min | 0 | 16.66 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 |
| H (m) | 65 | 61 | 58 | 54 | 49 | 43 | 37 | 30.5 | 23 |
Calpeda 1.2HP Multi-stage Submersible Pump MXS 306 Applications
- Industrial liquid transfer
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
Calpeda 1.2HP Multi-stage Submersible Pump MXS 306 Benefits
- High efficiency with a rotation speed of 2900 rpm
- Durable construction with corrosion-resistant materials
- Safe for use in food and pharmaceutical industries
- Versatile immersion depth for various applications
Calpeda 1.2HP Multi-stage Submersible Pump MXS 306 Price List
| No. | Name | Price |
| 1 | Calpeda 1.2HP Multi-stage Submersible Pump MXS 306 Price | Contact us |
