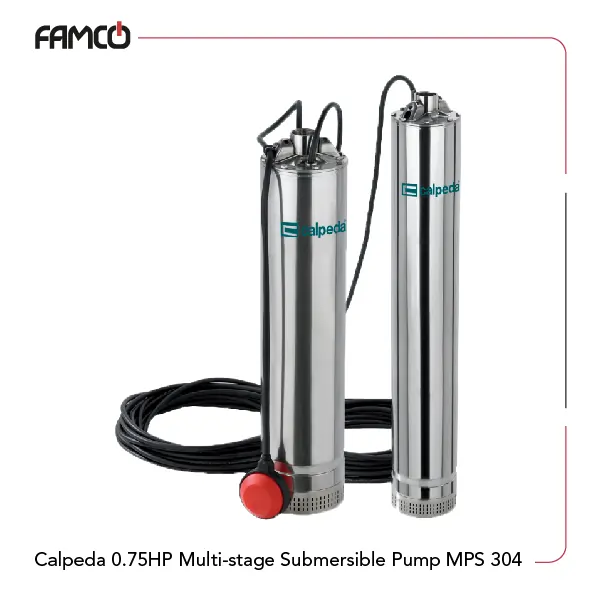

Calpeda 0.75HP Multi-stage Submersible Pump MPS 304 Specifications
Calpeda 0.75HP multi-stage submersible pump MPS 304 is designed for water supply from wells, tanks, or reservoirs. It can be used in domestic, civil, and industrial settings. Suitable for garden irrigation and rainwater harvesting systems. It features a 2-pole motor available in single- and three-phase options, with insulation class F for durability. The protection rating is IP X8, making it suitable for submersion. It delivers a maximum head of 41.5 meters and a flow rate of 4.5 cubic meters per hour, or 75 liters per minute. The current requirements are 1.6A at 400V and 4.1A at 230V. Its strong design makes this Calpeda submersible pump suitable for domestic, civil, and industrial uses. With a maximum immersion depth of 20 meters, it can handle deep water sources efficiently. Its durable Noryl impeller and high protection class ensure long-lasting performance even in challenging environments. Easy to install and operate, this pump is a reliable choice for both residential and commercial water supply needs.
| Specification | Value |
| Liquid temperature (° C) | up to 35 |
| Maximum immersion depth (m) | 20 |
| Motor | 2-pole |
| Number of phases | single- and three-phase |
| Insulation class | F |
| Protection degree | IP X8 |
| Impeller | Noryl |
| Power (kW) | 0.5 |
| Power (HP) | 0.75 |
| Maximum delivery head (m) | 41.5 |
| Maximum flow rate (m3/h) | 4.5 |
| Maximum flow rate (L/min) | 75 |
| Current (A) | 1.6 (400V)/4.1 (230V) |

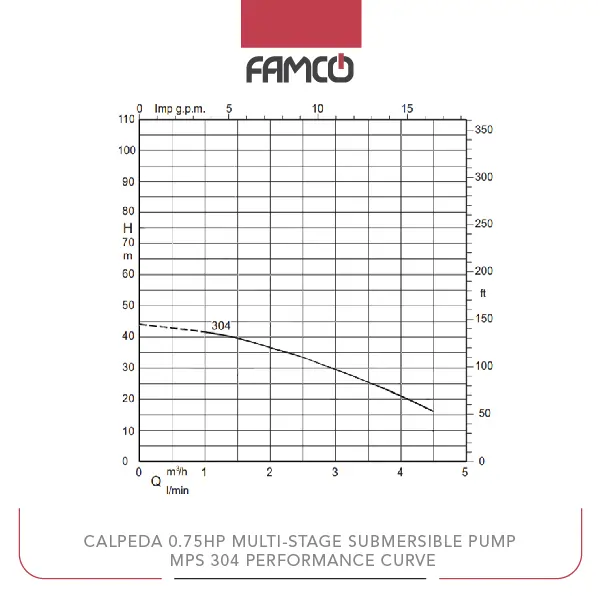

Calpeda 0.75HP Multi-stage Submersible Pump MPS 304 Performance Data
| m3/h | 0 | 1 | 1,5 | 2 | 2,5 | 3 | 3,5 | 4 | 4,5 |
| l/min | 16,66 | 25 | 33,33 | 41,66 | 50 | 58,33 | 66,66 | 75 | |
| m | 44 | 41,5 | 39,5 | 36,5 | 33,5 | 29,5 | 25,5 | 21 | 16 |

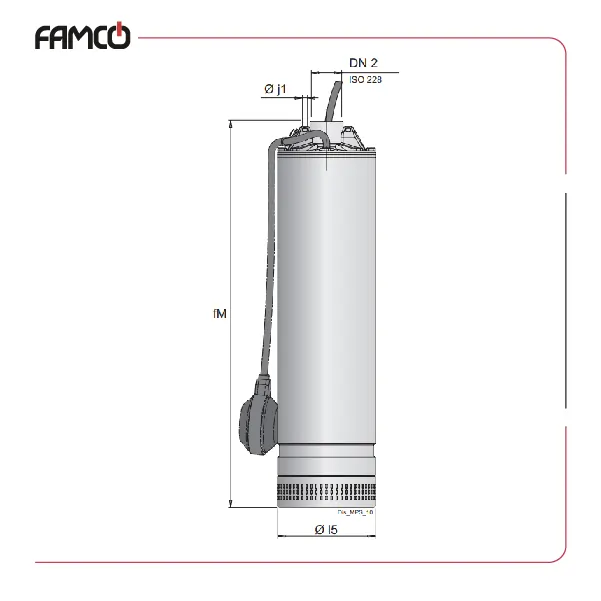

Calpeda 0.75HP Multi-stage Submersible Pump MPS 304 Dimensions
Calpeda 0.75HP Multi-stage Submersible Pump MPS 304 Applications
- Water supply from wells, tanks, or reservoirs
- Domestic, civil, and industrial water systems
- Garden irrigation and watering systems
- Rainwater harvesting and water management
Calpeda 0.75HP Multi-stage Submersible Pump MPS 304 Benefits
- High efficiency with a maximum head of 41.5 meters
- Suitable for deep water sources up to 20 meters
- Durable construction with Noryl impeller and IP X8 protection
- Flexible power options with single- and three-phase motors
Calpeda 0.75HP Multi-stage Submersible Pump MPS 304 Price List
| No. | Name | Price |
| 1 | Calpeda 0.75HP Multi-stage Submersible Pump MPS 304 Price | Contact us |
