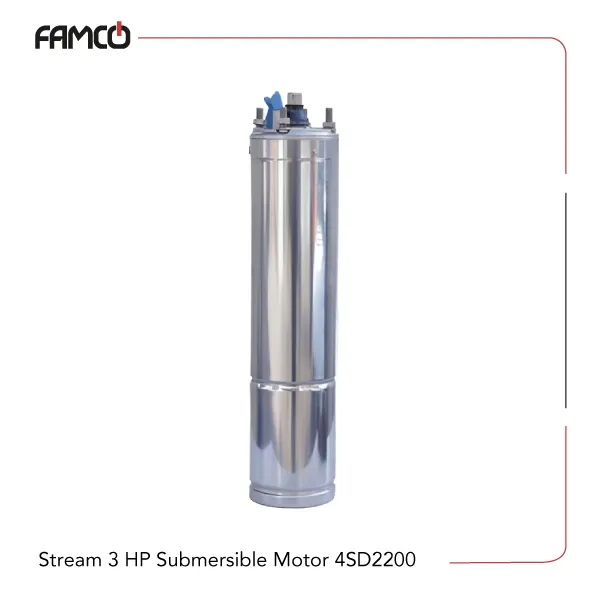

Stream 3 HP Submersible Motor 4SD2200 Specifications
This motor features a power output of 2.2 kW (3 HP), making it suitable for various industrial applications. It is a rewindable oil-filled motor, designed to perfectly match with Stream pump units and operate efficiently with a maximum liquid temperature of 40°C. The motor is single-phase and runs at a frequency of 50 Hz, ideal for standard power systems. Its protection degree is IP68, so you can safely use this Stream submersible motor with dust and water present in the harsh environments. The insulation class is F, providing good thermal endurance. The motor shaft conforms to the standard NEMA specifications and is made from durable 304 steel, which offers corrosion resistance. The housing is also constructed from 304 steel. The body diameter measures 4 inches, making it compact yet powerful for various applications.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Motor Type | rewindable oil-filled |
| Maximum Liquid Temperature | 40 C |
| Single-phase | Yes |
| Frequency | 50 Hz |
| Protection Degree | IP68 |
| Insulation Class | F |
| Motor Shaft | Standard NEMA |
| Material – Shaft | 304 steel |
| Material – Housing | 304 steel |
| Body Diameter | 4 inch |
Stream 3 HP Submersible Motor 4SD2200 Applications
- Industrial pumps
- Water supply
- Water treatment systems
- Conveyor systems
Stream 3 HP Submersible Motor 4SD2200 Benefits
- High durability with stainless steel components
- Excellent protection against dust and water
- Easy to maintain with rewindable oil-filled design
- Reliable performance in harsh environments
Stream 3 HP Submersible Motor 4SD2200 Price List
| No. | Name | Price |
| 1 | Stream 3 HP Submersible Motor 4SD2200 Price | Contact us |
