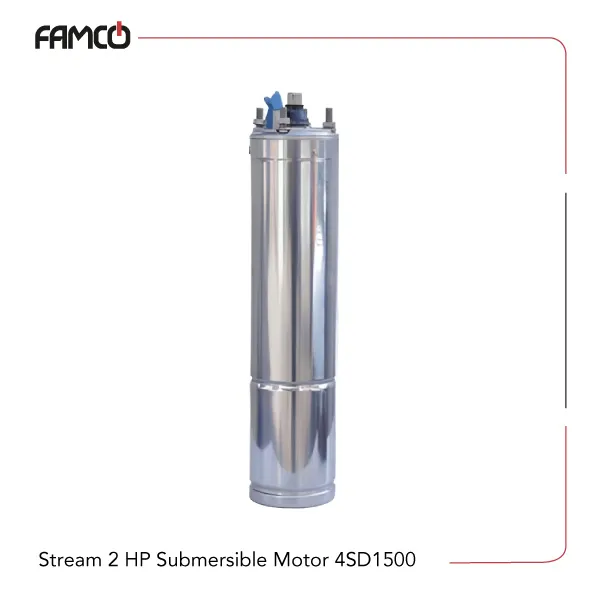

Stream 2 HP Submersible Motor 4SD1500 Specifications
This pump features a 1.5 kW (2 HP) rewindable oil-filled motor designed for durability and efficiency. It operates on a single-phase power supply at 50 Hz, making it suitable for various applications. The motor is protected with an IP68 rating, ensuring resistance to dust and water ingress, ideal for harsh environments. The insulation class F provides high thermal resistance, supporting continuous operation. The motor shaft is a standard NEMA type, made from durable 304 steel, which is also used for the housing, ensuring strength and corrosion resistance. The pump body of the presented Stream submersible motor has a diameter of 4 inches, making it versatile for different piping systems. The maximum liquid temperature it can handle is 40°C, suitable for many industrial and domestic applications. Overall, this Stream pump combines robust construction with reliable performance, making it a good choice for demanding tasks where durability and efficiency are essential.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Motor Type | rewindable oil-filled |
| Maximum Liquid Temperature | 40°C |
| Single-phase | Yes |
| Frequency | 50 Hz |
| Protection Degree | IP68 |
| Insulation Class | F |
| Motor Shaft | Standard NEMA |
| Shaft Material | 304 steel |
| Housing Material | 304 steel |
| Body Diameter | 4 inch |
Stream 2 HP Submersible Motor 4SD1500 Applications
- Industrial fluid transfer
- Water supply systems
- Chemical processing
- Agricultural irrigation
Stream 2 HP Submersible Motor 4SD1500 Benefits
- High durability with stainless steel components
- Water and dust resistant with IP68 protection
- Efficient operation with a 1.5 kW motor
- Suitable for continuous use at up to 40°C
Stream 2 HP Submersible Motor 4SD1500 Price List
| No. | Name | Price |
| 1 | Stream 2 HP Submersible Motor 4SD1500 Price | Contact us |
