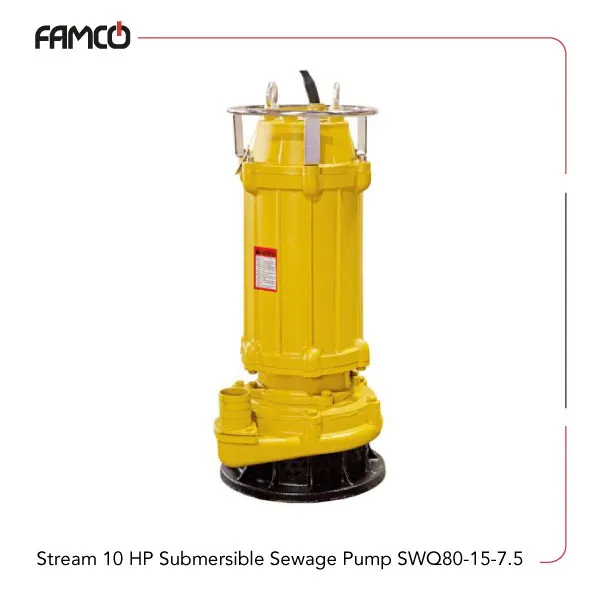

Stream 10 HP Submersible Sewage Pump SWQ80-15-7.5 Specifications
Stream submersible sewage pump SWQ80-15-7.5 is equipped with a high-capacity 10 HP (7.5 kW) motor, allowing it to perform reliably in demanding operating conditions. It features a 100 mm outlet and supports a maximum flow rate of 149 cubic meters per hour, equivalent to 2,483 liters per minute. With a maximum head of 21 meters, it provides effective performance for applications that require moving liquids across moderate elevations or distances. This Stream sewage pump accommodates solids up to 30 mm in diameter, reducing the risk of blockage when handling water containing debris. Its weight of 128 kg contributes to operational stability, while its dimensions of 39.5 × 35.5 × 110 cm offer a compact form factor that simplifies installation and servicing. Designed for versatile field use, it operates at immersion depths up to 5 meters and is compatible with liquids at temperatures between 0 and 40 degrees Celsius. These characteristics make it a strong fit for industrial and commercial environments where sustained flow, robustness, and dependable performance are priorities.
| Specification | Value |
| Number of phases | Three-phase |
| Power (HP) | 10.0 |
| Power (kW) | 7.5 |
| Outlet (mm) | 100 |
| Maximum Flow rate (m3/h) | 149 |
| Maximum Flow rate (l/min) | 2483 |
| Maximum head (m) | 21 |
| Weight (kg) | 128 |
| Solid passage (mm) | 30 |
| Dimensions (cm) | 39.5*35.5*110 |
| Max. immersion depth | 5 m |
| Liquid temperature | 0~40 ℃ |

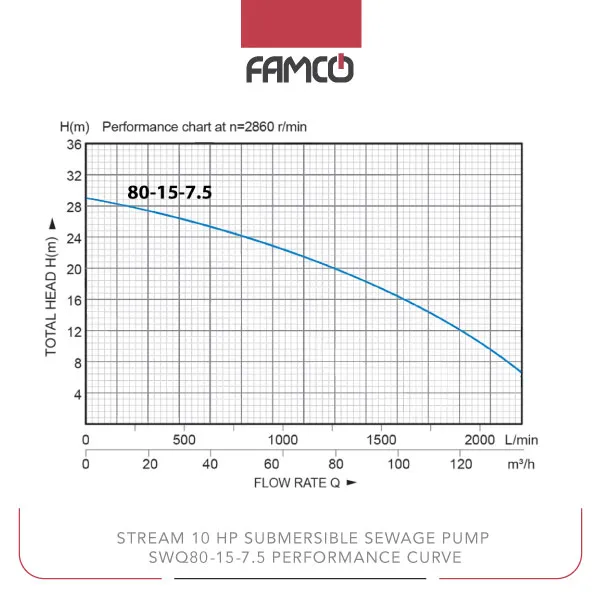

Stream 10 HP Submersible Sewage Pump SWQ80-15-7.5 Performance Curve
Stream 10 HP Submersible Sewage Pump SWQ80-15-7.5 Applications
- Industrial water transfer
- Drainage and sewage systems
- Irrigation in agriculture
- Construction site water management
Stream 10 HP Submersible Sewage Pump SWQ80-15-7.5 Benefits
- High power for demanding tasks
- Large solid passage prevents clogging
- High flow rate for quick water movement
- Durable and stable for long-term use
Stream 10 HP Submersible Sewage Pump SWQ80-15-7.5 Price List
| No. | Name | Price |
| 1 | Stream 10 HP Submersible Sewage Pump SWQ80-15-7.5 Price | Contact us |
