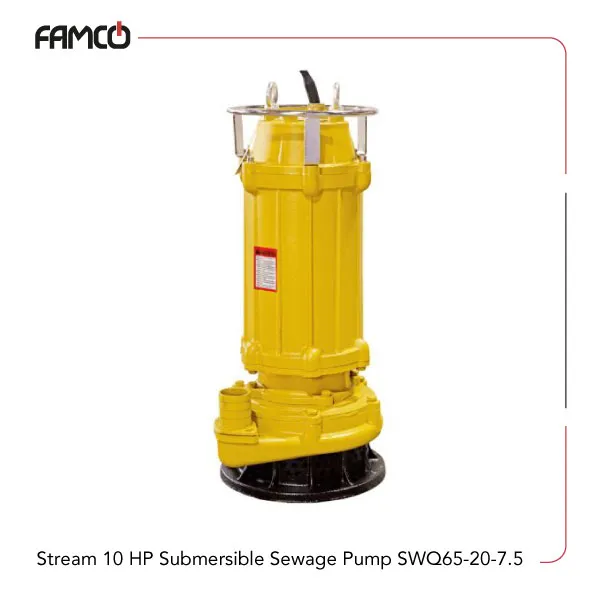

Stream 10 HP Submersible Sewage Pump SWQ65-20-7.5 Specifications
Stream submersible sewage pump SWQ65-20-7.5 is equipped with a strong 10 HP (7.5 kW) motor, giving it the capacity to take on demanding tasks with steady output. It comes with a 100 mm outlet and can move up to 140 cubic meters of liquid per hour, equal to 2,333 liters per minute. With a maximum head of 27 meters, it performs well in applications that require lifting liquids over notable heights. The pump can handle solids up to 30 mm, allowing it to keep working even when debris is present in the fluid. This Stream sewage pump weighs 128 kg and has dimensions of 39.5 × 35.5 × 110 cm, giving it a tall, compact profile suitable for various installation layouts. It can be immersed up to 5 meters deep and operates within a liquid temperature range of 0 to 40 degrees Celsius, making it adaptable for different environments and fluid conditions. These characteristics position it as a strong choice for industrial, agricultural, or large-scale water-movement projects.
| Specification | Value |
| Number of phases | Three-phase |
| Power (HP) | 10.0 |
| Power (kW) | 7.5 |
| Outlet (mm) | 100 |
| Maximum Flow rate (m3/h) | 140 |
| Maximum Flow rate (l/min) | 2333 |
| Maximum head (m) | 27 |
| Weight (kg) | 128 |
| Solid passage (mm) | 30 |
| Dimensions (cm) | 39.5*35.5*110 |
| Max.immersion depth | 5 m |
| Liquid temperature | 0~40 ℃ |

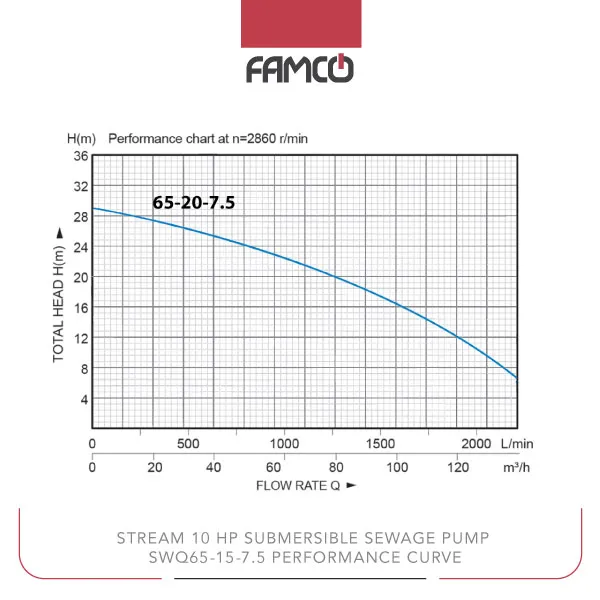

Stream 10 HP Submersible Sewage Pump SWQ65-20-7.5 Performance Curve
Stream 10 HP Submersible Sewage Pump SWQ65-20-7.5 Applications
- Water transfer in industrial settings
- Drainage and flood control
- Irrigation systems for agriculture
- Construction site dewatering
Stream 10 HP Submersible Sewage Pump SWQ65-20-7.5 Benefits
- High flow rate for efficient liquid transfer
- Robust construction for durability
- Large solid passage reduces clogging
- Suitable for various liquid temperatures and debris
Stream 10 HP Submersible Sewage Pump SWQ65-20-7.5 Price List
| No. | Name | Price |
| 1 | Stream 10 HP Submersible Sewage Pump SWQ65-20-7.5 Price | Contact us |
