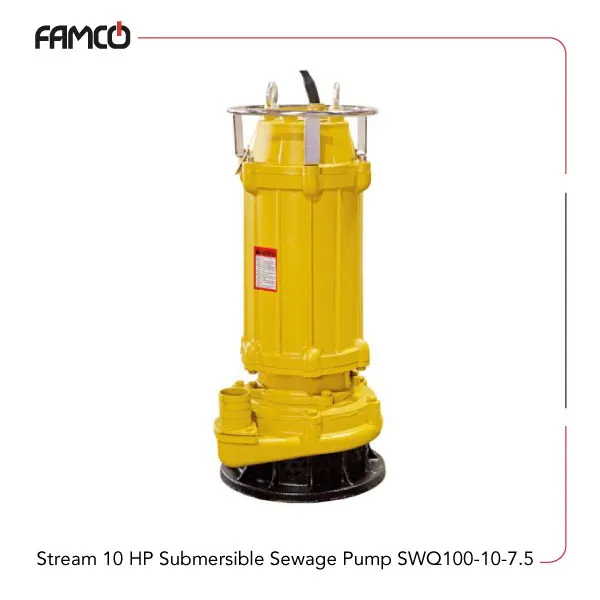

Stream 10 HP Submersible Sewage Pump SWQ100-10-7.5

Stream 10 HP Submersible Sewage Pump SWQ100-10-7.5 Specifications

Stream 10 HP submersible sewage pump SWQ100-10-7.5 is equipped with a robust 10 HP (7.5 kW) motor, delivering the power required for demanding operational environments. It features a 100 mm outlet and supports a maximum flow rate of 143 cubic meters per hour, equivalent to 2,383 liters per minute, ensuring efficient handling of high-volume liquid transfer tasks. With a maximum head of 20 meters, the pump provides reliable performance for applications involving moderate elevation or long-distance liquid movement. Its 30 mm solid passage capability allows the unit to process larger debris without clogging, enhancing operational continuity in challenging conditions. The pump weighs 131 kg, providing stability during operation, and its compact dimensions of 39.5 × 35.5 × 110 cm support ease of installation and maintenance. This Stream sewage pump is designed for submersible use at depths up to 5 meters and operates effectively with liquids ranging from 0 to 40 degrees Celsius. Engineered for durability and high efficiency, this pump is well suited for industrial, agricultural, and construction applications that require consistent, high-performance fluid handling.

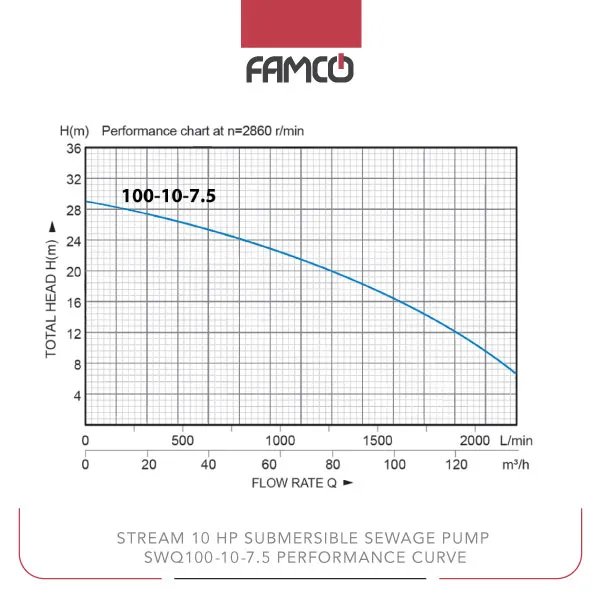

Stream 10 HP Submersible Sewage Pump SWQ100-10-7.5 Performance Curve

Stream 10 HP Submersible Sewage Pump SWQ100-10-7.5 Applications

• Industrial liquid transfer
• Agricultural irrigation systems
• Construction site dewatering
• Water supply systems

Stream 10 HP Submersible Sewage Pump SWQ100-10-7.5 Benefits

• High flow capacity for large volume transfer
• Durable construction for long-term use
• Suitable for deep immersion up to 5 meters
• Efficient operation with a powerful 10 HP motor

Stream 10 HP Submersible Sewage Pump SWQ100-10-7.5 Price List
