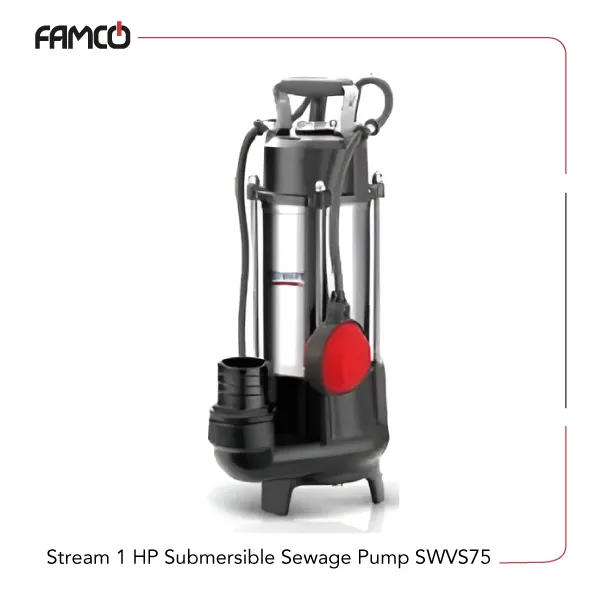

Stream 1 HP Submersible Sewage Pump SWVS75 Specifications
The Stream 1 HP Submersible Sewage Pump SWVS75 operates with a maximum flow rate of 21 m³/h and a 12 m delivery head, and its structure includes a cast iron pump body, cast iron impeller, stainless steel motor bracket, SS316/CS45# shaft, and copper winding, which aligns well with users selecting a Stream sewage pump for handling liquids up to +40°C with suspended solids up to 45 mm. The model supports both single-phase and three-phase power setups, each equipped with thermal overload protection, and its IP68 protection rating, Class B insulation, and 5 m allowable submersion depth define its operating limits clearly.
When a Stream submersible pump is needed for installations that match these parameters, the SWVS75 fits the requirement through its 0.75 kW power input, 1 HP output, and compatibility with standard 230 V single-phase or three-phase configurations, all within a 510×220×280 mm footprint and an 18 kg total weight.
| Specification | Value |
| Submersible depth | 5m |
| Liquid temperature | +40°C |
| Ambient temperature | +40°C |
| Max working pressure | 6 bar |
| Passage of suspended solid | 45mm |
| 2-pole induction motor | Yes |
| Insulation | Class B |
| Protection | IP 68 |
| Single-phase with capacitor and thermal overload protection | Yes |
| Voltage | Single-phase, Three-phase with thermal overload protection |
| Pump body | Cast iron |
| Motor bracket | Stainless steel |
| Impeller | Cast iron |
| Motor shaft | SS316 with CS45# |
| Mechanical seal | Ceramic-Graphite, Silicon Carbide-Carbide alloy |
| Winding | Copper |
| Max flow rate | 21 m³/h |
| Power | 0.75 kW / 1 HP |
| Max delivery head | 12 m |
| Weight | 18 kg |
| Dimensions | 510*220*280 mm |

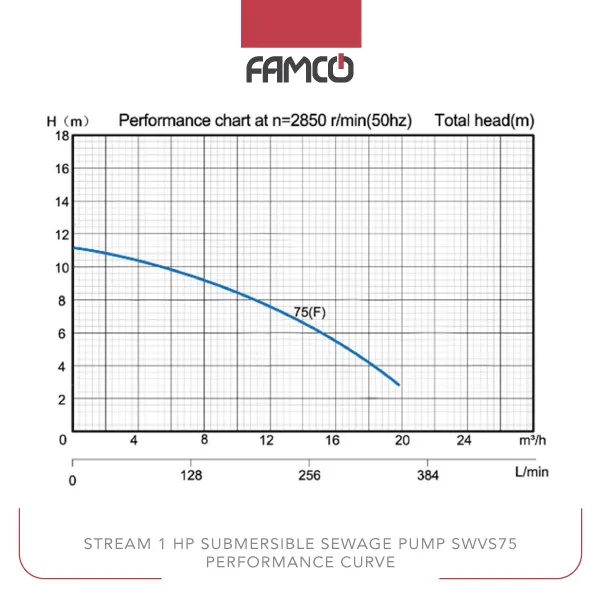

Stream 1 HP Submersible Sewage Pump SWVS75 Performance Curve
Stream 1 HP Submersible Sewage Pump SWVS75 Applications
- Water transfer in residential and commercial settings
- Sewage and flood control
- Irrigation systems for agriculture
- Industrial liquid handling and pumping
Stream 1 HP Submersible Sewage Pump SWVS75 Benefits
- High durability with cast iron and stainless steel parts
- Efficient performance with a maximum flow of 21 m³/h
- Reliable operation with thermal overload protection
- Suitable for various liquids and suspended solids up to 45mm
Stream 1 HP Submersible Sewage Pump SWVS75 Price List
| No. | Name | Price |
| 1 | Stream 1 HP Submersible Sewage Pump SWVS75 Price | Contact us |
