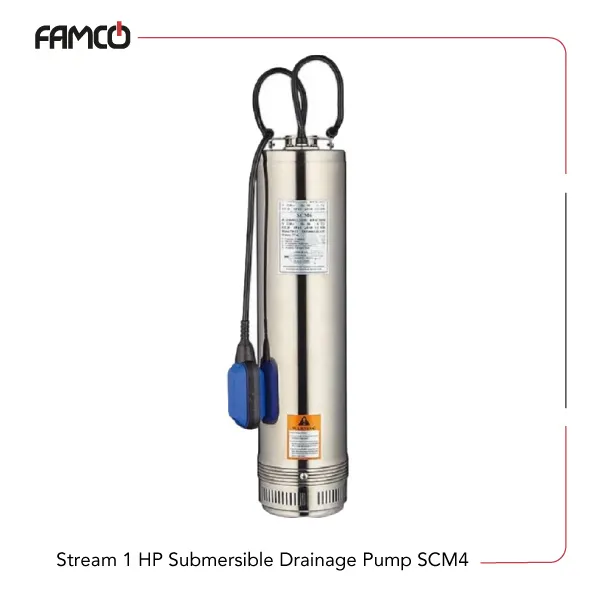

Stream 1 HP Submersible Drainage Pump SCM4

343 AED

0.75 kW (1 HP)

Single-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Stream 1 HP Submersible Drainage Pump SCM4

The Stream SCM4 is a 1 HP (0.75 kW) single-phase submersible drainage pump delivering a maximum flow of 6.6 m³/h and a delivery head of up to 51 meters. Built with a 5-inch body diameter and a 1¼ inch outlet, it is configured for controlled water lifting where space and vertical reach both matter. A 3 mm solid passage allows it to handle lightly contaminated water in drainage applications.

Related Products

Stream 1 HP Submersible Drainage Pump SCM4 Specifications

This model is constructed with a 304 stainless steel body, giving the pump a corrosion-resistant exterior suited for submerged operation. The shaft is also made of 304 stainless steel, ensuring alignment and durability during continuous operation. Internally, sealing is handled by a graphite and ceramic mechanical seal, designed to reduce leakage under operating pressure. The Stream drainage pump runs on a single-phase power supply at 50 Hz and is rated for liquid temperatures up to 35°C, aligning with standard drainage and clean water transfer conditions. Hydraulic performance is defined by a maximum flow rate of 6.6 cubic meters per hour and a delivery head reaching 51 meters, supporting vertical water movement in wells and similar installations. The 1¼ inch discharge provides this series of Stream submersible pumps with stable output. On top of this, the 3 mm solid passage allows small particles to pass without interrupting operation. A float switch can be included or not, depending on installation needs and your requirements.

Stream 1 HP Submersible Drainage Pump SCM4



Specification Value
Brand Stream
Model SCM4
Power 0.75 kW (1 HP)
Phase Single-phase
Frequency 50 Hz
Max Flow Rate 6.6 m³/h
Max Delivery Head 51 m
Outlet Size 1¼ inch
Solid Passage 3 mm
Body Diameter 5 inch
Body Material 304 stainless steel
Shaft 304 stainless steel
Mechanical Seal Graphite / Ceramic
Max Liquid Temperature 35 °C
Float Switch With or without

Stream 1 HP Submersible Drainage Pump SCM4 Applications

  • Water extraction from wells
  • Drainage and transfer of clean or lightly contaminated water
  • Garden irrigation systems
  • Domestic water supply support



Stream 1 HP Submersible Drainage Pump SCM4 Benefits

  • Stainless steel construction improves corrosion resistance
  • Compact body diameter suits narrow installations
  • High delivery head supports vertical water lifting
  • Optional float switch enables automatic level control



Stream 1 HP Submersible Drainage Pump SCM4 Price List

No. Name Price
1 Stream 1 HP Submersible Drainage Pump SCM4 Price Contact us
