Stream 1.5 HP Submersible Drainage Pump SWVS110

Stream 1.5 HP Submersible Sewage Pump SWVS110

1.1 kW (1.5 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Stream Pumps, Stream Sewage Pump, Stream Submersible Pumps

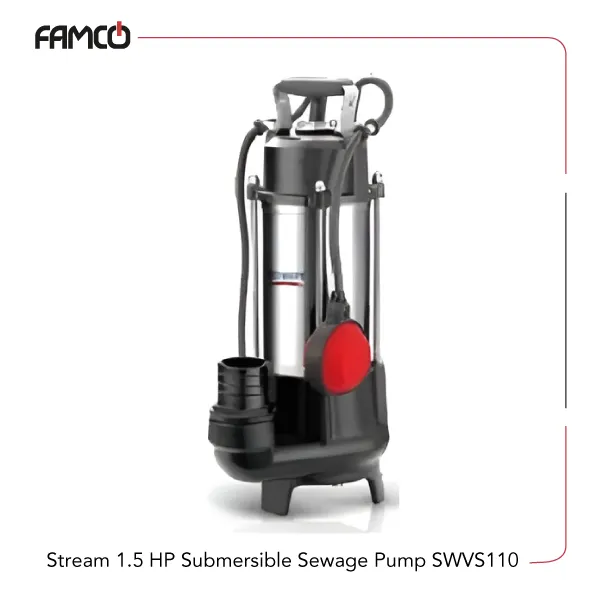

Overview of Stream 1.5 HP Submersible Sewage Pump SWVS110

The Stream 1.5 HP Submersible sewage Pump SWVS110 delivers a maximum flow rate of 27 cubic meters per hour and a head height of 13 meters. Built with a cast iron pump body and impeller, this pump supports submersion up to 5 meters and operates at a power of 1.1 kW (1.5 HP). It features a 2-pole induction motor with IP68 protection and insulation class B, suitable for both single-phase (with capacitor and thermal overload protection) and three-phase power supplies. The pump includes a stainless steel motor bracket, SS316 motor shaft combined with steel, and mechanical seals made from ceramic-graphite and silicon carbide-carbide alloy to ensure durability under liquid temperatures up to +40°C and suspended solids passage up to 45 mm.

Stream 1.5 HP Submersible Sewage Pump SWVS110 Specifications

The Stream submersible pump SWVS110 offers reliable drainage performance with a maximum flow rate of 27 m³/h and a 13-meter delivery head, designed for submersion depths up to 5 meters. Its cast iron construction and IP68 protection ensure durability, while the 2-pole induction motor with insulation class B supports both single-phase and three-phase voltages with thermal overload protection.

As a Stream sewage pump, it handles suspended solids up to 45 mm effectively, making it suitable for various drainage tasks. The mechanical seals utilize ceramic-graphite and silicon carbide-carbide materials, providing dependable sealing under liquid temperatures up to 40°C. With its stainless steel motor bracket and corrosion-resistant motor shaft, this pump combines sturdy materials with efficient operation for consistent drainage solutions.

Specification	Value
Submersible depth	5m
Liquid temperature	+40°C
Ambient temperature	+40°C
Max working pressure	6 bar
Passage of suspended solid	45mm
2-pole induction motor	Yes
Insulation	Class B
Protection	IP 68
Single-phase with capacitor and thermal overload protection	Yes
Voltage	Single-phase, Three-phase with thermal overload protection
Pump body	Cast iron
Motor bracket	Stainless steel
Impeller	Cast iron
Motor shaft	SS316 with CS45#
Mechanical seal	Ceramic-Graphite, Silicon Carbide-Carbide alloy
Winding	Copper
Max flow rate	27 m³/h
Power	1.1 kW
Power (HP)	1.5 HP
Max delivery head	13 m
Weight	22 kg
Dimensions	515210305

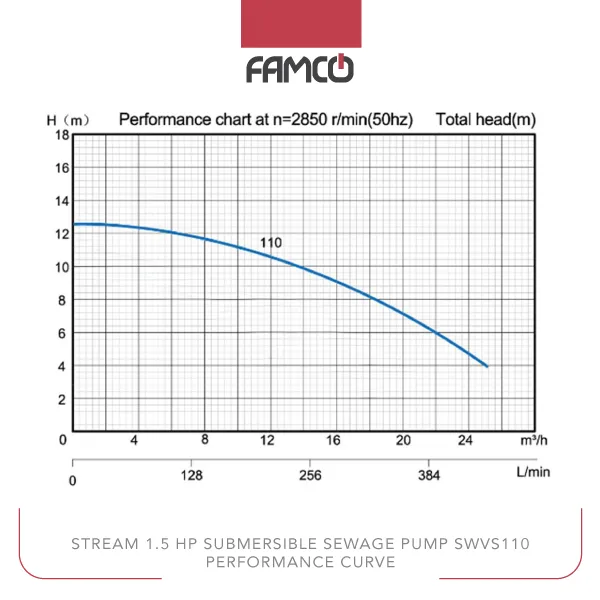

Stream 1.5 HP Submersible Sewage Pump SWVS110 Performance Curve

Stream 1.5 HP Submersible Sewage Pump SWVS110 Applications

Wastewater and sewage pumping
Drainage in construction sites
Irrigation systems
Flood control and water transfer

Stream 1.5 HP Submersible Sewage Pump SWVS110 Benefits

High durability with cast iron construction
Efficient performance with 1.1 kW motor
Suitable for submerged operation with IP 68 protection
Can handle suspended solids up to 45mm

Stream 1.5 HP Submersible Sewage Pump SWVS110 Price List

No.	Name	Price
1	Stream 1.5 HP Submersible Sewage Pump SWVS110 Price	Contact us

Brand	Stream
Applications	Draining flooded areas, Sewage management, Wastewater management
Power (kW)	1.1
Power (HP)	1.5
Maximum Delivery Head (m)	13
Maximum Flow Rate (m3/h)	27
Pump Body	Cast Iron
Impeller Material	Cast Iron
