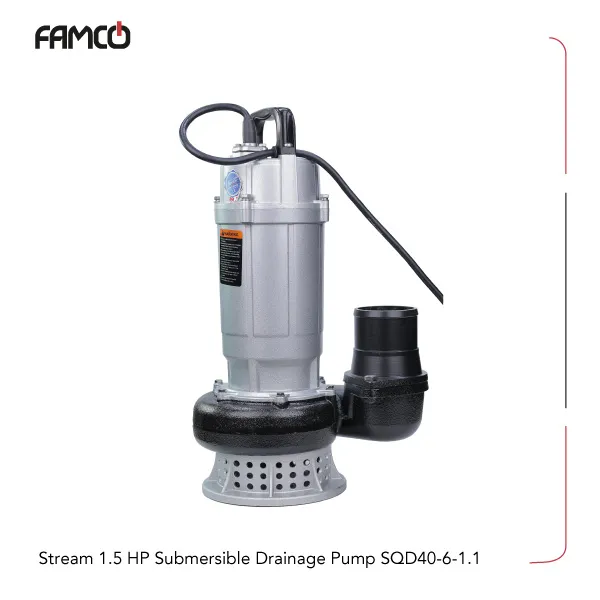

Stream 1.5 HP Submersible Drainage Pump SQD40-6-1.1

Name: Stream 1.5 HP Submersible Drainage Pump SQD40-6-1.1
Price: 277 AED
Availability: InStock

277 AED

1.1 kW (1.5 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Drainage Pump Tags: Stream Drainage Pump, Stream Pumps, Stream Submersible Pumps

Overview of Stream 1.5 HP Submersible Drainage Pump SQD40-6-1.1

This pump is a versatile and reliable device designed for water transfer and pumping tasks. Its lightweight aluminum construction makes it easy to handle and install. Suitable for residential, agricultural, or industrial use, it efficiently moves water with a maximum flow rate of 60 m3/h and lifts water to 11 meters. The inclusion of a float switch allows for automatic operation, reducing manual control. Its solid passage capacity of 5 mm ensures it can handle slightly contaminated liquids without clogging. The pump’s durable components, such as the cast aluminum impeller and stainless steel shaft, ensure long-lasting performance. It operates smoothly at 50 Hz and can handle liquids up to 40°C, making it ideal for various water management tasks. Overall, this pump combines power, durability, and ease of use, making it a practical choice for many water pumping needs.

Stream 1.5 HP Submersible Drainage Pump SQD40-6-1.1 Specifications

This pump features a power output of 1.1 kW, equivalent to 1.5 HP, making it suitable for various water transfer tasks. It can handle a maximum flow rate of 60 cubic meters per hour, providing efficient water movement for different applications. The maximum delivery head is 11 meters, allowing it to lift water effectively over considerable heights. The outlet size is 3 inches, compatible with standard piping systems, and it can pass solids up to 5 mm in diameter, making it suitable for handling slightly contaminated liquids. The pump body is constructed from durable aluminum, helping this Stream drainage pump achieve a lightweight yet sturdy performance. All the while, the impeller is made of cast aluminum for reliable operation. Its mechanical seal is composed of graphite and ceramic, offering good resistance to wear and chemical corrosion. The shaft is made of stainless steel, providing strength and corrosion resistance. This Stream submersible pump operates with a maximum liquid temperature of 40°C, ideal for typical water applications. The pump you see here from the Stream SQD40 series is designed for single-phase power supply at 50 Hz, making it compatible with standard electrical systems. Additionally, it includes a float switch for automatic operation, enhancing convenience and safety during use.

Specification	Value
Power (kW)	1.1
Power (HP)	1.5
Max. flow rate (m3/h)	60
Max. delivery head (m)	11
Outlet (inch)	3
Solid passage (mm)	5
Pump body	aluminum
Impeller	cast aluminum
Mechanical seal	graphite/ceramic
Shaft	stainless steel
Maximum liquid temperature	40 C
Single-phase	Yes
Frequency	50 Hz
Float switch	Included

Stream 1.5 HP Submersible Drainage Pump SQD40-6-1.1 Applications

Irrigation systems in agriculture
Water transfer in residential settings
Industrial fluid handling
Drainage and flood control

Stream 1.5 HP Submersible Drainage Pump SQD40-6-1.1 Benefits

Lightweight and easy to install
Durable aluminum construction
Automatic operation with float switch
Capable of handling solids up to 5 mm

Stream 1.5 HP Submersible Drainage Pump SQD40-6-1.1 Price List

No.	Name	Price
1	Stream 1.5 HP Submersible Drainage Pump SQD40-6-1.1 Price	Contact us

Brand	Stream
Applications	Domestic, Civil, Industrial, Drainage and flood control, Flood control, Water Transfer and Supply
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow Rate (m3/h)	60
Maximum Delivery Head (m)	11
