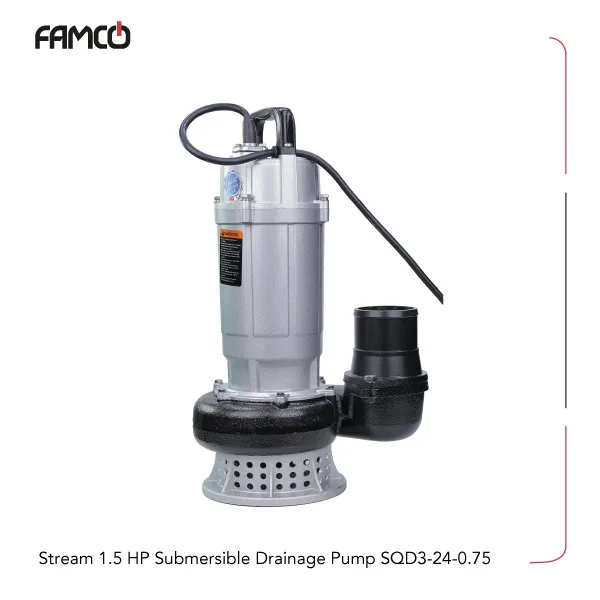

Stream 1.5 HP Submersible Drainage Pump SQD3-24-0.75 Specifications
This pump features a power output of 1.1 kW (1.5 HP), making the presented SQD3 series Stream drainage pump suitable for various water transfer tasks. It can handle a maximum flow rate of 9 cubic meters per hour. The maximum delivery head reaches 25 meters, allowing it to lift water over considerable heights. The outlet size is 1 inch, compatible with standard fittings. It can pass solids up to 5 mm in diameter, suitable for handling slightly contaminated liquids. The pump body is made from durable aluminum, providing strength while keeping the weight manageable. The impeller is cast aluminum, designed for durability and smooth operation. This Stream submersible pump is equipped with mechanical sealing to provide lasting performance, using graphite and ceramic. The shaft is constructed from stainless steel, resistant to corrosion. It operates with a maximum liquid temperature of 40°C, suitable for typical water applications. The pump is single-phase and runs at a frequency of 50 Hz. An included float switch allows for automatic operation, turning the pump on or off based on water level, which adds convenience and safety.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. flow rate (m3/h) | 9 |
| Max. delivery head (m) | 25 |
| Outlet (inch) | 1 |
| Solid passage (mm) | 5 |
| Pump body | aluminum |
| Impeller | cast aluminum |
| Mechanical seal | graphite/ceramic |
| Shaft | stainless steel |
| Maximum liquid temperature | 40 C |
| Single-phase | Yes |
| Frequency | 50 Hz |
| Float switch | included |
Stream 1.5 HP Submersible Drainage Pump SQD3-24-0.75 Applications
- Water drainage in residential and commercial buildings
- Irrigation and agricultural water transfer
- Industrial liquid handling and transfer
- Pool and fountain water circulation
Stream 1.5 HP Submersible Drainage Pump SQD3-24-0.75 Benefits
- High efficiency with a maximum flow rate of 9 m3/h
- Durable construction with aluminum and stainless steel parts
- Automatic operation with included float switch
- Capable of handling solids up to 5 mm for versatile use
Stream 1.5 HP Submersible Drainage Pump SQD3-24-0.75 Price List
| No. | Name | Price |
| 1 | Stream 1.5 HP Submersible Drainage Pump SQD3-24-0.75 Price | Contact us |
