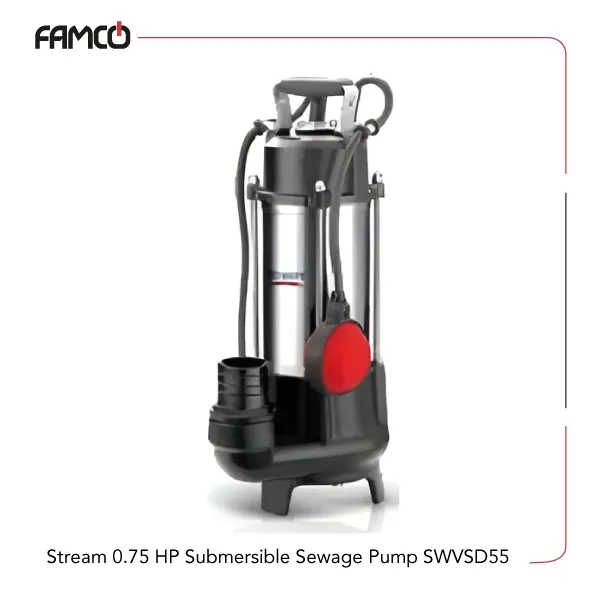

Stream 0.75 HP Submersible Sewage Pump SWVSD55 Specifications
The Stream 0.75 HP Submersible Sewage Pump SWVSD55 is built for small to mid-scale wastewater duties where a compact footprint and steady flow are both needed. In applications where solids handling is necessary, this Stream sewage pump maintains reliable performance thanks to its 45 mm passage capacity and a cast iron impeller that keeps flow consistent even under varied load conditions. Its single-phase power setup with an internal capacitor and thermal overload protection offers a straightforward electrical arrangement for sites that require simple installation and routine operation.
Users choosing a Stream submersible pump often prioritize long-term durability, which here is supported by the cast iron body, stainless steel motor bracket, and SS316 shaft paired with a ceramic-graphite and silicon-carbide mechanical seal set. The SWVSD55 handles up to 18 m³/h at a maximum head of 10 m, keeping it suitable for light commercial pits, residential drainage areas, and general wastewater transfer tasks. Its 5 m allowable immersion depth and Class B insulation complete a practical, efficient package.
| Specification | Value |
| Submersible depth | 5m |
| Liquid temperature | +40°C |
| Ambient temperature | +40°C |
| Max working pressure | 6 bar |
| Passage of suspended solid | 45mm |
| Motor type | 2-pole induction motor |
| Insulation | Class B |
| Protection | IP 68 |
| Power supply | Single-phase with capacitor and thermal overload protection |
| Voltage | Single-phase |
| Pump body | Cast iron |
| Motor bracket | Stainless steel |
| Impeller | Cast iron |
| Motor shaft | SS316 with CS45# |
| Mechanical seal | Ceramic-Graphite, Silicon Carbide-Carbide alloy |
| Winding | Copper |
| Max flow rate | 18 m³/h |
| Power | 0.55 kW / 0.75 HP |
| Max delivery head | 10m |
| Weight | 16kg |
| Dimensions | 490*200*280 |

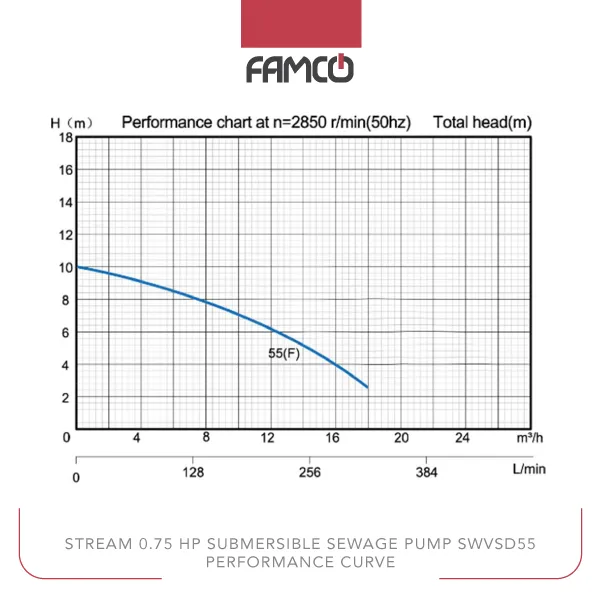

Stream 0.75 HP Submersible Sewage Pump SWVSD55 Performance Curve
Stream 0.75 HP Submersible Sewage Pump SWVSD55 Applications
- Drainage of wastewater and sewage
- Irrigation and water supply systems
- Flood control and water removal
- Industrial water transfer and processing
Stream 0.75 HP Submersible Sewage Pump SWVSD55 Benefits
- Durable cast iron and stainless steel construction
- High flow rate with efficient performance
- Reliable safety features including thermal overload protection
- Passes large solids up to 45mm for versatile use
Stream 0.75 HP Submersible Sewage Pump SWVSD55 Price List
| No. | Name | Price |
| 1 | Stream 0.75 HP Submersible Sewage Pump SWVSD55 Price | Contact us |
