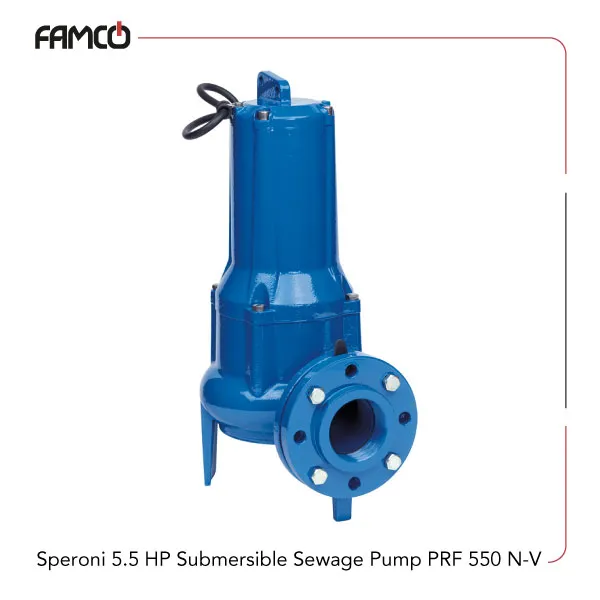

Speroni 5.5 HP Submersible Sewage Pump PRF 550 N-V Specifications
This pump features a powerful 5.5 HP (4 kW) three-phase motor with an oil bath for durability and efficiency. It operates at 400V and 50Hz, with an insulation class F for safety and performance. The IP 68 protection rating ensures it is fully protected against dust and water ingress, making it suitable for demanding environments. It can handle liquids up to 35°C for home use, and up to 50°C for other applications. This Speroni sewage pump can be immersed up to 20 meters deep with a suitable cable, and it can pass solids up to 70 mm in diameter. Its maximum flow rate reaches 60 cubic meters per hour or 1000 liters per minute, with a maximum head of 24 meters. The motor is designed with a 2 pole induction system, ensuring reliable operation. It is suitable for various industrial and domestic applications, especially where high flow and durability are needed. The pump’s design allows it to operate efficiently in different liquid temperatures and depths, making it versatile for multiple uses. The minimum suction level is 190 mm, which helps in proper installation and operation. Overall, this pump combines power, durability, and versatility for demanding pumping tasks.
| Specification | Value |
| Power (HP) | 5.5 |
| Power (kW) | 4 |
| Number of phases | three-phase |
| Ampere | 12 A |
| Maximum Flow rate (m3/h) | 60 |
| Maximum Flow rate (l/min) | 1000 |
| Maximum head (m) | 24 |
| Motor type | 2 pole induction motor in oil bath |
| Voltage | 400V |
| Frequency | 50Hz |
| Insulation Class | F |
| Protection | IP 68 |
| Liquid temperature | up to 35°C |
| Max. liquid temperature for other uses | 50°C |
| Maximum immersion depth | 20 meters |
| Cable length | appropriate length |
| Passing solids | Ø 70 mm |
| Min. suction level | 190 mm |

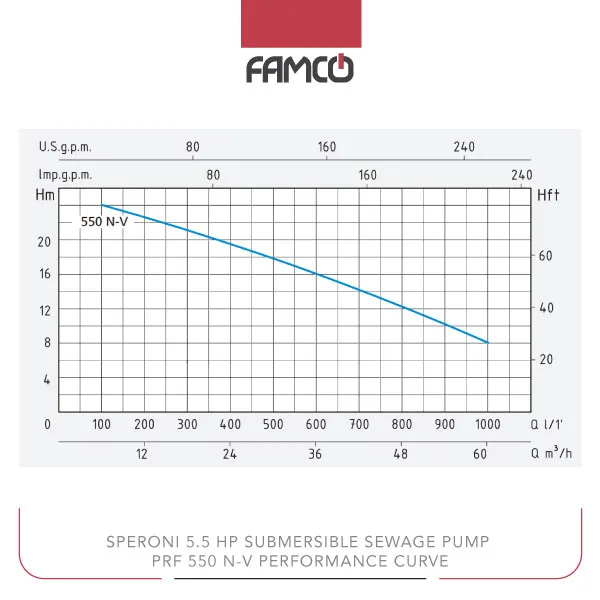

Speroni 5.5 HP Submersible Sewage Pump PRF 550 N-V Performance Curve
| Q (m3/h) | 6 | 12 | 18 | 24 | 36 | 42 | 48 | 54 | 60 |
| Q (l/min) | 100 | 200 | 300 | 400 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) | 24 | 23 | 21 | 19 | 16 | 14 | 12 | 10 | 8 |
Speroni 5.5 HP Submersible Sewage Pump PRF 550 N-V Applications
- Industrial fluid transfer and drainage
- Home sewage and wastewater pumping
- Irrigation systems for farms
- Construction site dewatering
Speroni 5.5 HP Submersible Sewage Pump PRF 550 N-V Benefits
- High flow capacity for large volume handling
- Durable construction with IP 68 protection
- Suitable for deep immersion up to 20 meters
- Passes solids up to 70 mm for versatile use
Speroni 5.5 HP Submersible Sewage Pump PRF 550 N-V Price List
| No. | Name | Price |
| 1 | Speroni 5.5 HP Submersible Sewage Pump PRF 550 N-V Price | Contact us |
