Speroni 4 HP Three-phase Multistage Submersible Pump SP 200-17 Specifications
This robust submersible pump features a 4 HP (3 kW) motor designed for continuous operation. It can generate a head of 108 meters and handle a maximum flow rate of 200 liters per minute. The pump is equipped with 17 stages, making it suitable for deep immersion up to 150 meters. It operates on a three-phase power supply of 400V at 50Hz, with a motor that has 2 poles and an insulation class of F, ensuring durability and safety. The protection degree is IP68, making it fully waterproof and dustproof for reliable underwater use. The motor shaft is made of stainless steel AISI 304, providing corrosion resistance. The mechanical seal is ceramic/graphite, which offers excellent sealing performance. The impellers of this Speroni pump are made of Noryl, a durable plastic material that withstands various liquids. The pump can handle liquids with a temperature up to 35°C and sand content up to 50 g/m3, making asuitable solution out of this Speroni submersible pump for various applications involving water transfer, drainage, or industrial processes requiring high performance and reliability.
| Specification | Value |
| Power (HP) | 4 |
| Power (kW) | 3 |
| Head (m) | 108 |
| Max. flow rate (l/min) | 200 |
| Max. immersion depth (m) | 150 |
| Number of stages | 17 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

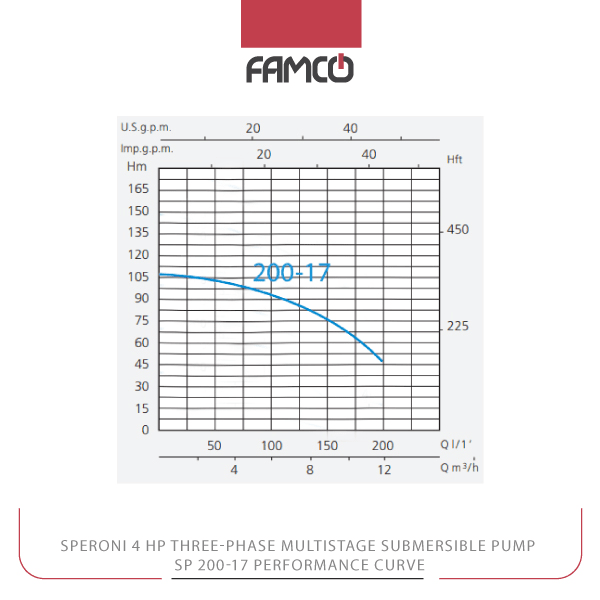

Speroni 4 HP Three-phase Multistage Submersible Pump SP 200-17 Performance Data
| M3/h | 0 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 | 12 |
| l/min | 0 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 |
| Head (m) | 108 | 106 | 102 | 98 | 96 | 94 | 87 | 79 | 70 | 58 | 46 |

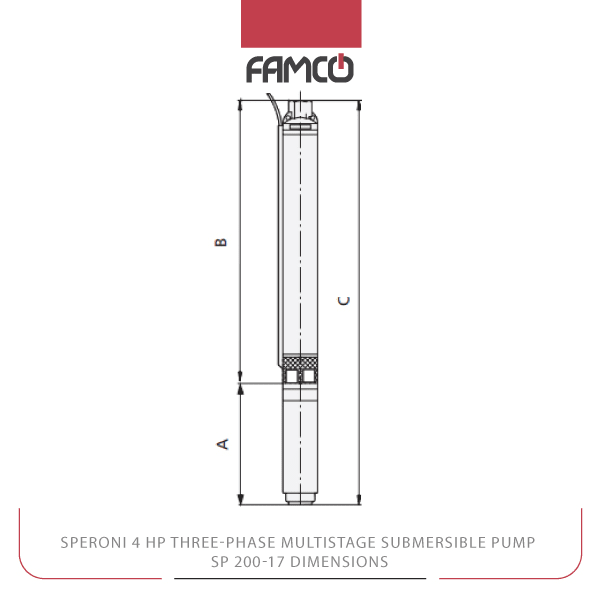

Speroni 4 HP Three-phase Multistage Submersible Pump SP 200-17 Dimensions
| Dimensions (mm) | A | 607 |
| B | 697 | |
| C | 1304 |
Speroni 4 HP Three-phase Multistage Submersible Pump SP 200-17 Applications
- Deep well water extraction
- Industrial water transfer
- Drainage and flood control
- Water treatment plants
Speroni 4 HP Three-phase Multistage Submersible Pump SP 200-17 Benefits
- High efficiency with 17-stage design
- Durable stainless steel shaft and ceramic seal
- Suitable for continuous operation
- Resistant to dust and water with IP68 rating
Speroni 4 HP Three-phase Multistage Submersible Pump SP 200-17 Price List
| No. | Name | Price |
| 1 | Speroni 4 HP Three-phase Multistage Submersible Pump SP 200-17 Price | Contact us |
