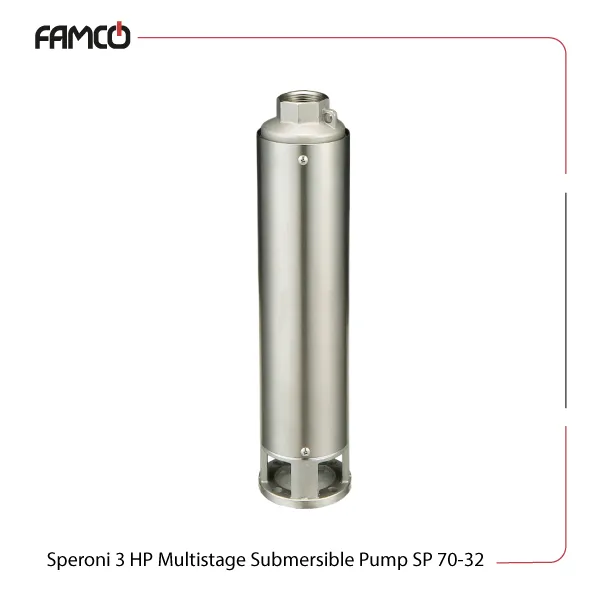

Speroni 3 HP Multistage Submersible Pump SP 70-32 Specifications
This powerful submersible pump features a 3 HP (2.2 kW) motor designed for continuous duty. It can generate a head of 208 meters and handle a maximum flow rate of 70 liters per minute. The pump is capable of operating at depths up to 150 meters underwater and is compatible with liquids up to 35°C. Supporting both single-phase (230V) and three-phase (400V) power supplies, this Speroni submersible pumping solution is equipped with a 50 Hz frequency with two poles. The motor’s insulation class is F, giving it added protection. Its protection degree of IP68 makes a fully waterproof and dustproof out of the presented Speroni pump. The motor shaft is made of stainless steel AISI 304, providing corrosion resistance. The mechanical seal is ceramic/graphite, which enhances sealing performance. The impellers are made of Noryl, a durable plastic material suitable for various liquids. The pump’s design emphasizes longevity, efficiency, and versatility for different industrial or water management tasks.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Head (m) | 208 |
| Max. flow rate (l/min) | 70 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

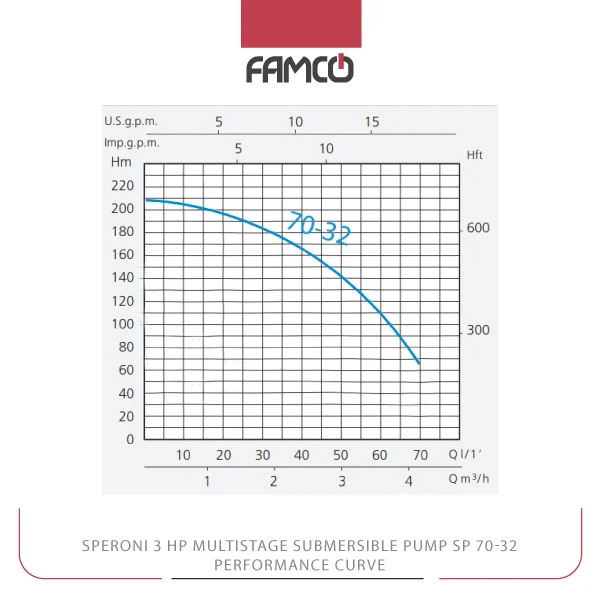

Speroni 3 HP Multistage Submersible Pump SP 70-32 Performance Data
| M3/h | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| Head (m) | 208 | 206 | 200 | 194 | 187 | 177 | 165 | 152 | 138 | 104 | 62 |

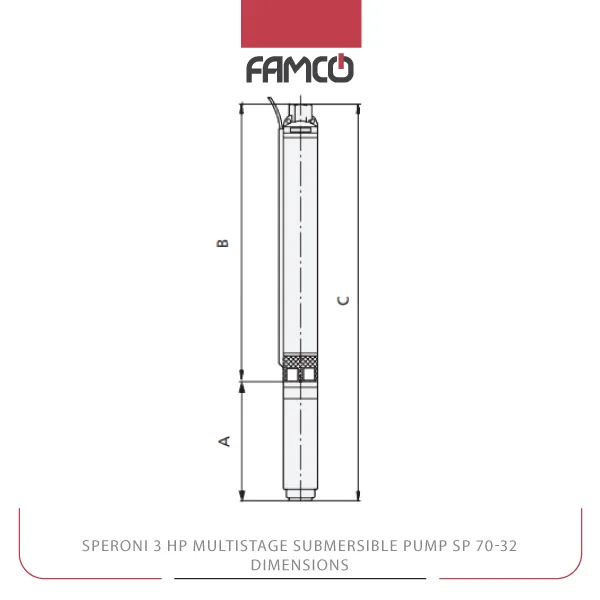

Speroni 3 HP Multistage Submersible Pump SP 70-32 Dimensions
| Dimensions (mm) | A | 495 |
| B | 749 | |
| C | 1244 |
Speroni 3 HP Multistage Submersible Pump SP 70-32 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Wastewater management
Speroni 3 HP Multistage Submersible Pump SP 70-32 Benefits
- High efficiency with 3 HP power output
- Durable stainless steel shaft for corrosion resistance
- Suitable for deep immersion up to 150 meters
- IP68 protection for reliable outdoor use
Speroni 3 HP Multistage Submersible Pump SP 70-32 Price List
| No. | Name | Price |
| 1 | Speroni 3 HP Multistage Submersible Pump SP 70-32 Price | Contact us |
There are no reviews yet.
