Speroni 3 HP Multistage Submersible Pump SP 200-13 Specifications
This product features a powerful 3 HP (2.2 kW) motor designed for continuous duty operation. It can generate a head of 82 meters and handle a maximum flow rate of 200 liters per minute. Suitable for deep immersion, the SP 200-13 Speroni submersible pump can operate at depths up to 150 meters. The device supports both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50 Hz and two poles. Its insulation class is F, ensuring this Speroni pump’s good thermal resistance, and it has an IP68 protection degree, making it highly resistant to water and dust. The motor shaft is made of durable stainless steel AISI 304, and the mechanical seal is composed of ceramic and graphite, providing reliable sealing performance. The impellers are made from Noryl, a tough and chemical-resistant material, suitable for various liquid types. The pump is designed to work with liquids up to 35°C and can handle sand content up to 50 g/m3, making it ideal for challenging environments with particulate matter. Its robust construction and high efficiency make it suitable for industrial, agricultural, and water management applications, ensuring long-lasting performance even under demanding conditions.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Head (m) | 82 |
| Max. flow rate (l/min) | 200 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

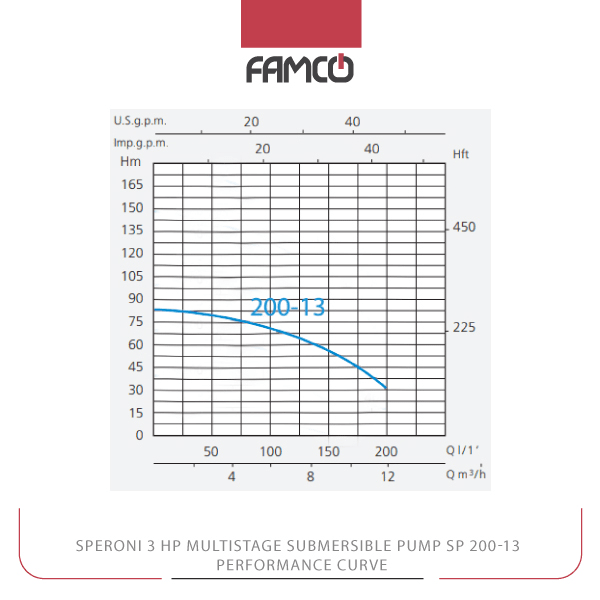

Speroni 3 HP Multistage Submersible Pump SP 200-13 Performance Data
| M3/h | 0 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 | 12 |
| l/min | 0 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 |
| Head (m) | 82 | 80 | 78 | 75 | 73 | 71 | 66 | 59 | 50 | 40 | 30 |

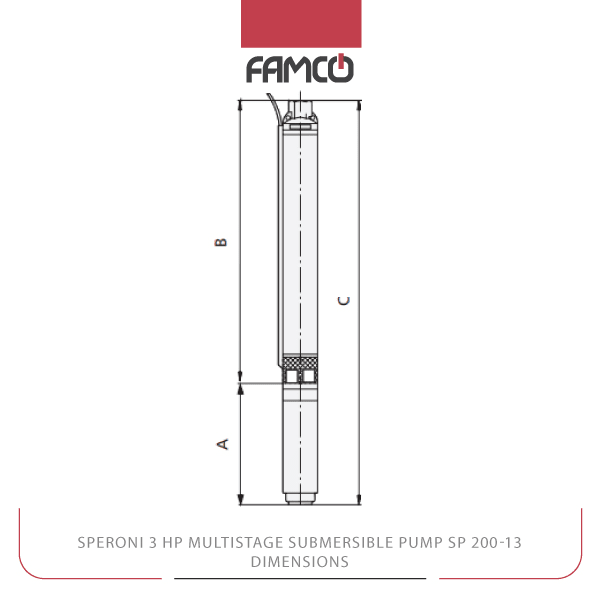

Speroni 3 HP Multistage Submersible Pump SP 200-13 Dimensions
| Dimensions (mm) | A | 405 |
| B | 356 | |
| C | 761 |
Speroni 3 HP Multistage Submersible Pump SP 200-13 Applications
- Water transfer in industrial settings
- Irrigation and agricultural watering
- Drainage of flooded areas
- Municipal water management
Speroni 3 HP Multistage Submersible Pump SP 200-13 Benefits
- High durability with stainless steel shaft and IP68 protection
- Flexible power options for different setups
- Capable of handling deep immersion and high flow rates
- Designed for continuous operation in tough environments
Speroni 3 HP Multistage Submersible Pump SP 200-13 Price List
| No. | Name | Price |
| 1 | Speroni 3 HP Multistage Submersible Pump SP 200-13 Price | Contact us |
