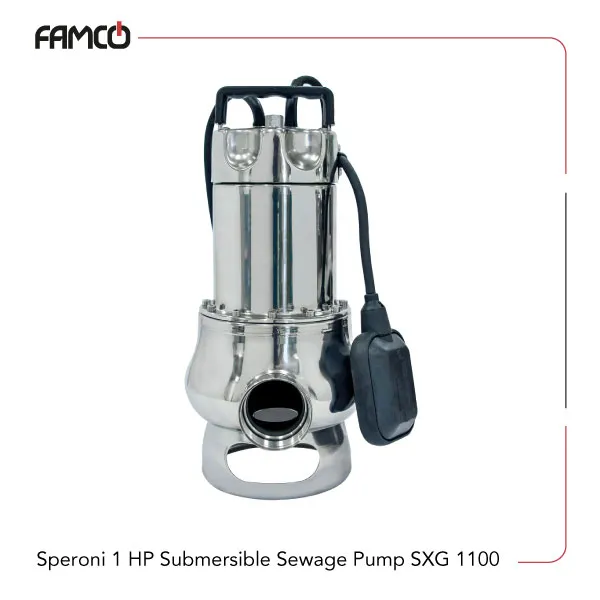

Speroni 1 HP Submersible Sewage Pump SXG 1100 Specifications
Speroni 1 HP submersible sewage pump SXG 1100 features a 1 HP (0.75 kW) motor designed for single-phase power supply, making it suitable for various home and light industrial applications. It can handle a maximum flow rate of 18 cubic meters per hour, equivalent to 300 liters per minute, and can generate a maximum head of 8.2 meters. The pump is built to operate efficiently with liquids up to 35°C, ensuring reliable performance in typical household or small-scale industrial environments. This Speroni sewage pump is capable of being submerged up to 5 meters deep, making it ideal for water transfer, drainage, or irrigation tasks. The inlet grain size is Ø 35 mm, and it requires a minimum suction level of 65 mm for proper operation. The device is constructed with high-quality stainless steel AISI 304 for all critical components, including the motor casing, external pump body, impeller, suction grid, and shaft with rotor, ensuring durability and resistance to corrosion. The mechanical seal combines ceramic, graphite, and NBR materials, providing a secure seal for long-lasting use. The pump has an insulation class of F and a protection degree of IP 68, making it suitable for continuous operation in harsh environments and resistant to dust and water ingress.
| Specification | Value |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| Number of phases | Single-phase |
| Maximum Flow rate (m3/h) | 18 |
| Maximum Flow rate (l/min) | 300 |
| Maximum head (m) | 8.2 |
| Liquid temperature | up to 35°C |
| Maximum immersion depth | 5 meters |
| Grain size inlet | Ø 35 mm |
| Min. suction level | 65 mm |
| Insulation Class | F |
| Protection degree | IP 68 |
| Motor casing | Stainless Steel AISI 304 |
| External pump body | Stainless Steel AISI 304 |
| Impeller | Stainless Steel AISI 304 |
| Suction grid | Stainless Steel AISI 304 |
| Shaft with rotor | Stainless Steel AISI 304 |
| Mechanical seal | Ceramic/Graphite/NBR |

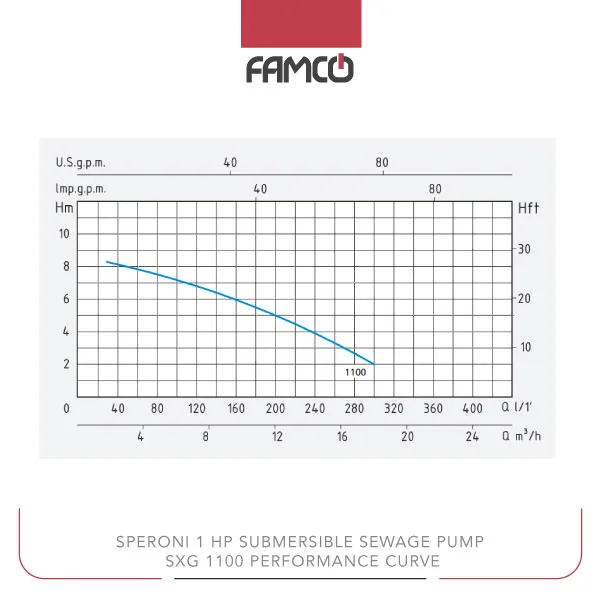

Speroni 1 HP Submersible Sewage Pump SXG 1100 Performance Data
| Q (m3/h) | 1.8 | 3.6 | 5.4 | 7.2 | 9 | 12 | 15 | 18 |
| Q (l/min) | 30 | 60 | 90 | 120 | 150 | 200 | 250 | 300 |
| Head (m) | 8.2 | 8 | 7.5 | 7 | 6.5 | 5 | 3.9 | 2 |
Speroni 1 HP Submersible Sewage Pump SXG 1100 Applications
- Home water transfer and drainage
- Irrigation systems for gardens and farms
- Water pumping for small industrial processes
- Drainage of flooded areas or basements
Speroni 1 HP Submersible Sewage Pump SXG 1100 Benefits
- High durability with stainless steel construction
- Reliable performance with a powerful motor
- Suitable for submerged operation up to 5 meters
- Corrosion-resistant and easy to maintain
Speroni 1 HP Submersible Sewage Pump SXG 1100 Price List
| No. | Name | Price |
| 1 | Speroni 1 HP Submersible Sewage Pump SXG 1100 Price | Contact us |
