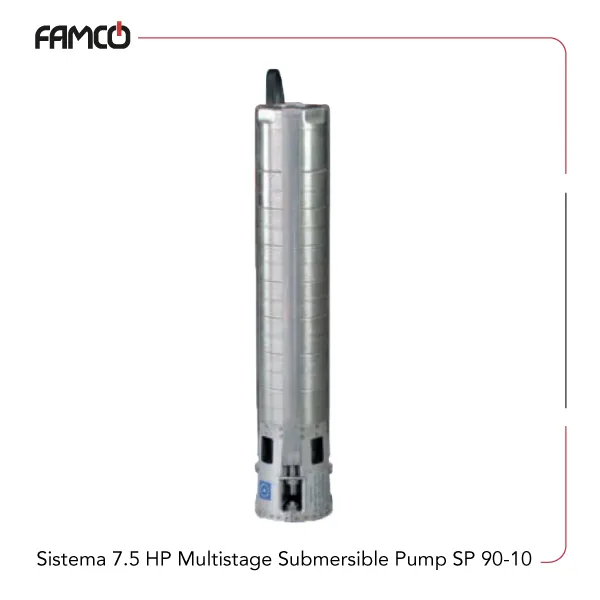

Sistema 7.5 HP Multistage Submersible Pump SP 90-10 Specifications
Sistema 7.5 HP multistage submersible pump SP 90-10 features a powerful 5.5 kW (7.5 HP) motor, suitable for various demanding applications. It can handle flow rates from 50 to 383 liters per minute, equivalent to 3 to 23 cubic meters per hour, making it versatile for different operational needs. The head range varies from 48 to 108 meters, providing strong vertical lift capacity. The pump has a DN of 2.5 inches, ensuring good flow capacity. Weighing only 13.7 kg, it is relatively lightweight for its power. This Sistema submersible pump can operate at a maximum immersion depth of 350 meters, ideal for deep submersion tasks. The maximum liquid temperature it can handle is 35°C, suitable for standard water applications. It can tolerate sand content up to 50 grams per cubic meter, making it suitable for environments with some particulate matter. The pump’s body is made of durable cast iron, ensuring longevity and resistance to corrosion. The motor shaft is crafted from stainless steel AISI 304, providing strength and corrosion resistance. The insulation class IP68 guarantees protection against dust and water ingress, suitable for harsh conditions.
| Specification | Value |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Flow rate range (l/min) | 50-383 |
| Flow rate range (m3/h) | 3-23 |
| Head range (m) | 48-108 |
| DNM | 2″½ |
| Weight (kg) | 13.7 |
| Maximum immersion depth (mt) | 350 |
| Max Liquid temperature (°C) | 35 |
| Sand content (g/m3) | 50 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Motor shaft | stainless steel AISI 304 |
Sistema 7.5 HP Multistage Submersible Pump SP 90-10

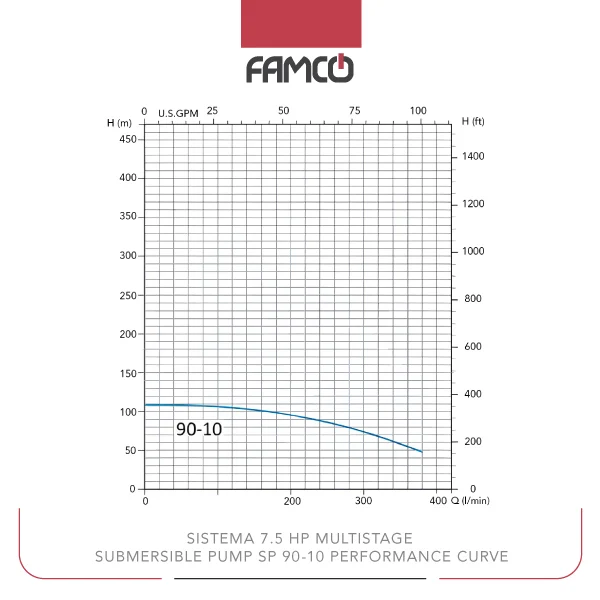

| Flow rate (l/min) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| Flow rate (m3/h) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| Head (m) | 108 | 107 | 102 | 95 | 86 | 74 | 58 | 48 |
Sistema 7.5 HP Multistage Submersible Pump SP 90-10 Applications
- Deep well water extraction
- Industrial drainage systems
- Municipal water supply
- Agricultural irrigation
Sistema 7.5 HP Multistage Submersible Pump SP 90-10 Benefits
- High power for demanding tasks
- Durable cast iron construction
- Corrosion-resistant stainless steel shaft
- Wide flow and head range for versatility
Sistema 7.5 HP Multistage Submersible Pump SP 90-10 Price List
| No. | Name | Price |
| 1 | Sistema 7.5 HP Multistage Submersible Pump SP 90-10 Price | Contact us |
There are no reviews yet.
