Sistema 7.5 HP Multistage Submersible Water Pump SP 150-06 Specifications
The Sistema 7.5 HP multistage submersible water pump SP 150-06 is powered by a 5.5 kW (7.5 HP) motor, designed to move between 150 and 700 liters of water per minute (9 to 42 cubic meters per hour). It works effectively within a head range of 25 to 64 meters, making it well-suited for deep well use. The pump body is made from cast iron, and it uses a ceramic/graphite mechanical seal to minimize wear during operation. It can handle water temperatures up to 35°C and is rated for immersion depths of up to 350 meters. With insulation class B and an IP68 protection rating, this Sistema submersible pump is fully sealed against dust and continuous submersion. Despite its power, it weighs just 15.2 kg, which makes handling, installation, and servicing easier. Built for 6-inch deep wells (DN 150 mm diameter), the SP 150-06 is a good fit for irrigation, municipal water supply, and industrial water systems. Its design and performance allow it to move large volumes of water efficiently in demanding applications.
| Specification | Value |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Flow rate (l/min) | 150-700 |
| Flow rate (m3/h) | 9-42 |
| Head Range (m) | 25-64 |
| DNM (“) | 3 |
| Weight (kg) | 15.2 |
| Maximum immersion depth (mt) | 350 |
| Liquid temperature (°C) | 35 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Mechanical seal | ceramic/graphite |
| Suitable for | 6″ deep wells (DN 150 mm) |

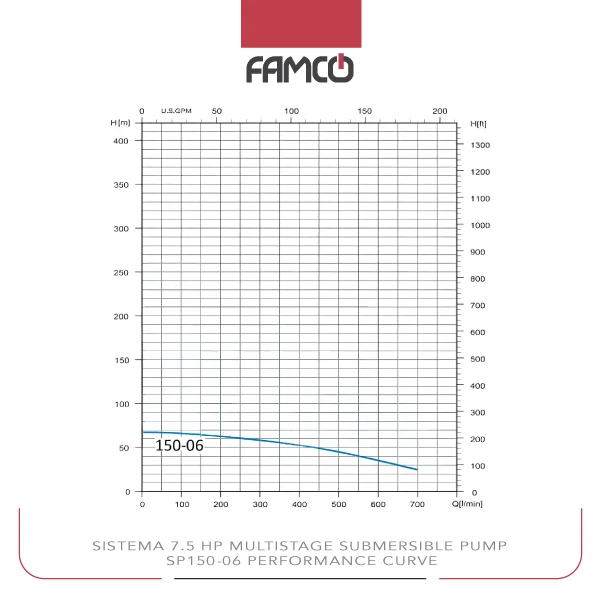

Sistema 7.5 HP Multistage Submersible Water Pump SP 150-06 Performance Data
| Flow rate (m3/h) | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 42 |
| Flow rate (L/min) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| Head (m) | 64 | 62 | 60 | 58 | 56 | 52 | 49 | 45 | 40 | 36 | 30 | 25 |
Sistema 7.5 HP Multistage Submersible Water Pump SP 150-06 Applications
- Irrigation systems for agriculture
- Municipal water supply projects
- Industrial water transfer
- Deep well water extraction
Sistema 7.5 HP Multistage Submersible Water Pump SP 150-06 Benefits
- High flow capacity for efficient water transfer
- Durable cast iron construction for longevity
- Reliable sealing with ceramic/graphite seal
- Suitable for deep wells up to 350 meters
Sistema 7.5 HP Multistage Submersible Water Pump SP 150-06 Price List
| No. | Name | Price |
| 1 | Sistema 7.5 HP Multistage Submersible Water Pump SP 150-06 Price | Contact us |
