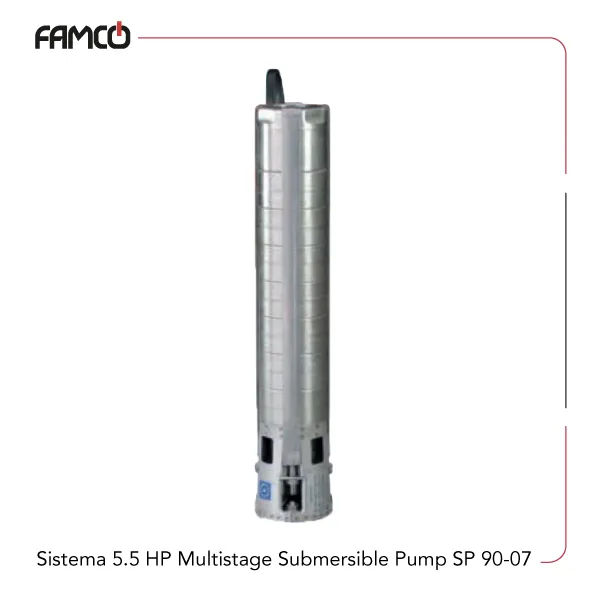

Sistema 5.5 HP Multistage Submersible Pump SP 90-07 Specifications
Sistema 5.5 HP multistage submersible pump SP 90-07 features a powerful 4 kW (5.5 HP) motor, suitable for demanding applications. It can handle flow rates from 50 to 383 liters per minute, equivalent to 3 to 23 cubic meters per hour. The pump provides a head range between 32 and 75 meters, making it ideal for high-lift tasks. Its connection size is 2.5 inches (DNM), ensuring compatibility with various piping systems. The device weighs 13.7 kilograms, making it relatively lightweight for its power. This Sistema submersible pump can operate at a maximum immersion depth of 350 meters, suitable for deep well or submersible applications. The maximum liquid temperature it can handle is 35°C, which is typical for water and similar fluids. The pump’s body is made of durable cast iron, offering strength and longevity. The motor shaft is constructed from stainless steel AISI 304, providing corrosion resistance. The insulation class is IP68, indicating excellent protection against dust and water ingress, suitable for harsh environments. Sand content handling is not specified, but the pump is designed for use in environments with minimal sand or debris. Overall, this pump combines power, durability, and versatility for various industrial and water management tasks.
| Specification | Value |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Flow rate range (l/min) | 50-383 |
| Flow rate range (m3/h) | 3-23 |
| Head range (m) | 32-75 |
| DNM | 2″½ |
| Weight (kg) | 13.7 |
| Maximum immersion depth (m) | 350 |
| Max Liquid temperature (°C) | 35 |
| Sand content (g/m3) | Not specified |
| Insulation class | B |
| Protection Degree | IP68 |
| Body | Cast iron |
| Motor shaft | Stainless steel AISI 304 |

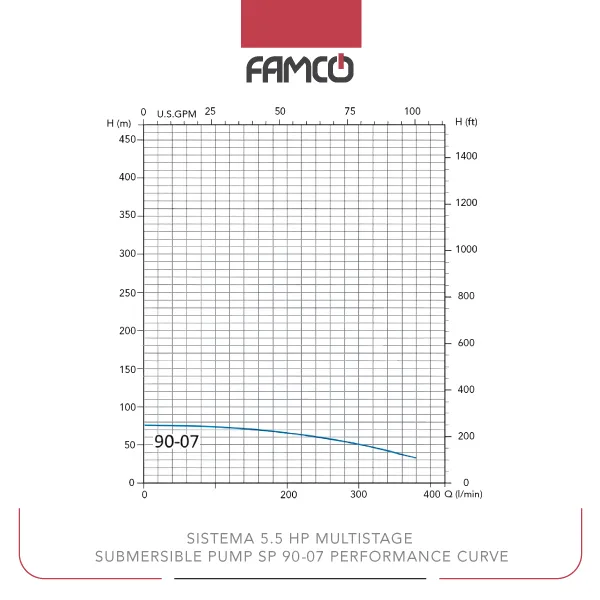

Sistema 5.5 HP Multistage Submersible Pump SP 90-07 Performance Curve
| Flow rate (l/min) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| Flow rate (m3/h) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| Head (m) | 75 | 74 | 70 | 66 | 59 | 50.5 | 40 | 32 |
Sistema 5.5 HP Multistage Submersible Pump SP 90-07 Applications
- Deep well water extraction
- Industrial water transfer
- Drainage and flood control
- Irrigation systems
Sistema 5.5 HP Multistage Submersible Pump SP 90-07 Benefits
- High power for demanding tasks
- Corrosion-resistant stainless steel shaft
- Suitable for deep immersion up to 350 meters
- Durable cast iron body for long-lasting use
Sistema 5.5 HP Multistage Submersible Water SP 90-07 Price List
| No. | Name | Price |
| 1 | Sistema 5.5 HP Multistage Submersible Pump SP 90-07 Price | Contact us |
There are no reviews yet.
