Sistema 4 HP Multistage Submersible Pump ST 80-11

3 kW (4 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Sistema Pumps, Sistema Submersible Pump

Overview of Sistema 4 HP Multistage Submersible Pump ST 80-11

This pump is a high-performance device designed for demanding applications. It features a robust 4 HP motor that ensures reliable operation. With a maximum flow rate of 24 m3/h and a head of 70 meters, it can handle large volumes of liquid efficiently. Its lightweight design makes it easy to install and maintain. The pump is suitable for deep water environments, with a maximum immersion depth of 150 meters. It is built to withstand harsh conditions, thanks to its IP68 protection rating and insulation class F. Ideal for industrial, commercial, or large-scale water management tasks, this pump offers a combination of power, durability, and flexibility for various fluid transfer needs.

Sistema 4 HP Multistage Submersible Pump ST 80-11 Specifications

This product features a powerful 3 kW (4 HP) motor, capable of delivering a maximum flow rate of 24 cubic meters per hour or 400 liters per minute. It can generate a maximum head of 70 meters, making it suitable for various high-demand applications. The device weighs only 8.1 kilograms, ensuring ease of handling and installation. This Sistema submersible pump is designed to operate at a maximum liquid temperature of 35°C, which makes it ideal for specific fluid types. The pump is built with an insulation class F, providing good thermal protection, and has an IP68 protection rating, making it highly resistant to dust and water ingress. Its maximum immersion depth is 150 meters, allowing it to be used in deep water environments. Overall, this product combines power, durability, and versatility, suitable for demanding industrial or commercial tasks involving fluid transfer or pumping in challenging conditions.

Specification	Value
Power (kW)	3
Power (HP)	4
Maximum Flow rate (m3/h)	24
Maximum Flow rate (l/min)	400
Maximum head (m)	70
Weight (kg)	8.1
Maximum depth of immersion (m)	150
Liquid temperature (°C)	35
Insulation class	F
Protection class	IP68

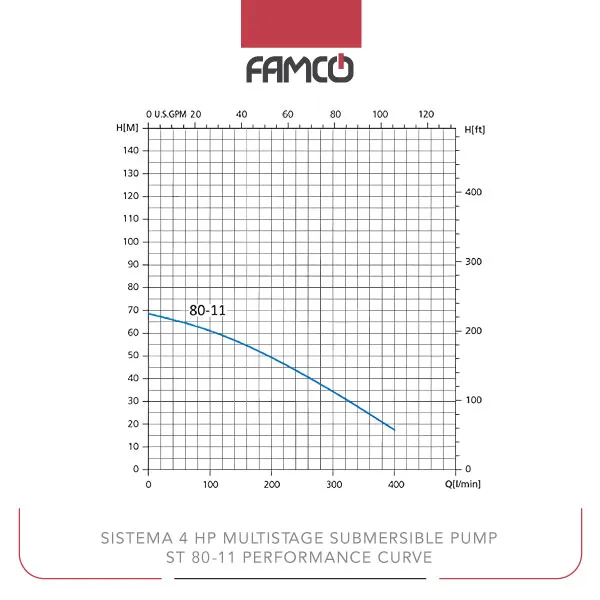

Sistema 4 HP Multistage Submersible Pump ST 80-11 Performance Data

Q (m3/h)	0	8.4	9.6	10.8	12	13	14.4	13	17	18	19	20	22	23	24
Q (l/min)	0	140	160	180	200	220	240	260	280	300	320	340	360	380	400
H (m)	70	57	54	52	49	47	44	41	38	34	31	28	24	21	18

Sistema 4 HP Multistage Submersible Pump ST 80-11 Applications

Industrial water transfer
Deep well pumping
Municipal water systems
Flood control and drainage

Sistema 4 HP Multistage Submersible Pump ST 80-11 Benefits

High power output for demanding tasks
Deep immersion capability up to 150 meters
Durable and resistant to harsh environments
Lightweight and easy to install

Sistema 4 HP Multistage Submersible Pump ST 80-11 Price List

No.	Name	Price
1	Sistema 4 HP Multistage Submersible Pump ST 80-11 Price	Contact us

Brand	Sistema
Power (HP)	4
Power (kW)	3
Maximum Flow Rate (L/min)	400
Maximum Flow Rate (m3/h)	24
Maximum Delivery Head (m)	70
Weight (kg)	8.1
Maximum immersion depth (m)	150
Maximum Liquid Temperature (°C)	35
Insulation Class	F
Degree of Protection	IP68
