Sistema 3 HP Multistage Submersible Pump ST 18-27

2.2 kW (3 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Sistema Pumps, Sistema Submersible Pump

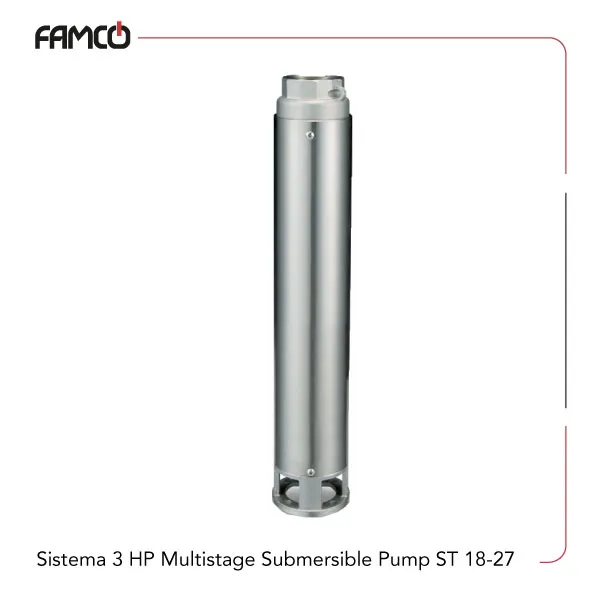

Overview of Sistema 3 HP Multistage Submersible Pump ST 18-27

This product is a high-performance submersible pump designed for deep water applications. It is built to operate efficiently under demanding conditions, with a maximum immersion depth of 150 meters. Its robust construction and high protection rating IP68 make it suitable for outdoor and underwater environments. The pump is ideal for use in irrigation, water supply systems, and industrial processes. Its compact size and lightweight design allow easy installation and maintenance. With a powerful motor and high flow capacity, it ensures reliable operation even in challenging settings. The device’s ability to handle water temperatures up to 35°C makes it versatile for various liquid transfer needs.

Sistema 3 HP Multistage Submersible Pump ST 18-27 Specifications

This product features a power output of 2.2 kW, equivalent to 3 HP, making it suitable for various demanding applications. It can handle a flow rate of 6 cubic meters per hour or 100 liters per minute, ensuring efficient liquid transfer. The maximum head height it can achieve is 175 meters, which is ideal for deep well or high-rise building applications. This Sistema submersible pump weighs 6.2 kilograms, making it portable yet sturdy. It is designed to operate at a maximum liquid temperature of 35°C, ensuring safe and reliable performance in typical environments. The insulation class is F, providing good thermal protection, while the protection class IP68 guarantees complete protection against dust and water ingress, suitable for submersible use up to 150 meters deep. These specifications make this product versatile for various industrial, agricultural, and domestic applications, especially where durability and high performance are required.

Specification	Value
Power (kW)	2.2
Power (HP)	3
Maximum Flow rate (m3/h)	6
Maximum Flow rate (l/min)	100
Maximum head (m)	175
Weight (kg)	6.2
Maximum depth of immersion	150mt
Liquid temperature (°C)	35
Insulation class	F
Protection class	IP68

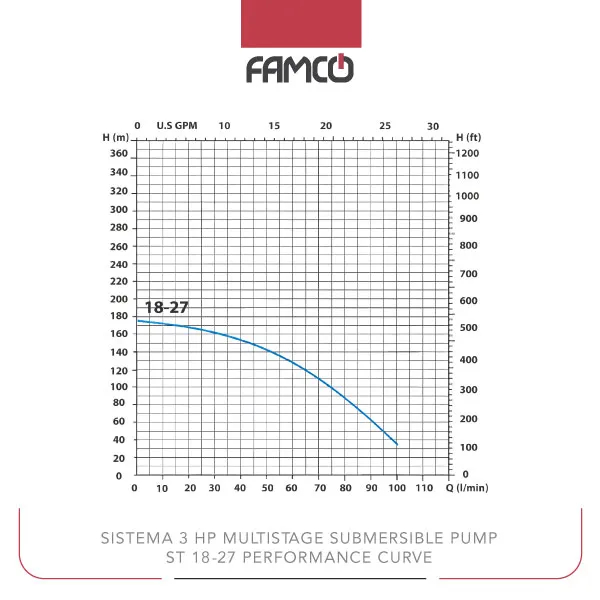

Sistema 3 HP Multistage Submersible Pump ST 18-27 Performance Data

Q (m3h)	0	1.5	1.8	2.1	2.4	3	3.6	4.2	4.8	5.4	6
Q (l/min)	0	25	30	35	40	50	60	70	80	90	100
H (m)	175	164	161	157	152	141	127	109	87	61	35

Sistema 3 HP Multistage Submersible Pump ST 18-27 Applications

Deep well water extraction
Irrigation systems in agriculture
Industrial water transfer
Water supply for residential or commercial buildings

Sistema 3 HP Multistage Submersible Pump ST 18-27 Benefits

High efficiency with a powerful 3 HP motor
Suitable for deep water applications up to 150 meters
Durable and protected against dust and water ingress
Lightweight and easy to install or maintain

Sistema 3 HP Multistage Submersible Pump ST 18-27 Price List

No.	Name	Price
1	Sistema 3 HP Multistage Submersible Pump ST 18-27 Price	Contact us

Brand	Sistema
Power (HP)	3
Power (kW)	2.2
Maximum Flow Rate (L/min)	100
Maximum Flow Rate (m3/h)	6
Weight (kg)	6.2
Maximum Delivery Head (m)	175
Maximum immersion depth (m)	150
Maximum Liquid Temperature (°C)	35
Insulation Class	F
Degree of Protection	IP68
