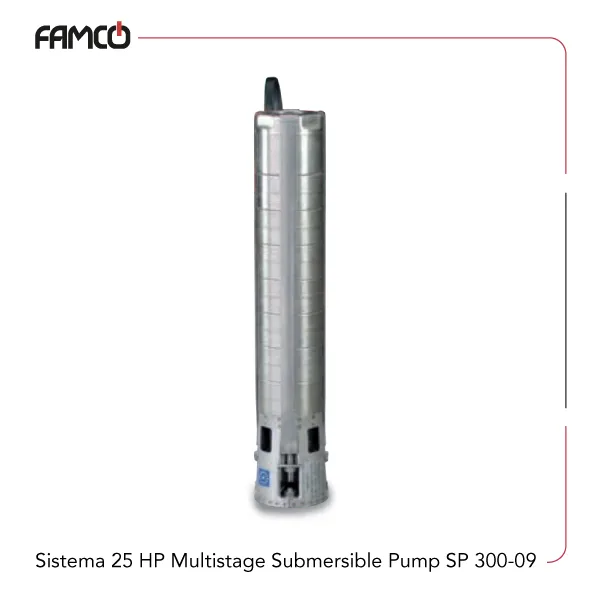

Sistema 25 HP Multistage Submersible Pump SP 300-09

18.5 kW (25 HP)

Single- and three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Sistema 25 HP Multistage Submersible Pump SP 300-09

Sistema 25 HP multistage submersible pump SP 300-09, with its 18.5 kW (25 HP) motor, is designed to move water with strength and precision. Capable of delivering flow rates from 300 to 1300 liters per minute, it adapts smoothly to different demands, whether steady supply or high-output performance. Its head range of 38 to 122 meters gives it the reach to lift water confidently across varied applications. More than just numbers, this pump represents steady power in motion—an engine that translates energy into a continuous, purposeful stream.

Related Products

Sistema 25 HP Multistage Submersible Pump SP 300-09 Specifications

Sistema 25 HP multistage submersible pump SP 300-09 is powered by an 18.5 kW (25 HP) motor, giving it the strength to handle demanding jobs. It can move between 18 and 78 cubic meters of liquid per hour (300–1300 liters per minute) and works across a head range of 38 to 122 meters. This Sisterma submersible pump can operate with liquids up to 35°C and manage sand content up to 50 grams per cubic meter without issues. The motor has an insulation class of B for proper thermal performance and is protected with an IP68 rating against dust and water. The body is made from cast iron, and at 25.1 kilograms, the pump is manageable to move for its size and power.

Sistema 25 HP Multistage Submersible Pump SP 300-09

Specification Value
Power (kW) 18.5
Power (HP) 25
Flow rate (m3/h) 18-78
Flow rate (l/min) 300-1300
Head Range (m) 38-122
Maximum Liquid Temperature (°C) 35
Maximum Sand Content 50 g/m3
Insulation Class B
Protection degree IP68
Pump Body Cast iron
Weight (kg) 25.1



Sistema 25 HP Multistage Submersible Pump SP 300-09 Performance Data

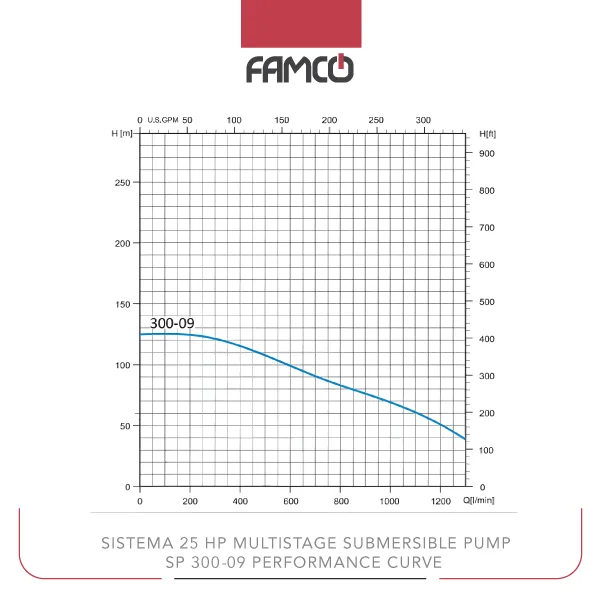

Sistema 25 HP Multistage Submersible Pump SP 300-09 Performance Curve

Flow rate (m3/h) 18 21 24 27 30 36 42 48 54 60 66 72 78
Flow rate (l/min) 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300
Head (m) 122 118 116 112 108 99 91 83 76 69 61 51 38

Sistema 25 HP Multistage Submersible Pump SP 300-09 Applications

  • Irrigation systems in agriculture
  • Industrial water transfer
  • Flood control and drainage
  • Water supply for construction sites



Sistema 25 HP Multistage Submersible Pump SP 300-09 Benefits

  • High power for demanding tasks
  • Wide flow rate range for versatility
  • Durable cast iron construction
  • Water and dust resistant with IP68 rating



Sistema 25 HP Multistage Submersible Pump SP 300-09 Price List

No. Name Price
1 Sistema 25 HP Multistage Submersible Pump SP 300-09 Price Contact us
