Sistema 25 HP Multistage Submersible Pump SP 230-12

18.5 kW (25 HP)

Single- and three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

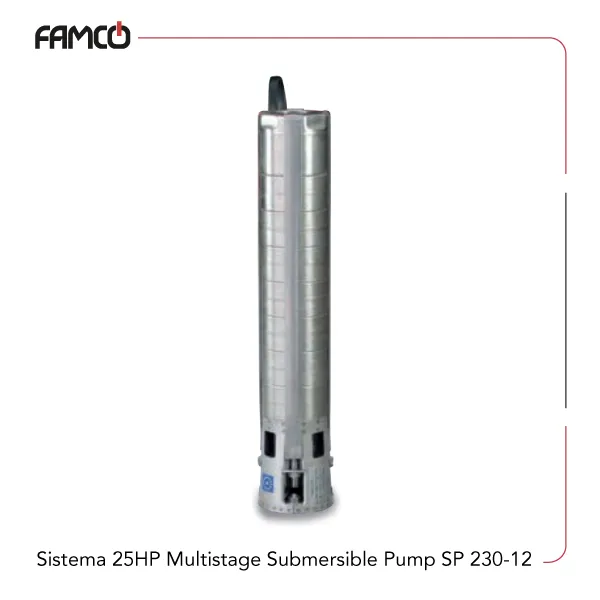

Overview of Sistema 25 HP Multistage Submersible Pump SP 230-12

Sistema 25 HP multistage submersible pump SP 230-12, driven by a 25 HP motor, is engineered to handle flows ranging from 200 to 1000 liters per minute, effortlessly adapting to varying demands. It can lift water to impressive heights between 64 and 158 meters, making it suitable for challenging applications where precise performance is key. Designed to blend power with adaptability, it transforms the movement of water into a seamless, controlled flow, bringing efficiency and reliability to every operation.

Related Products

Sistema 25 HP Multistage Submersible Pump SP 230-12 Specifications

Sistema 25 HP multistage submersible pump SP 230-12 comes with a powerful 18.5 kW (25 HP) motor, designed for demanding tasks. It handles flow rates from 200 to 1000 liters per minute (12 to 60 cubic meters per hour) and operates within a head range of 64 to 158 meters, making it suitable for high-pressure applications. The 3-inch DNM connection fits a variety of piping systems, and at 32 kilograms, this Sistema submersible pump is relatively easy to handle. It works with liquids up to 35°C and can cope with sand content up to 50 grams per cubic meter, so it’s capable of managing fluids with some solids. The motor’s insulation is class B, and its IP68 rating protects against dust and water, allowing use in outdoor or challenging conditions. The cast iron body is built to withstand mechanical stress and corrosion. This pump is ideal for industrial, agricultural, or municipal settings where consistent fluid transfer is needed.

Sistema 25HP Multistage Submersible Pump SP 230-12

Specification Value
Power (kW) 18.5
Power (HP) 25
Flow rate range (l/min) 200-1000
Flow rate range (m3/h) 12-60
Head Range (m) 64-158
DNM 3″
Weight (kg) 32
Liquid temperature 35°C
Sand content 50 g/m3
Insulation class B
Protection degree IP68
Body cast iron



Sistema 25 HP Multistage Submersible Pump SP 230-12 Performance Data

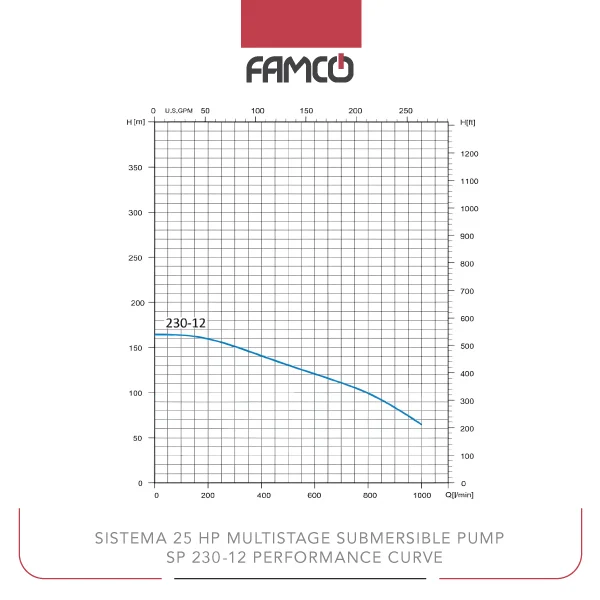

Sistema-25HP-Multistage-Submersible Pump SP 230-12 Performance Curve

Flow rate (m3/h) 12 15 18 21 24 27 30 36 42 48 54 60
Flow rate (l/min) 200 250 300 350 400 450 500 600 700 800 900 1000
Head (m) 158 155 150 145 140 135 130 120 110 98 83 64

Sistema 25 HP Multistage Submersible Pump SP 230-12 Applications

  • Water supply systems
  • Irrigation and agriculture
  • Industrial fluid transfer
  • Municipal water management



Sistema 25 HP Multistage Submersible Pump SP 230-12 Benefits

  • High power and efficiency for demanding tasks
  • Robust cast iron construction for durability
  • Wide flow and head range for versatility
  • Excellent protection against dust and water
