Sistema 25 HP Multistage Submersible Pump SP 150-21

18.5  kW (25 HP)

Single- and three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

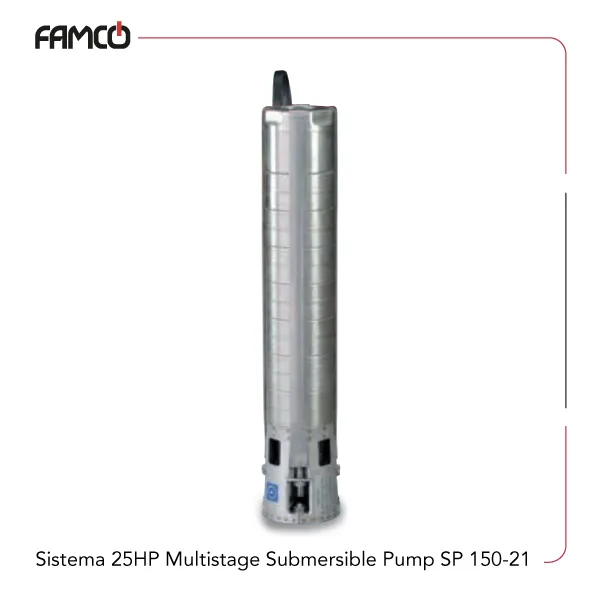

Overview of Sistema 25 HP Multistage Submersible Pump SP 150-21

Designed for efficient water management, Sistema 25 HP multistage submersible pump SP 150-21 delivers a flow ranging from 150 to 700 liters per minute (9–42 m³/h) and operates across a head range of 71 to 185 meters. Powered by a 20 HP (15 kW) motor, it provides consistent performance across a variety of applications, ensuring precise and effective water movement in demanding environments.

Related Products

Sistema 25 HP Multistage Submersible Pump SP 150-21 Specifications

Sistema 25 HP multistage submersible pump SP 150-21 is powered by an 18.5 kW (25 HP) motor, designed to efficiently move water in a variety of settings. It handles flow rates between 150 and 700 liters per minute (9 to 42 cubic meters per hour), making it adjusatble for different applications. The pump can generate heads from 80 to 226 meters, providing the pressure needed for deep well pumping. The body is made of cast iron, and the mechanical seal combines ceramic and graphite to minimize maintenance. It fits wells with a diameter of 6 inches (DN 150 mm) and can operate at depths up to 350 meters. This Sistema submersible pump is suitable for liquids up to 35°C, features insulation class B, and has an IP68 rating for use underwater and in challenging conditions. Weighing 40.6 kg, it balances power with manageability, making it suitable for both industrial and agricultural water supply systems.

Sistema 25 HP Multistage Submersible Pump

Specification Value
Power (kW) 18.5
Power (HP) 25
Flow rate (l/min) 150-700
Flow rate (m3/h) 9-42
Head Range (m) 80-226
DNM (“) 3
Weight (kg) 40.6
Maximum immersion depth (mt) 350
Liquid temperature (°C) 35
Insulation class B
Protection degree IP68
Body Cast iron
Mechanical seal ceramic/graphite
Suitable for 6″ deep wells (DN 150 mm)

Sistema 25 HP Multistage Submersible Pump SP 150-21 Performance Data

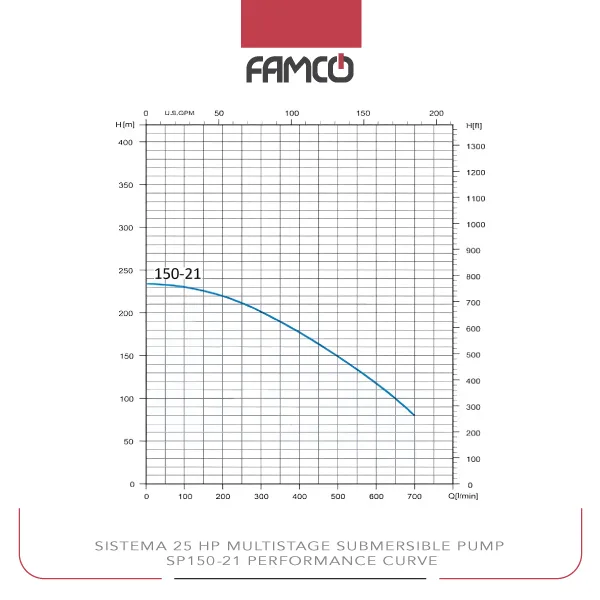

Sistema 25HP Multistage Submersible Pump Performance Curve

Flow rate (m3/h) 9 12 15 18 21 24 27 30 33 36 39 42
Flow rate (L/min) 150 200 250 300 350 400 450 500 550 600 650 700
Head (m) 226 220 212 202 190 177 164 149 134 117 100 80

Sistema 25 HP Multistage Submersible Pump SP 150-21 Applications

  • Deep well water extraction
  • Irrigation systems for agriculture
  • Industrial water supply
  • Municipal water management



Sistema 25 HP Multistage Submersible Pump SP 150-21 Benefits

  • High efficiency with powerful motor
  • Durable cast iron construction
  • Suitable for deep wells up to 350 meters
  • Reliable sealing with ceramic/graphite seal



Sistema 25 HP Multistage Submersible Pump SP 150-21 Price List

No. Name Price
1 Sistema 25 HP Multistage Submersible Pump SP 150-21 Price Contact us
