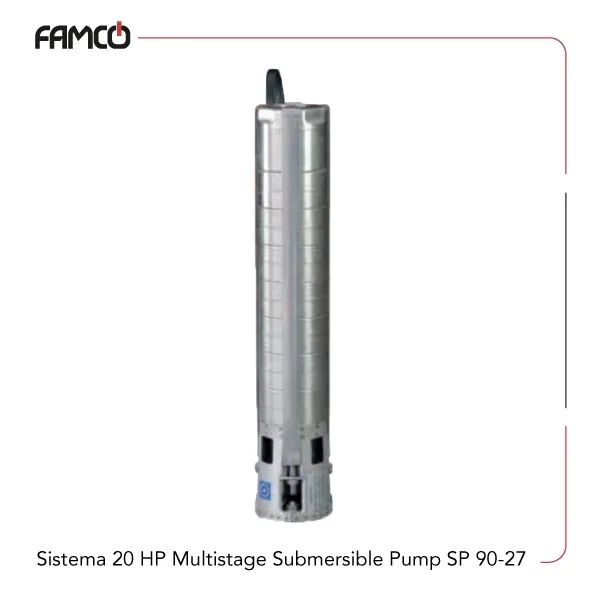

Sistema 20 HP Multistage Submersible Pump SP 90-27 Specifications
Sistema 20 HP multistage submersible pump SP 90-27 features a powerful 15 kW (20 HP) motor, capable of handling a wide flow rate range from 50 to 383 liters per minute, or 3 to 23 cubic meters per hour. It can operate at a head height between 128 and 291 meters, making it suitable for various high-demand applications. This Sistema submersible pump body is constructed from durable cast iron, ensuring longevity and resistance to harsh environments. The motor shaft is made of stainless steel AISI 304, providing corrosion resistance and strength. It supports a maximum immersion depth of 350 meters, allowing flexible installation options. The device is designed to handle liquids with a maximum temperature of 35°C and can tolerate sand content up to 50 g/m3. Its insulation class is IP68, offering excellent protection against dust and water ingress, ideal for submerged or outdoor use. The pump weighs approximately 42.7 kg, making it sturdy yet manageable for installation and maintenance.
| Specification | Value |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Flow rate range (l/min) | 50-383 |
| Flow rate range (m3/h) | 3-23 |
| Head range (m) | 128-291 |
| DNM | 2″½ |
| Weight (kg) | 42.7 |
| Maximum immersion depth (mt) | 350 |
| Max Liquid temperature (°C) | 35 |
| Sand content (g/m3) | 50 |
| Insulation class | IP68 |
| Body | Cast iron |
| Motor shaft | stainless steel AISI 304 |

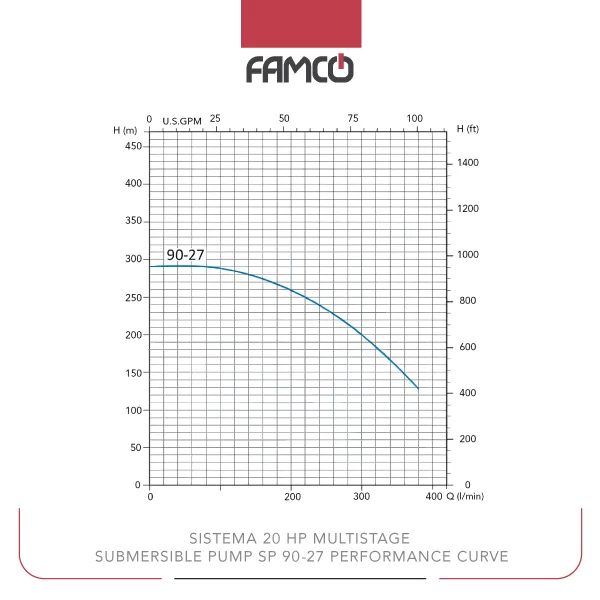

Sistema 20 HP Multistage Submersible Pump SP 90-27 Performance Curve
| Flow rate (l/min) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| Flow rate (m3/h) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| Head (m) | 291 | 288 | 277 | 259 | 234 | 200 | 158 | 128 |
Sistema 20 HP Multistage Submersible Pump SP 90-27 Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Deep well water extraction
- High-rise building water supply
Sistema 20 HP Multistage Submersible Pump SP 90-27 Benefits
- High power for demanding tasks
- Durable cast iron construction
- Corrosion-resistant stainless steel shaft
- Excellent protection with IP68 insulation
Sistema 20 HP Multistage Submersible Pump SP 90-27 Price List
| No. | Name | Price |
| 1 | Sistema 20 HP Multistage Submersible Pump SP 90-27 Price | Contact us |
