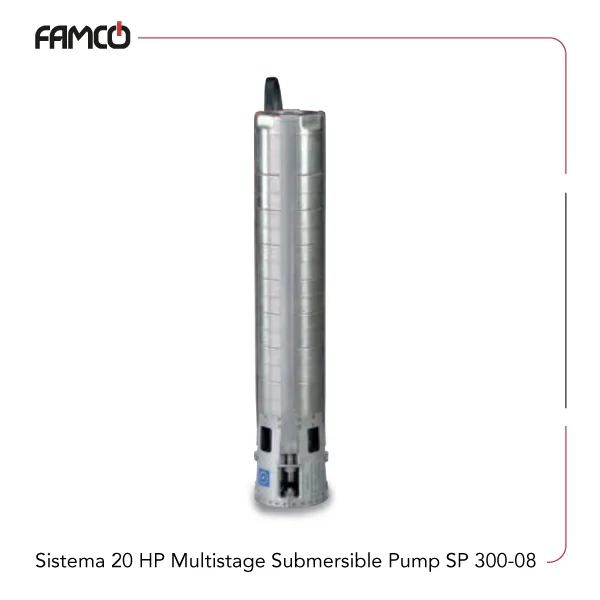

Sistema 20 HP Multistage Submersible Pump SP 300-08

15 kW (20 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Sistema 20 HP Multistage Submersible Pump SP 300-08

With 15 kW of power (20 HP) driving its core, Sistema multistage submersible pump SP 300-08 is designed to move water with steady confidence, delivering a flow range of 18–78 m³/h (300–1300 L/min). It adapts to varying demands, whether pushing gently at lower volumes or surging with greater force when needed. With a head range spanning 33 to 106 meters, it bridges the gap between depth and pressure, transforming raw energy into a seamless flow that feels almost effortless. This is not just a machine; it’s a steady hand beneath the surface, working quietly to keep water in motion where it’s needed most.

Related Products

Sistema 20 HP Multistage Submersible Pump SP 300-08 Specifications

Sistema 20 HP multistage submersible pump SP 300-08 is powered by a 15 kW (20 HP) motor, giving it the strength needed for demanding jobs. It can move between 18 and 78 cubic meters of liquid per hour (300 to 1300 liters per minute), making it adaptable for different transfer requirements. The head range of 33 to 106 meters allows it to deliver strong pressure across various setups. It’s built to handle liquids up to 35°C and can cope with sand content up to 50 grams per cubic meter, so it’s ready for tough working conditions. The body is made from cast iron, and it comes with insulation class B for safe operation. With an IP68 rating, this Sistema submersible pump is fully protected against dust and water. Weighing 22.9 kg, it’s light enough to move when needed, yet solid enough for permanent installation in industrial or agricultural systems.

Sistema 20 HP Multistage Submersible Pump SP 300-08

Specification Value
Power (kW) 15
Power (HP) 20
Flow rate (m3/h) 18-78
Flow rate (l/min) 300-1300
Head Range (m) 33-106
Maximum Liquid Temperature (°C) 35
Maximum Sand Content 50 g/m3
Insulation Class B
Protection degree IP68
Pump Body Cast iron
Weight (kg) 22.9

Sistema 20 HP Multistage Submersible Pump SP 300-08 Performance Data

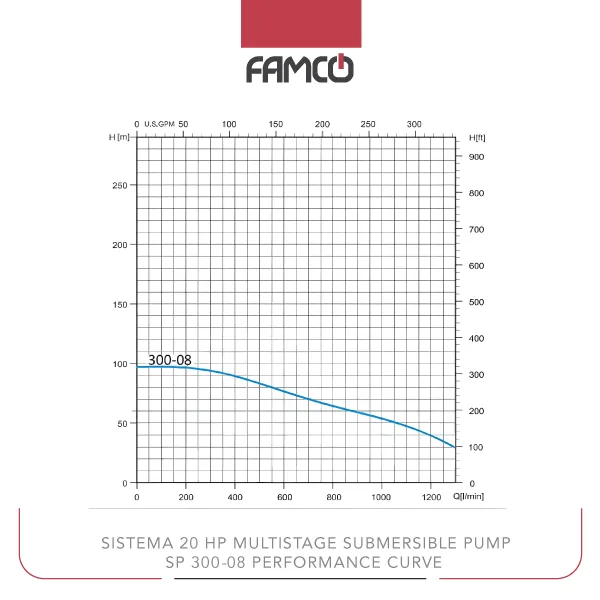

Sistema 20HP Multistage Submersible Pump SP 300-08 Performance Curve

Flow rate (m3/h) 18 21 24 27 30 36 42 48 54 60 66 72 78
Flow rate (l/min) 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300
Head (m) 106 104 101 97 94 87 80 73 67 60 53 44 33

Sistema 20 HP Multistage Submersible Pump SP 300-08 Applications

  • Water supply systems
  • Irrigation in agriculture
  • Drainage and flood control
  • Industrial fluid transfer



Sistema 20 HP Multistage Submersible Pump SP 300-08 Benefits

  • High power for demanding tasks
  • Durable cast iron construction
  • Wide flow and head ranges
  • Water and dust resistant (IP68)



Sistema 20 HP Multistage Submersible Pump SP 300-08 Price List

No. Name Price
1 Sistema 20 HP Multistage Submersible Pump SP 300-08 Price Contact us
