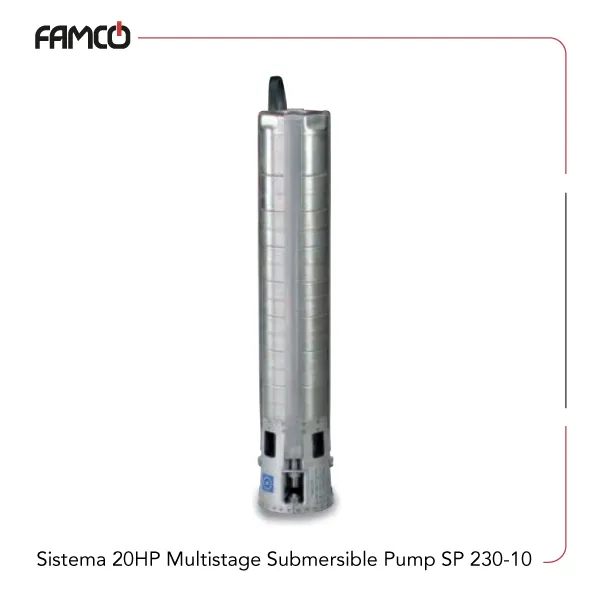

Sistema 20 HP Multistage Submersible Pump SP 230-10 Specifications
Sistema multistage submersible pump SP 230-10 is equipped with a 15 kW (20 HP) motor capable of handling flow rates from 200 to 1000 liters per minute, or 12 to 60 cubic meters per hour. It operates efficiently within a head range of 53 to 133 meters, making it suitable for a variety of demanding tasks. This Sistema submerible pump body is made of cast iron and can handle tough conditions. With an IP68 rating, it is fully protected against dust and can be submerged in water, which makes it a good option for outdoor or underwater use. The motor has insulation class B, giving it solid thermal protection. Weighing around 27.4 kg, the pump is surprisingly portable for its power. It can handle liquids up to 35°C and manage sand content up to 50 grams per cubic meter, so it works well with water that isn’t completely clean. The 3-inch inlet diameter supports significant flow, allowing the pump to move large volumes effectively. Overall, this pump is designed for applications where high performance in challenging environments is needed.
| Specification | Value |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Flow rate range (l/min) | 200-1000 |
| Flow rate range (m3/h) | 12-60 |
| Head Range (m) | 53-133 |
| DNM | 3″ |
| Weight (kg) | 27.4 |
| Liquid temperature | 35°C |
| Sand content | 50 g/m3 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | cast iron |

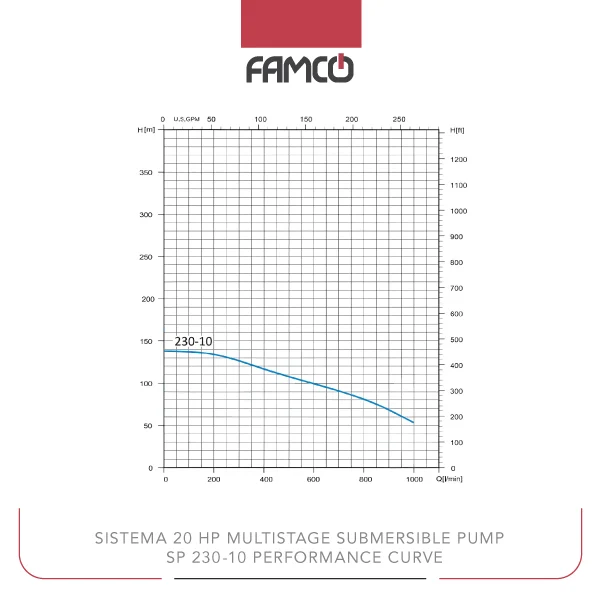

Sistema 20 HP Multistage Submersible Pump SP 230-10 Performance Data
| Flow rate (m3/h) | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 36 | 42 | 48 | 54 | 60 |
| Flow rate (l/min) | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) | 133 | 130 | 127 | 122 | 117 | 112 | 107 | 98 | 90 | 80 | 67 | 53 |
Sistema 20 HP Multistage Submersible Pump SP 230-10 Applications
- Municipal water supply systems
- Irrigation and agricultural water transfer
- Drainage and flood control
- Industrial water pumping
Sistema 20 HP Multistage Submersible Pump SP 230-10 Benefits
- High power for demanding tasks
- Durable cast iron construction
- Waterproof with IP68 protection
- Handles sand and impurities efficiently
Sistema 20 HP Multistage Submersible Pump SP 230-10 Price List
| No. | Name | Price |
| 1 | Sistema 20 HP Multistage Submersible Pump SP 230-10 Price | Contact us |
