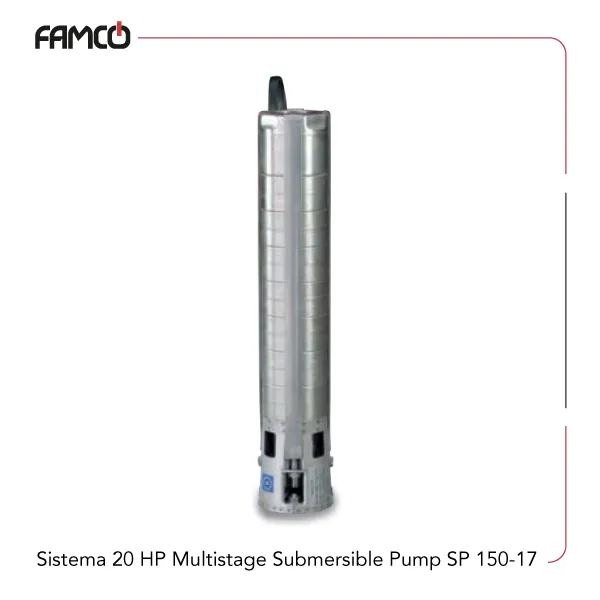

Sistema 20 HP Multistage Submersible Pump SP 150-17 Specifications
Sistema 20 HP multistage submersible pump SP 150-17 is powered by a 15 kW (20 HP) motor, built to handle demanding water transfer tasks. It delivers a flow rate between 150 and 700 liters per minute (9–42 cubic meters per hour), making it versatile for different applications. The pump can reach a head height of 71 to 185 meters, allowing it to lift water from significant depths. Constructed from cast iron, the pump’s body can withstand tough environments. It features a mechanical seal made of ceramic and graphite, which reduces maintenance needs. This Sistema submersible pump can be submerged up to 350 meters, making it suitable for deep wells, and it can handle liquids up to 35°C. Its insulation class B and IP68 protection rating ensure safe operation even when fully submerged. With a 3-inch DNM size, the pump fits standard well fittings, including 6-inch deep wells with a 150 mm diameter. Its combination of high flow capacity and deep well performance makes it suitable for water supply, irrigation, and industrial pumping tasks.
| Specification | Value |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Flow rate (l/min) | 150-700 |
| Flow rate (m3/h) | 9-42 |
| Head Range (m) | 71-185 |
| DNM (“) | 3 |
| Weight (kg) | 33.8 |
| Maximum immersion depth (mt) | 350 |
| Liquid temperature (°C) | 35 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Mechanical seal | ceramic/graphite |
| Suitable for | 6″ deep wells (DN 150 mm) |

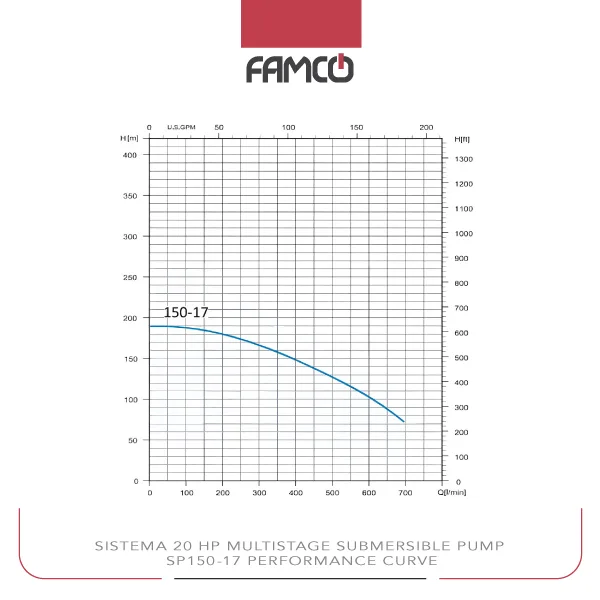

Sistema 20 HP Multistage Submersible Pump SP 150-17 Performance Data
| Flow rate (m3/h) | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 42 |
| Flow rate (L/min) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| Head (m) | 185 | 180 | 173 | 167 | 158 | 148 | 138 | 127 | 116 | 103 | 88 | 71 |
Sistema 20 HP Multistage Submersible Pump SP 150-17 Applications
-
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Sistema 20 HP Multistage Submersible Pump SP 150-17 Benefits
- High power and flow capacity for demanding tasks
- Durable cast iron construction ensures longevity
- Suitable for deep wells up to 350 meters
- IP68 protection for outdoor and submerged use
