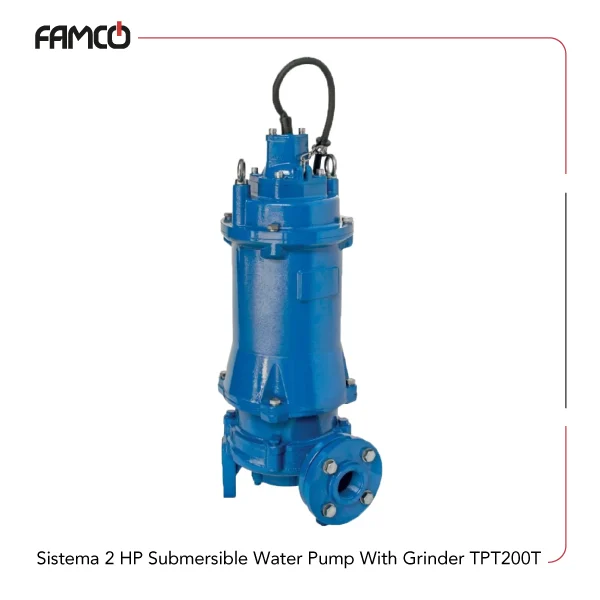

Sistema 2 HP Submersible Sewage Pump With Grinder TPT200T Specifications
Sistema 2 HP submersible sewage pump with grinder TPT200T operates with a power of 1.5 kW (2 HP) and draws a current of 3.7 amperes. It can handle a maximum flow rate of 18 cubic meters per hour, which is equivalent to 300 liters per minute. This Sistema submersible sewage pump delivers a maximum head of 18 meters, making it suitable for various water transfer tasks. It is designed to work with liquids up to 35°C for home applications, complying with EN 60335-2-41 standards, and can handle liquids up to 40°C for other uses. The maximum immersion depth is 10 meters, and it requires a minimum suction level of 125 mm to operate efficiently. The device features an insulation class F, providing good thermal resistance, and is protected with an IP 68 rating, ensuring complete protection against dust and water ingress. The motor body and impeller are made of durable cast iron, while the shaft with rotor is crafted from stainless steel AISI 304, offering corrosion resistance and longevity. This pump is ideal for residential, industrial, or agricultural water transfer, thanks to its robust construction and high performance capabilities.
| Specification | Value |
| Phase | Three-phase |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Current (A) | 3.7 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum Flow rate (l/min) | 300 |
| Maximum delivery head (m) | 18 |
| Liquid temperature up to | 35°C (home use according to EN 60335-2-41) |
| Temperature max. liquid | 40°C (other uses) |
| Maximum immersion depth | 10 meters |
| Min. suction level | 125 mm |
| Insulation Class | F |
| Protection | IP 68 |
| Motor body | Cast Iron |
| Impeller | Cast Iron |
| Shaft with rotor | Stainless Steel AISI 304 |

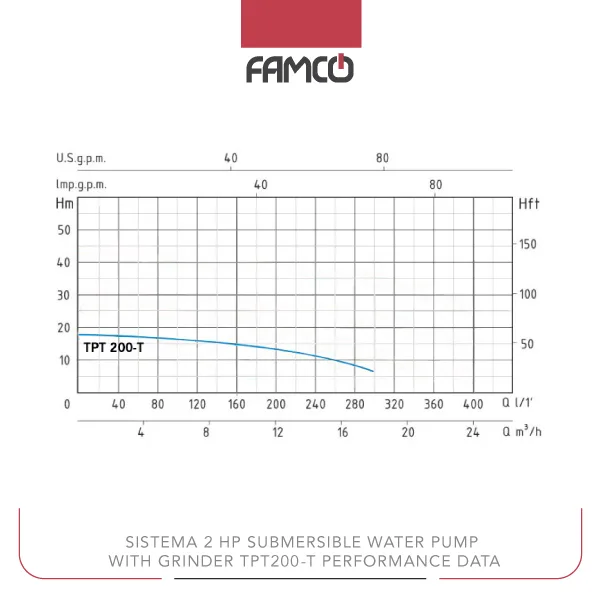

Sistema 2 HP Submersible Sewage Pump With Grinder TPT200T Performance Data
| m3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| H (m) | 18 | 17 | 16 | 15 | 13 | 10.5 | 7 |

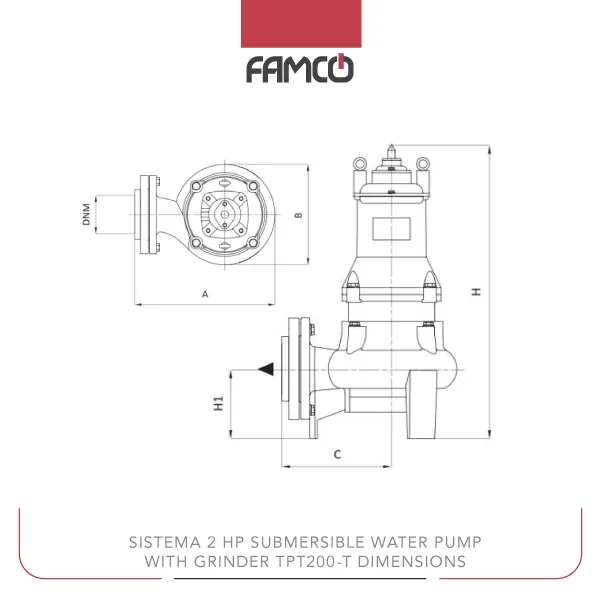

Sistema 2 HP Submersible Sewage Pump With Grinder TPT200T Dimensions
| A | B | C | H | H1 | DNM | Weight |
| 245 | 200 | 150 | 495 | 525 | 1 ½ | 32 |
Sistema 2 HP Submersible Sewage Pump With Grinder TPT200T Applications
- Irrigation systems in agriculture
- Water transfer in industrial facilities
- Residential water supply and drainage
- Deep well water extraction
Sistema 2 HP Submersible Sewage Pump With Grinder TPT200T Benefits
- High durability with cast iron construction
- Efficient performance with high flow rates
- Corrosion-resistant stainless steel shaft
- Suitable for various environments with IP 68 protection
Sistema 2 HP Submersible Sewage Pump With Grinder TPT200T Price List
| No. | Name | Price |
| 1 | Sistema 2 HP Submersible Sewage Pump With Grinder TPT200T Price | Contact us |
